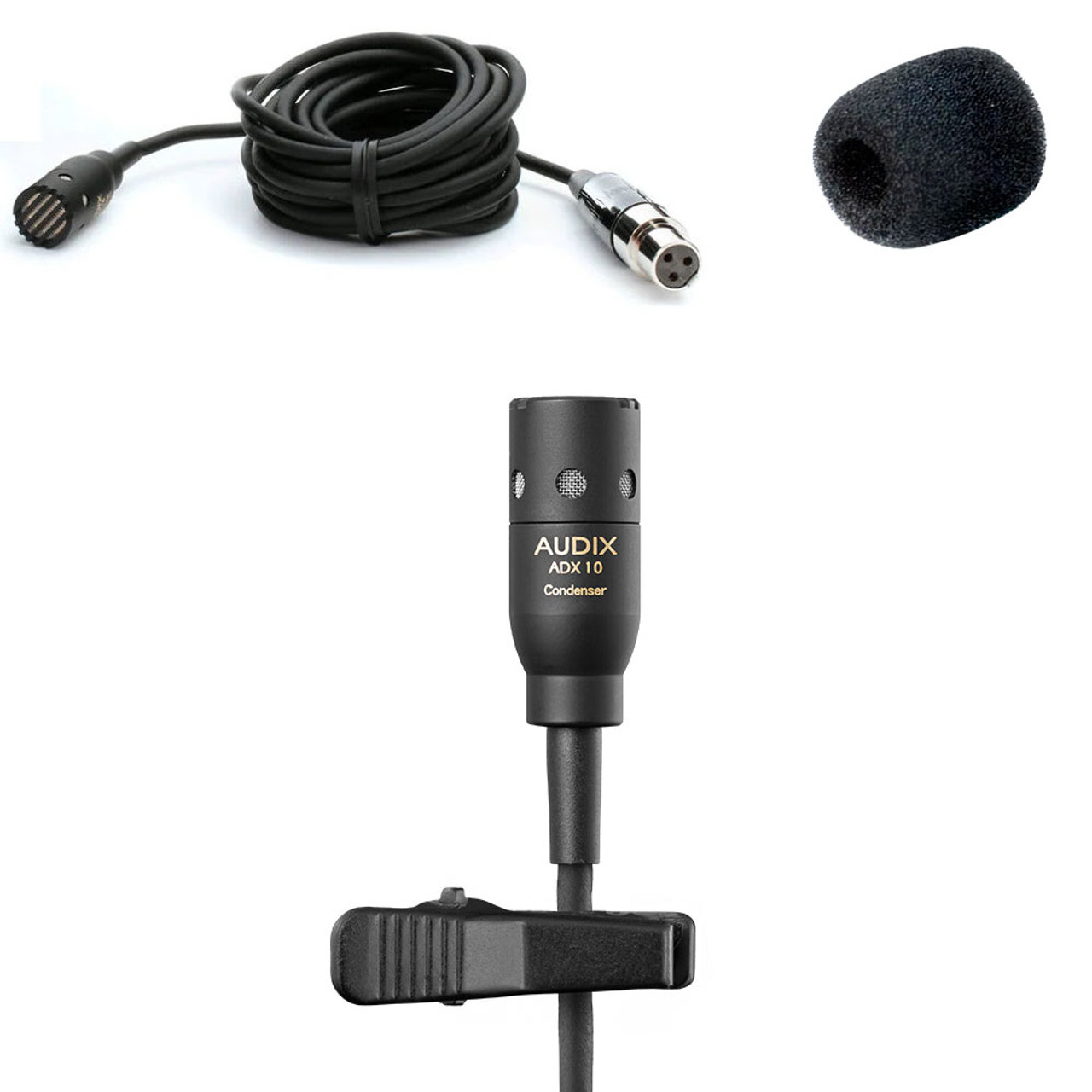

Audix ADX-ADX10 Minature Lavalier Condenser Microphone

The ADX10 is a Miniaturized condenser microphone designed for lavalier applications such as speech, presentation, and theatrical production. The ADX10 has the ability to accurately capture and reproduce vocals from a comfortable distance of 4"- 8". This mic is clear, resistant to feedback, and easy to use.

Designed with a uniformly controlled Cardioid polar pattern, the ADX10 helps to isolate the area or section being miked from other vocals or instruments on stage. The ADX10 has a smooth, accurate frequency range of 50 Hz – 18 kHz. This mic is lightweight, low profile, and has a natural sound with an exceptional sound response.

Primarily for use with Audix wireless systems, the ADX10 Cardioid condenser microphone includes a tie-clip and a 3? attached cable terminating to a mini-XLRf connector.

What's in the box?
1x ADX10 Vocal Microphone
1x MC10L tie clip
1x WS10 external foam windscreen
1x P1 carrying pouch

Transducer Type
Pre-polarized Condenser
Frequency Response
50Hz – 18kHz
Polar Pattern
Cardioid
Output Impedance
250 Ohms
Sensitivity
5 mV/Pa @1k
Equivalent Noise Level
Signal to Noise Ratio
>65 dB
Maximum SPL
≥120 dB
Power Requirements
9-52 V phantom
Connector
Shielded 3’ terminating to a miniature 3 pin Female XLR connector
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
Materials / Finish
Machined Brass / Black Finish
Weight
21 g
Length
25 mm

• Miniaturised design ideal for lavalier applications
• Captures vocals accurately from 4 to 8 inches
• Cardioid polar pattern isolates sound efficiently
• Smooth frequency range from 50Hz to 18kHz
• Lightweight, low-profile with natural sound
• Compatible with Audix wireless systems
• Includes tie-clip, windscreen, and pouch.
