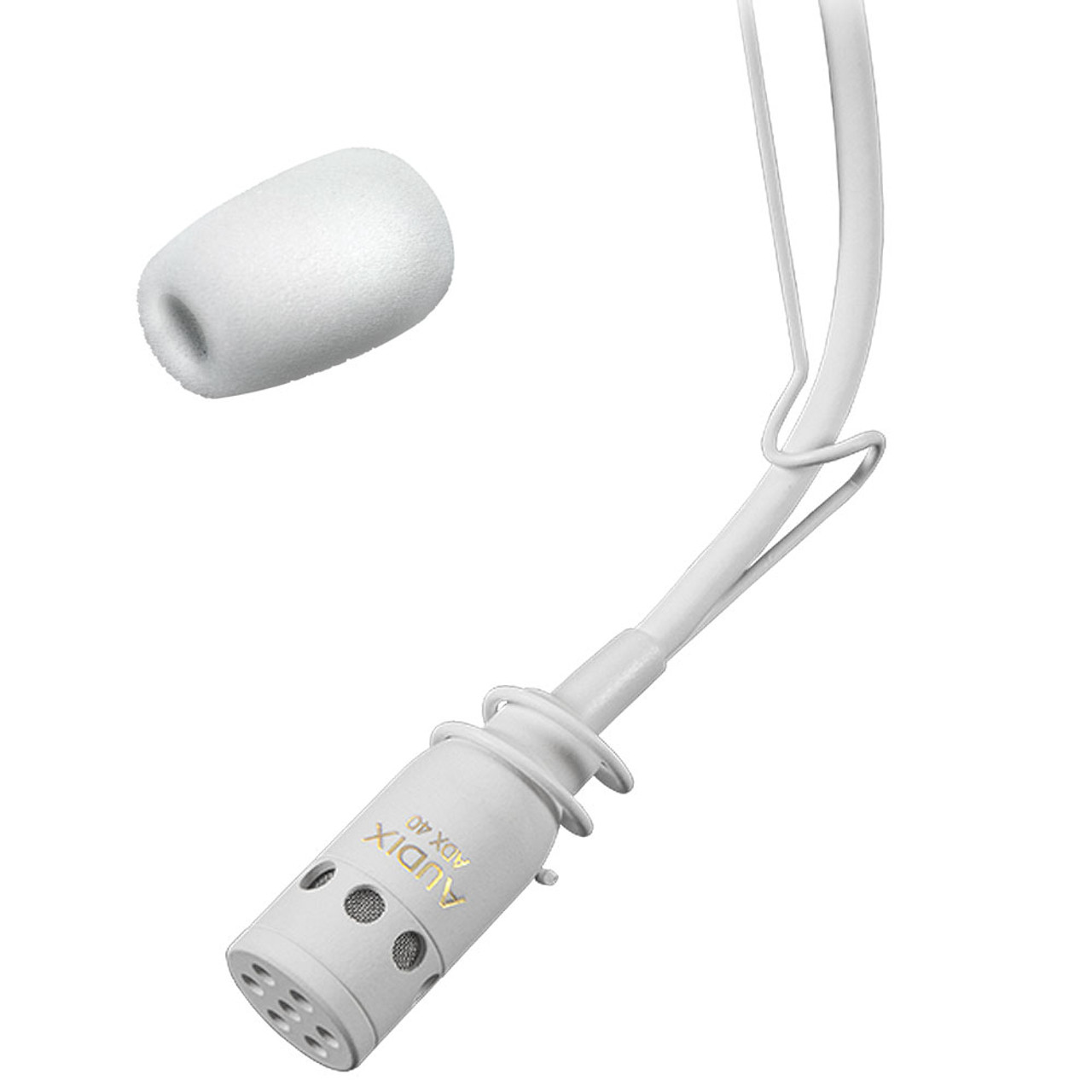

Audix ADX-ADX40W-C Hanging Choir Microphone - White

The ADX40 is a Miniaturized condenser microphone designed to hang from an overhead position for applications such as group vocals, choir, theatrical production, and room ambiance.
Having a uniformly controlled Cardioid polar pattern, the ADX40 helps isolate the area or section being miked from other vocals or instruments on stage. The ADX40 is also available in a Hypercardioid polar pattern for tighter pick-up control. With a Wide Frequency range of 40 Hz – 20 kHz, the ADX40 provides natural sound with an exceptional sound response.

The ADX40 miniature hanging condenser microphone is supplied with an attached 30? shielded cable, external windscreen, wire hanger for positioning, and phantom power adapter. 9 – 52 V phantom required.

What's in the box?
1x ADX40 Miniature Overhead Condenser Microphone in White
1x APS910 Cylindrical Preamplifier
1x HANGER40 Wire Hanger
1x P1 Carrying Pouch
1x 30? Attached Shielded Cable
1x WS20 External Windscreen

Transducer Type
Condenser
Frequency Response
40 Hz – 20 kHz
Polar Pattern
Cardioid Hypercardioid (ADX40HC)
Output Impedance
250 ohms balanced
Sensitivity
5 mV / Pa @ 1k
Equivalent Noise Level
29 dB (A weighted)
Signal to Noise Ratio
65 dB
Maximum SPL
≥130 dB
Power Requirements
9 – 52 Volts phantom
Cable/Connector
Shielded 30’ terminating to a miniature 3 pin Female XLR connector
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
Materials / Finish
Brass / Black E-Coat
Weight
110 g
Length
30 mm

• Miniature condenser mic for overhead use
• Cardioid and hypercardioid polar patterns available
• Wide frequency response of 40 Hz – 20 kHz
• Supplied with 30' shielded cable and windscreen
• Requires 9-52V phantom power for operation
• Constructed with durable brass and black e-coat finish
