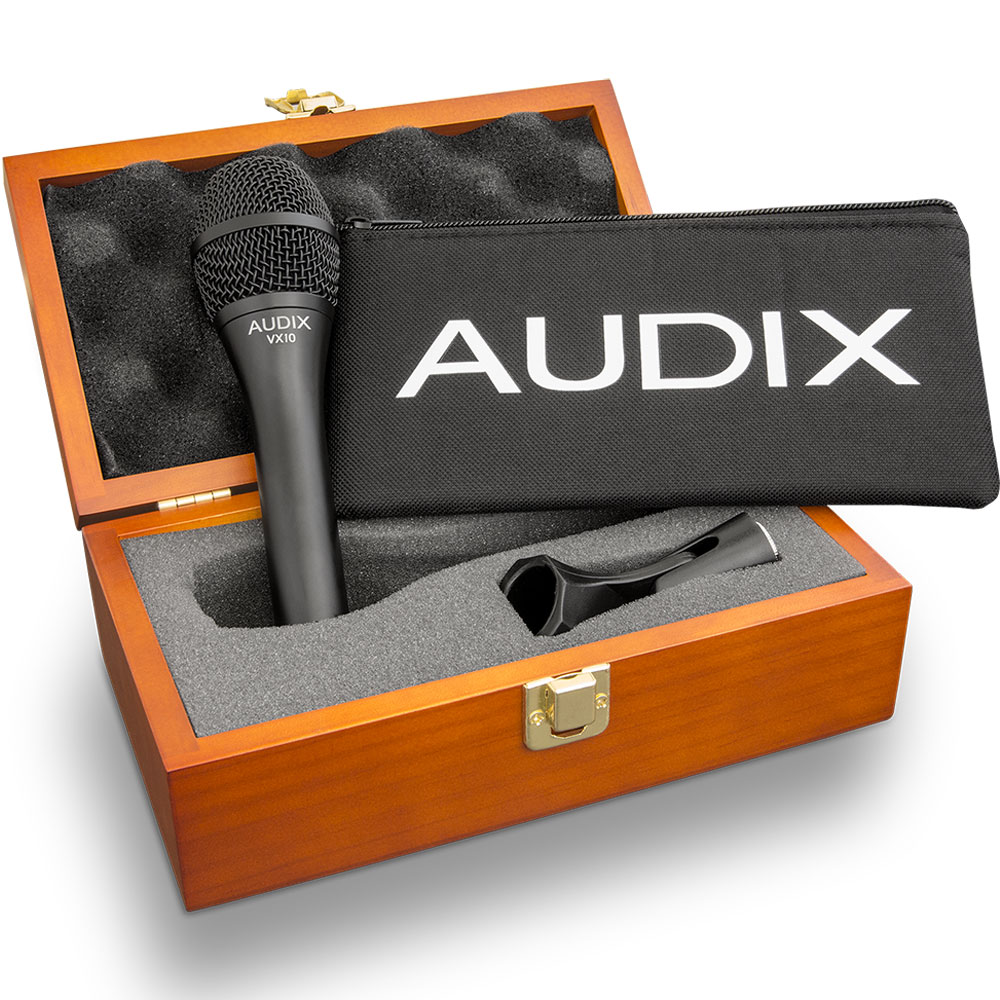

Audix ADX-VX10 Elite Condenser Vocal Microphone in wooden box

The VX10 condenser vocal microphone was designed to set new performance standards for live sound and broadcast applications. With a uniformly controlled frequency response from 40 Hz – 20 kHz, the VX10 is highly sensitive to transient response and will reproduce vocals and speech with exceptional detail and realism.

The VX10 has a Cardioid polar pattern which helps isolate vocals. This mic includes a 21 mm gold vapor capsule and a multi-stage internal pop filter. It is also available in a low output model (VX10LO) for greater control with loud stage volumes or extremely powerful vocalists.

Aside from vocals, the VX10 Cardioid condenser microphone will capture acoustic instruments such as guitars, woodwinds, brasses, percussion toys, drum overheads, hi-hats, and pianos.

What's in the Box?
1x VX10 Vocal Microphone
1x Lined Wooden box
1x MC1 Microphone Clip
1x P1 Carrying pouch

Designed, assembled, and tested by Audix in the USA.

Specifications:
Transducer Type Condenser
Frequency Response 40 Hz – 20 kHz
Polar Pattern Cardioid
Output Impedance 250 ohms
Sensitivity VX10 – 24 mV / Pa @ 1k VX10LO – 4 mV / Pa @ 1k
Equivalent Noise Level 19 dB (A-weighted)
Signal to Noise Ratio 75 dB
Off Axis Rejection >20 dB
Maximum SPL ≥138 dB (w/ -10 pad)
Power Requirements 48-52 V
Connector 3-pin XLRm
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Materials / Finish Zinc Alloy & Machined Brass / Black Finish
Weight 310 g
Length 180 mm

• Uniform frequency response from 40 Hz to 20 kHz
• Cardioid polar pattern isolates vocals effectively
• Highly sensitive to transient response for realism
• Includes 21 mm gold vapor capsule and pop filter
• Captures vocals and acoustic instruments precisely
• Maximum SPL of 138 dB with -10 pad
• Designed and tested in the USA by Audix
