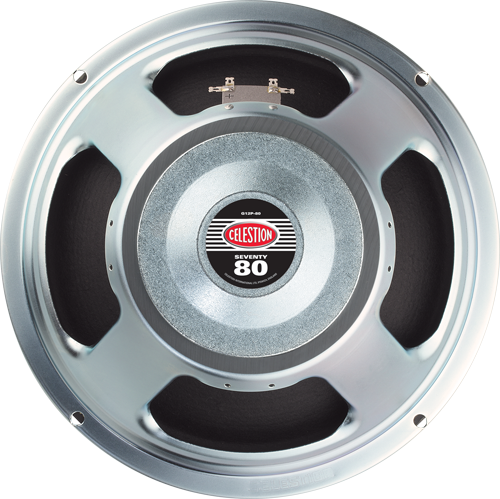

Celestion Original Seventy 80 12" 80W Speaker 16OHM

One of our best sellers, this speaker meets the expanded frequency range often requested by the new generation of amp manufacturers.

The Seventy 80 is detailed and crisply defined, with a tightly controlled low-end and punchy, aggressive upper mid-range. The top-end response is also subtly increased. Used singly, in pairs or quartets – it is capable of reproducing a wide range of sounds and styles whilst adding the undeniable Celestion character to any amp.

General Specifications

• Nominal diameter 12", 305mm
• Power rating 80Wrms
• Nominal impedance Available 8Ω or 16Ω
• Sensitivity 98dB
• Chassis type Pressed steel
• Voice coil diameter 1.75", 44.5mm
• Voice coil material Round copper
• Magnet type Ceramic
• Magnet weight 31oz, 0.88kg
• Frequency range 80-5000Hz
• Resonance frequency, Fs 85Hz
• DC resistance, Re Available 6.1Ω or 10.41Ω

Mounting Information

• Cut-out diameter 11.1", 283mm
• Diameter 12.2", 309mm
• Magnet structure diameter 5.3", 134mm
• Mounting slot dimensions 0.31", 7.9mm Ø
• Mounting slot PCD 11.7", 297mm
• Number of mounting slots 4
• Overall depth 4.7", 119mm
• Unit weight 6.8lb, 3.1kg

• Expanded frequency range for diverse sound styles
• Tightly controlled low-end enhances sound clarity
• Aggressive upper mid-range for punchy tones
• Subtly increased top-end response for crispness
• 12-inch speaker with 80W power rating
• Ceramic magnet for robust performance
• Available in 8Ω or 16Ω impedance options
• 98dB sensitivity for efficient sound output
