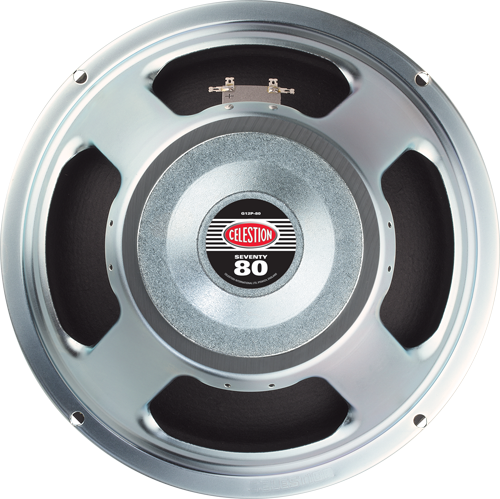

Celestion Original Seventy 80 12" 80W Speaker 8OHM

One of our best sellers, this speaker meets the expanded frequency range often requested by the new generation of amp manufacturers.

The Seventy 80 is detailed and crisply defined, with a tightly controlled low-end and punchy, aggressive upper mid-range. The top-end response is also subtly increased. Used singly, in pairs or quartets – it is capable of reproducing a wide range of sounds and styles whilst adding the undeniable Celestion character to any amp.

General Specifications

• Nominal diameter 12", 305mm
• Power rating 80Wrms
• Nominal impedance Available 8Ω or 16Ω
• Sensitivity 98dB
• Chassis type Pressed steel
• Voice coil diameter 1.75", 44.5mm
• Voice coil material Round copper
• Magnet type Ceramic
• Magnet weight 31oz, 0.88kg
• Frequency range 80-5000Hz
• Resonance frequency, Fs 85Hz
• DC resistance, Re Available 6.1Ω or 10.41Ω

Mounting Information

• Cut-out diameter 11.1", 283mm
• Diameter 12.2", 309mm
• Magnet structure diameter 5.3", 134mm
• Mounting slot dimensions 0.31", 7.9mm Ø
• Mounting slot PCD 11.7", 297mm
• Number of mounting slots 4
• Overall depth 4.7", 119mm
• Unit weight 6.8lb, 3.1kg

• Expanded frequency range for versatile sound
• Tightly controlled low-end for punchy bass
• Aggressive upper mid-range enhances clarity
• Subtly increased top-end response
• 12-inch diameter with 80W power rating
• 8 Ohm impedance for optimal performance
• Ceramic magnet for reliable sound quality
• 98dB sensitivity for loud and clear output
