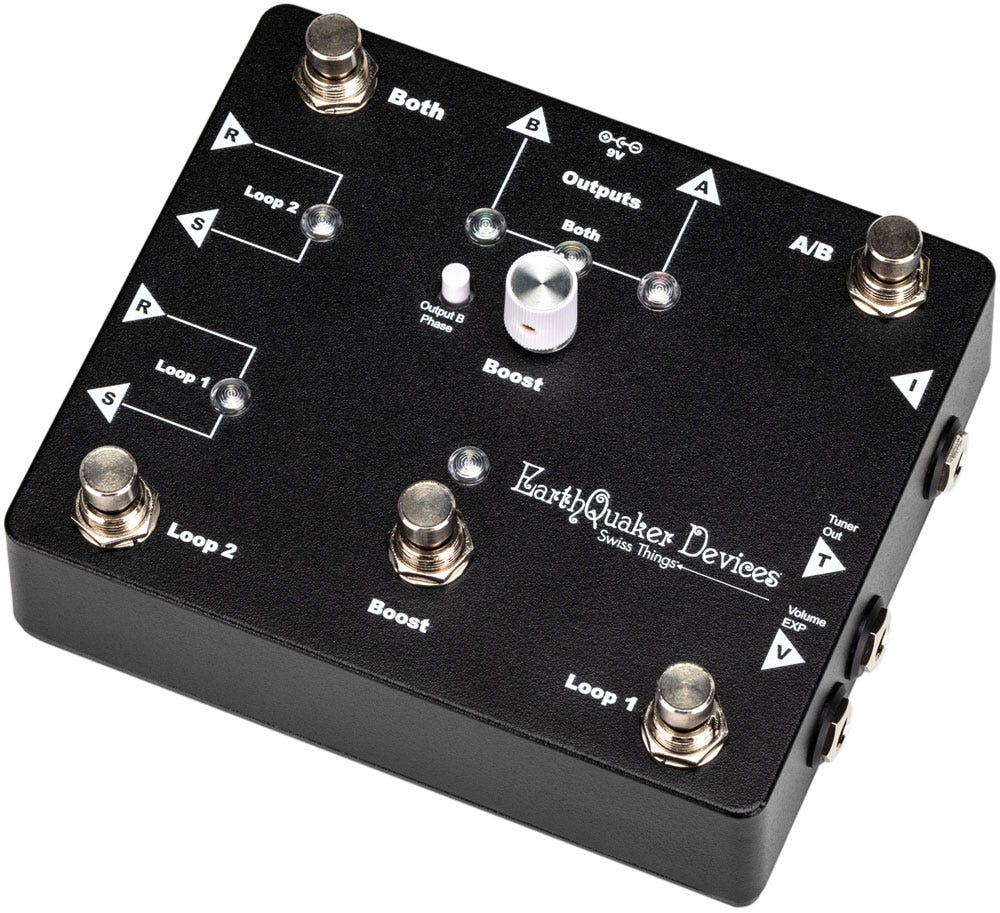

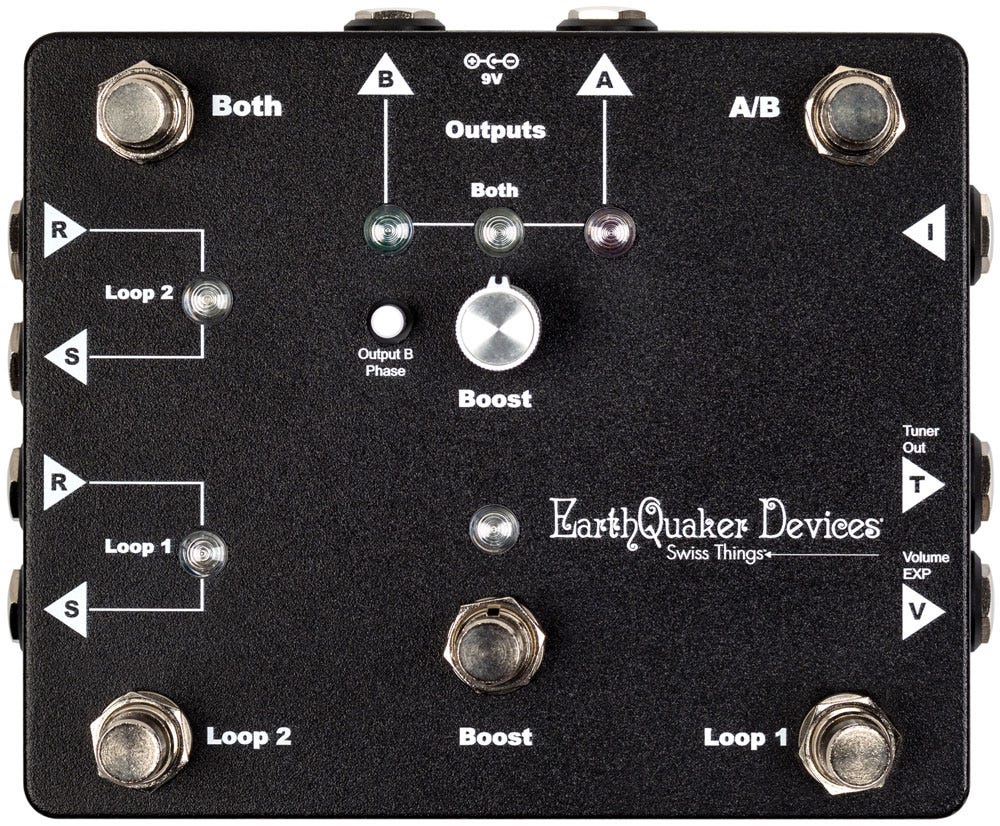

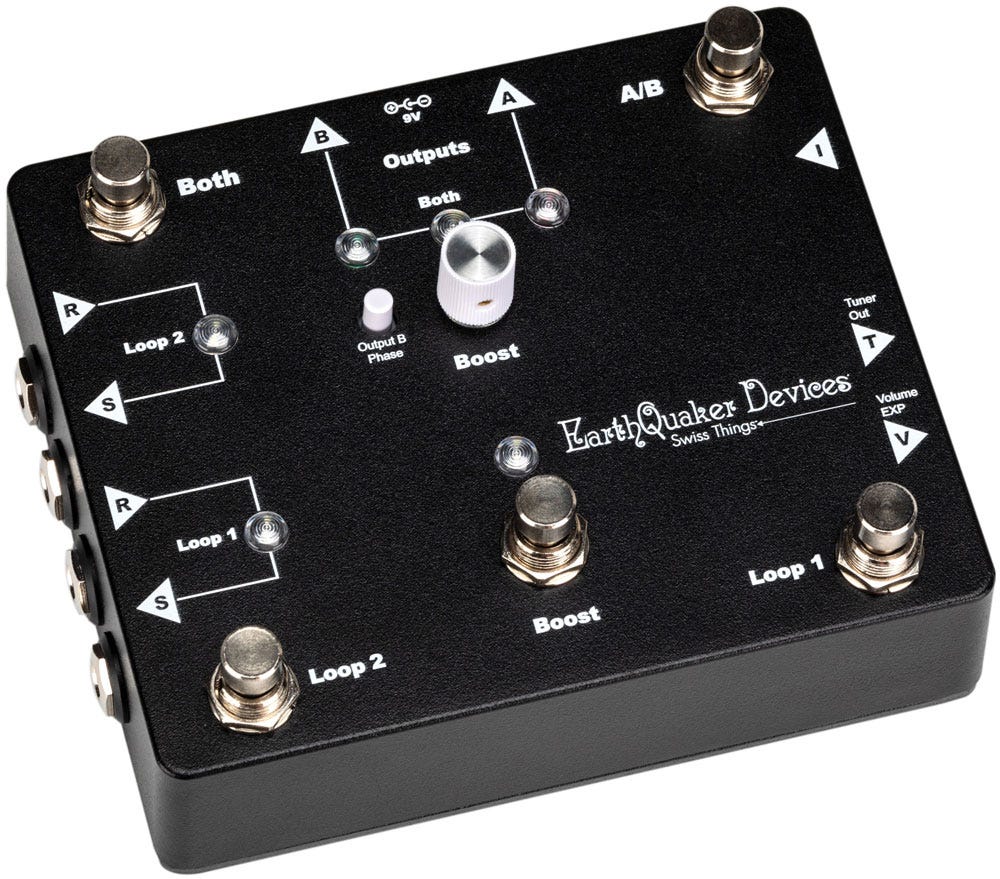

EarthQuaker Devices Swiss Things Pedalboard Reconciler

Organise your pedalboard

Swiss Things is an all-in-one pedalboard reconciliation solution designed to really tie your rig together without resorting to some confusing loop-switching contraption bigger than a meatball party sub that eats up the entire bottom row of your board and kind-of-but-not-quite does what you need it to do.

Combines two true-bypass Flexi-Switch™ enabled effects loops, a Flexi-Switch™ AB-Y box with transformer isolation between outputs, a buffered tuner output, 20dB of clean boost, an expression pedal output for volume control and a quiet, high headroom output buffer into a compact pedalboard-friendly signal routing junction box.

• Use as many pedals as you’d like without tone-suck
• Quickly and easily bypass all pedals with one click
• Use Flexi-Switch™ Technology with every pedal in your setup
• Eliminate volume pedal tone-suck by using any expression pedal to control volume
• Use multiple amps without phase issues, ground loops, or extra noise
• Improves pedalboard cable management
• Shortens cable runs to reduce capacitance which causes tone loss
• Keeps all inputs and outputs in one convenient location
• True bypass
• Silent relay-based switching
• All-analog signal path
• Lifetime guarantee

Measures: 4.75″ x 5.65″ x 2.25″ with knobs
Current Draw: 40mA
Input Impedance: 1M Ohm
Output Impedance: 1K Ohm
Flexi-Switching
This device features Flexi-Switch™ Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

• Compact design for easy pedalboard integration
• Includes two Flexi-Switch™ enabled effects loops
• AB-Y box with transformer isolation for clarity
• Buffered tuner output and 20dB clean boost
• Expression pedal output for volume control
• Use multiple amps without phase or noise issues
• Silent relay-based switching with true bypass
• All-analog signal path for pure sound quality
