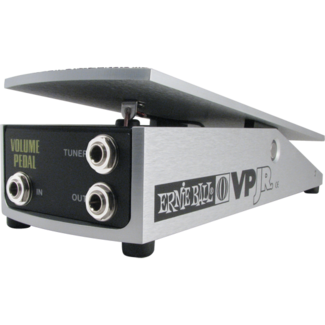

Ernie Ball Junior (JR) Volume Pedal (6180)

VP JR 250K (FOR PASSIVE ELECTRONICS)

The potentiometer has a 250k ohm resistance suitable for the audio path of passive instruments. Behind the jack area under the footplate is a micro taper switch which provides the user two distinct volume swell rates.

Overall Volume Pedal Junior dimensions: 3.5" W x 10" L x2 3/8" H .

The main pivot shaft is of centerless ground 1/2' diameter stainless steel, precision seated though nylon bushings at both ends. Tough long lasting Kevlar cable transmits pedal travel to the controls and is attached by stainless steel springs.

• 250k ohm potentiometer for passive instruments
• Micro taper switch offers two volume swell rates
• Robust stainless steel pivot shaft for durability
• Kevlar cable ensures long-lasting performance
• Compact dimensions: 3.5" W x 10" L x 2 3/8" H
