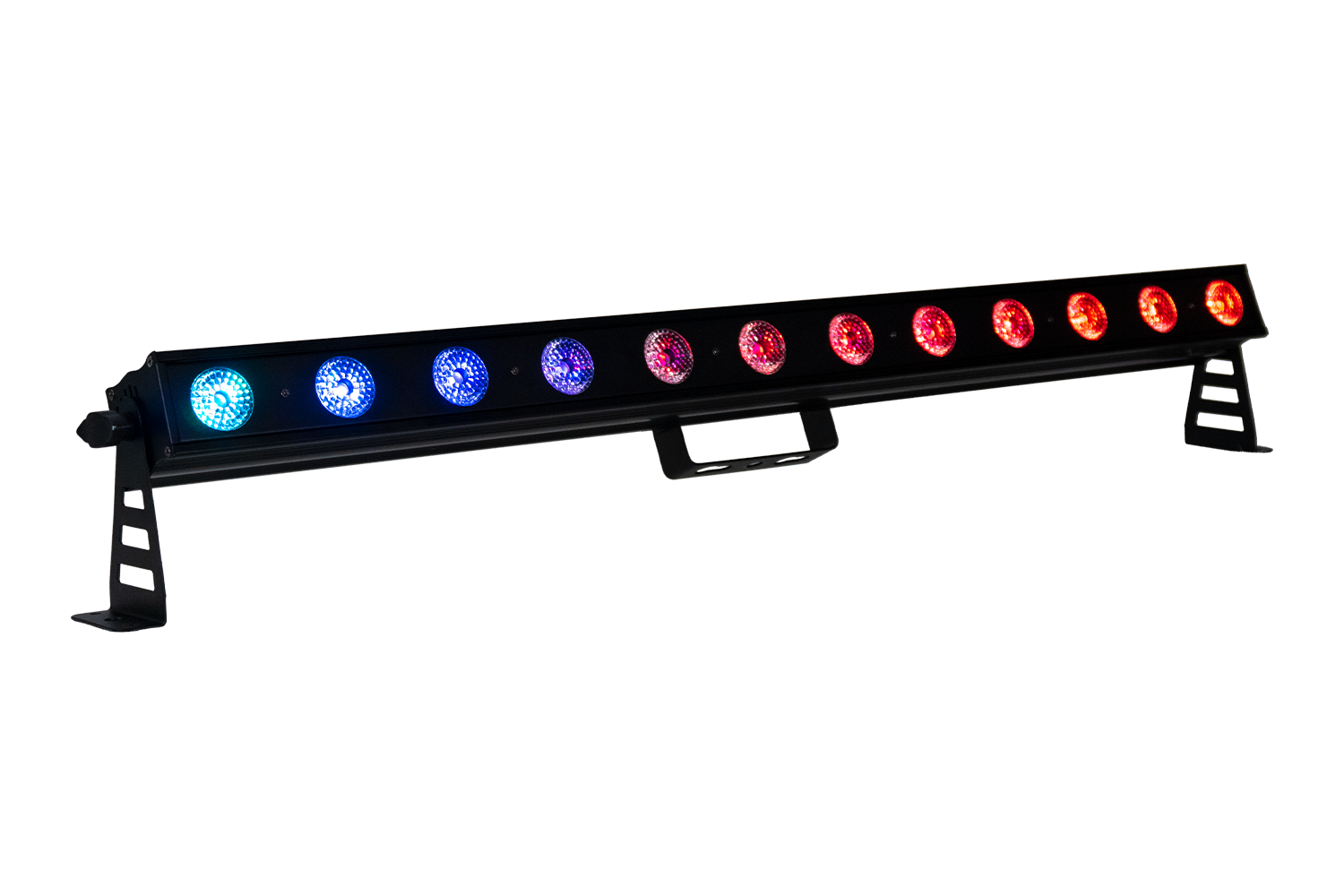

Event Lighting PIXBAR12X12 - 12x 12 W RGBWAU Pixel Control Bar (Black)

Event Lighting PIXBARs are perfect for fixed installations and productions. All models feature pixel control, an aluminium housing and fanless operation, making them silent and virtually maintenance free.

Photometrics

• Light Source: 12x 12 W RGBWAU LEDs
• Beam Angle: 30° (optional: 55°)
• Output: 2,050 lux @ 2 m RGBWAU full on
• PWM: 12,000 Hz
• LED Life: 50,000 hours

Effects

• Dimming: 4x 16-bit Dimming Curves
• Strobe: 1~30 Hz

Power

• Input Voltages: 100~240 V AC, 50/60 Hz, 150 W
• Power Connection: Neutrik® powerCON in/out

Control

• Operation Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase
• Display: 4-button LCD control panel
• Control Protocol: DMX512
• DMX Channels: 3 / 4 / 6 / 8 / 12 / 24 / 72 / 74
• Control Interface: 5-pin XLR
• Software Upgrade via DMX: Yes

Housing

• Housing Materials: Aluminium, matte black finish
• Cooling: Fanless Cooling
• Dimension: 1050 x 165 x 80 mm
• Net Weight: 4.5 kg
