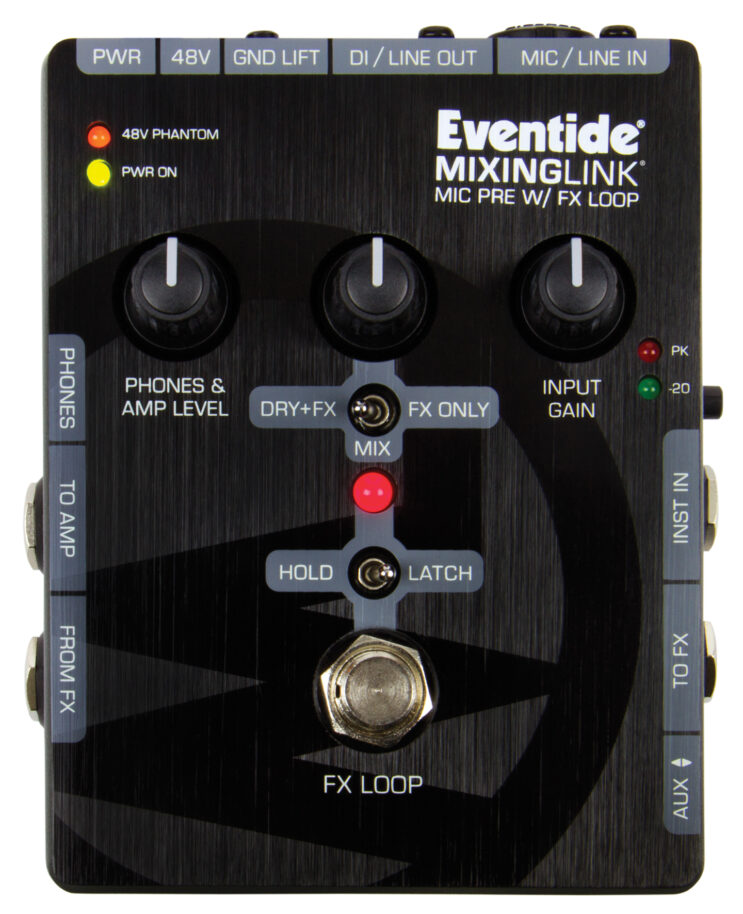

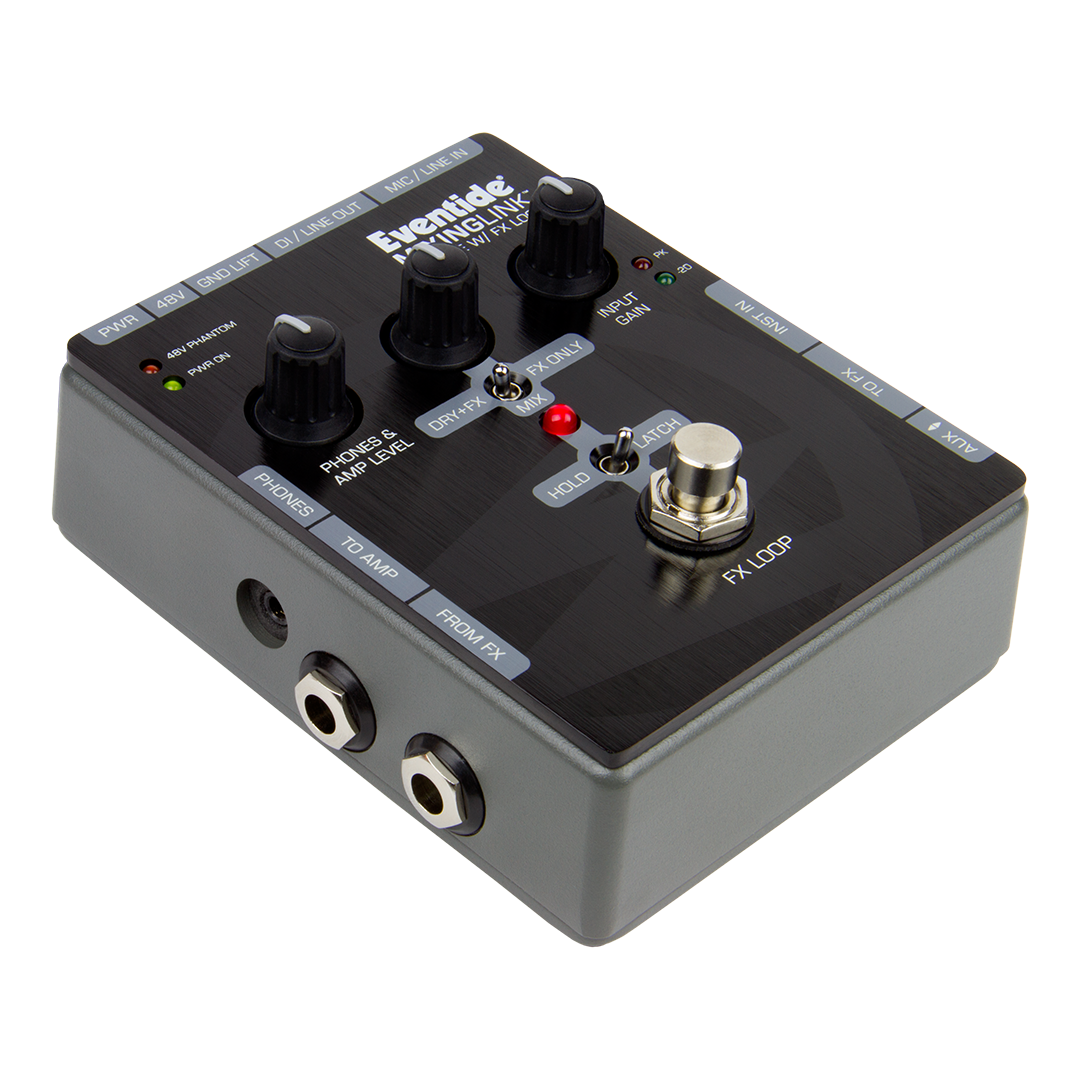

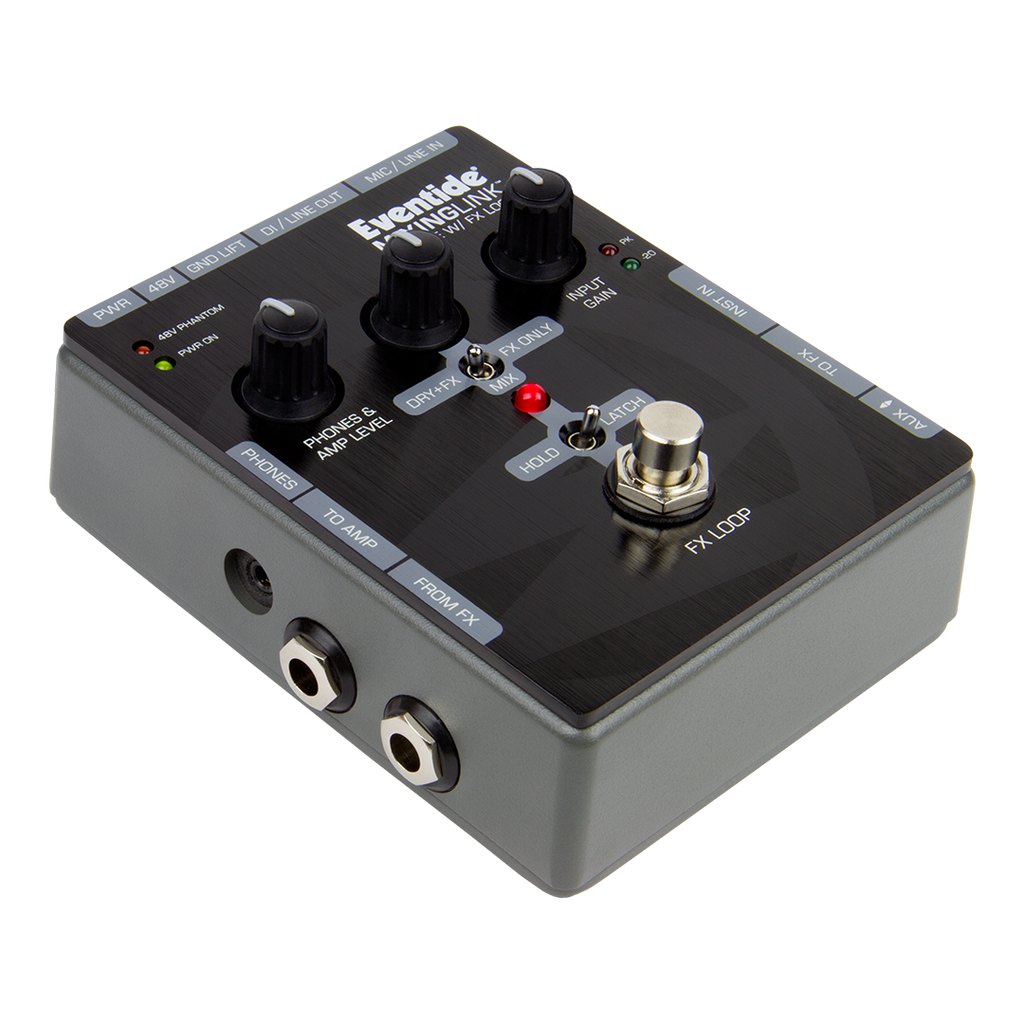

Eventide MixingLink MicPre + Effects Loop

A stompbox-size audio toolkit for on-stage, in the studio, and everywhere in between. Includes a quiet high gain mic-pre, 48V phantom power, and enough I/O and control for applications such as FX Loop for microphone signal processing (vocals, horns, strings, etc), signal splitting, and combining, complete re-amp setup, impedance, and gain matching, mixing and more.

Features
Ultimate Versatility
Latching or momentary footswitch control of FX loop for performance effects
Works with a wide range of microphones including condenser and ribbon mics with up to 65dB of clean gain
Aux I/O connection supporting stereo input and send
Guitar amp output and headphone monitor output with separate master volume control
International universal power supply included
Operates on 9V battery (no phantom power when operating on a battery)
48V phantom power for condenser mics

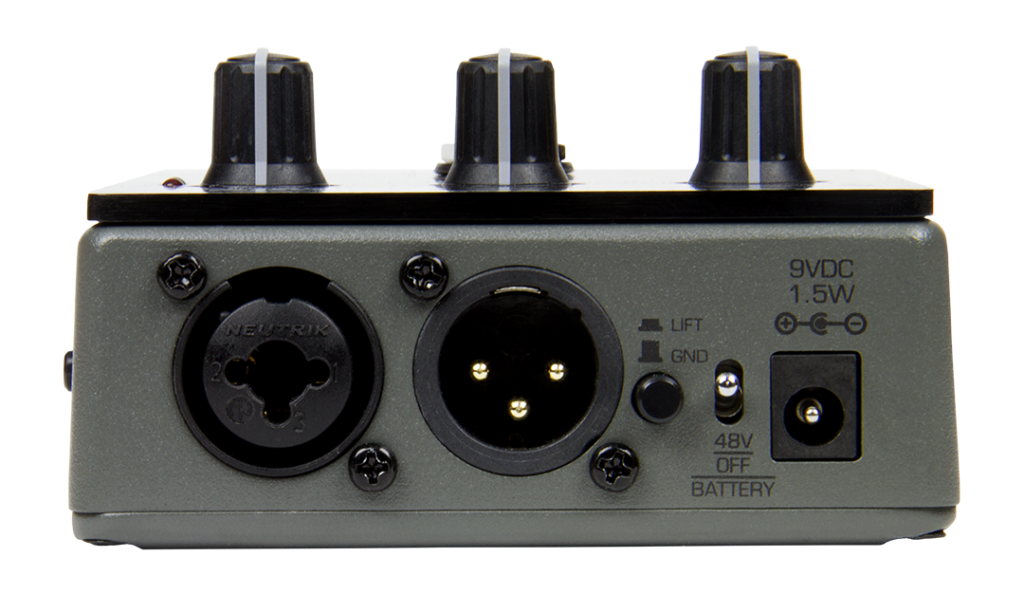

Balanced XLR output which supports DI and line levels
Instrument and balanced line level inputs
Versatilemixcontrol supports 3 modes100% Dry w/FX blended in
Mic/FX balance control
100% FX (no Dry)

• Compact audio toolkit for stage and studio use
• Includes high gain mic-pre with 48V phantom power
• FX loop control for versatile performance effects
• Compatible with condenser and ribbon mics
• Aux I/O supports stereo input and send
• Separate master volume for guitar and headphones
• Balanced XLR output for DI and line levels
• Operates on 9V battery with no phantom power
