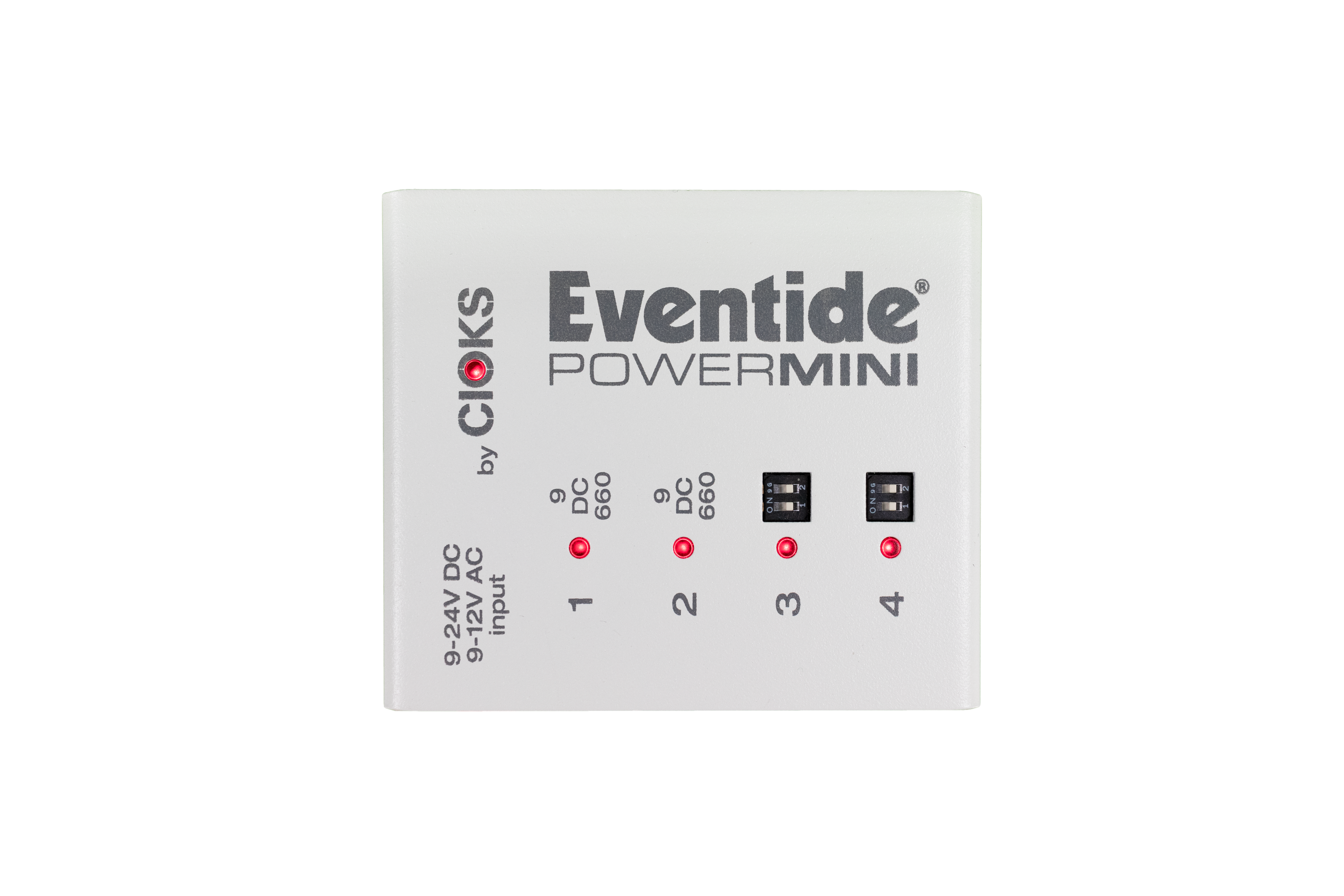

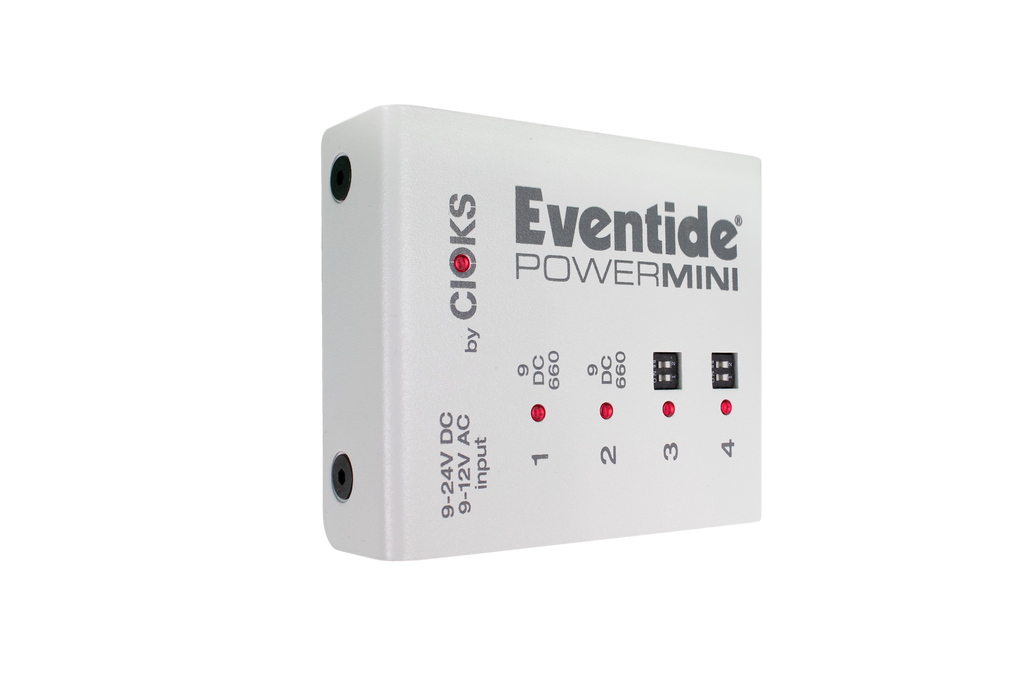

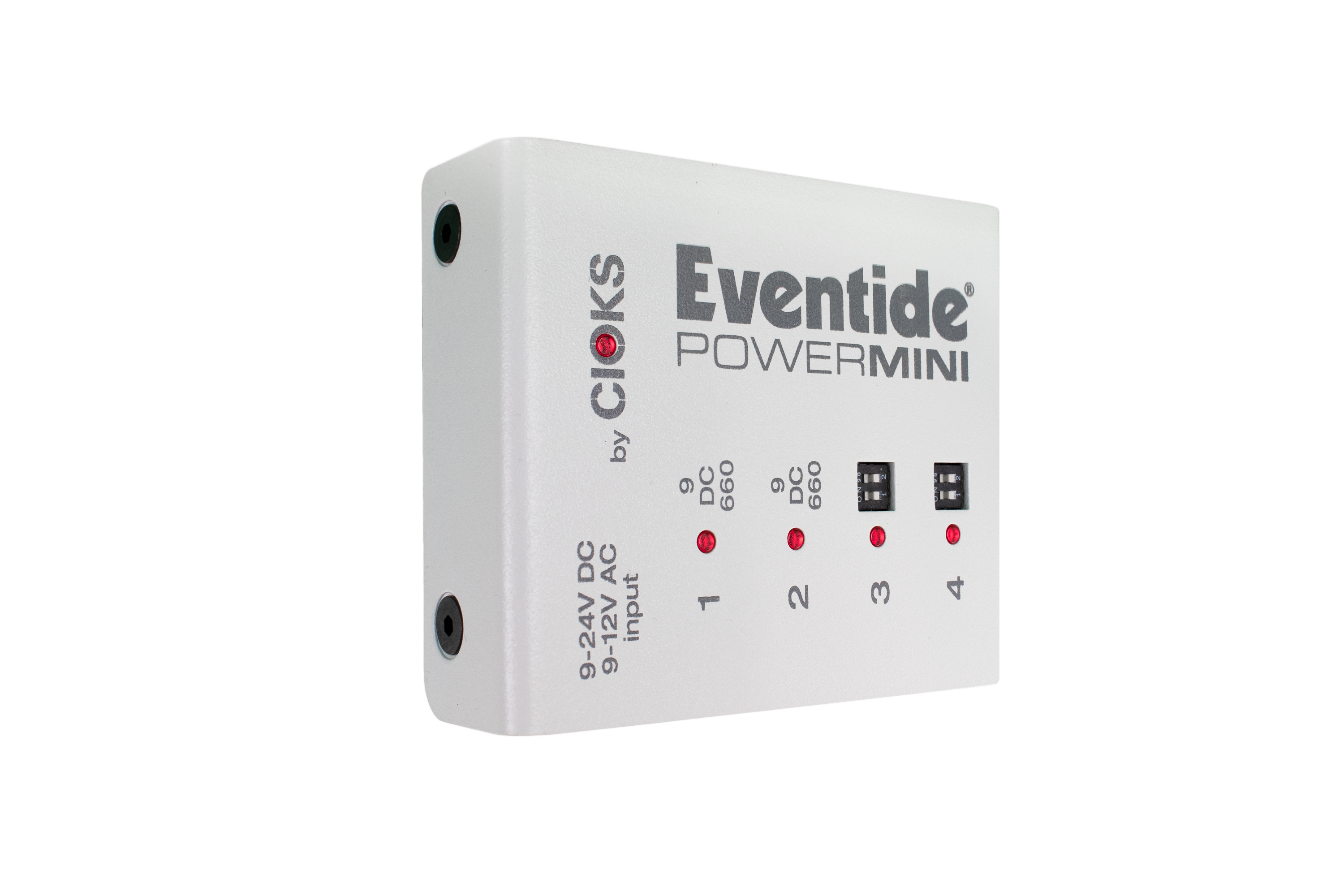

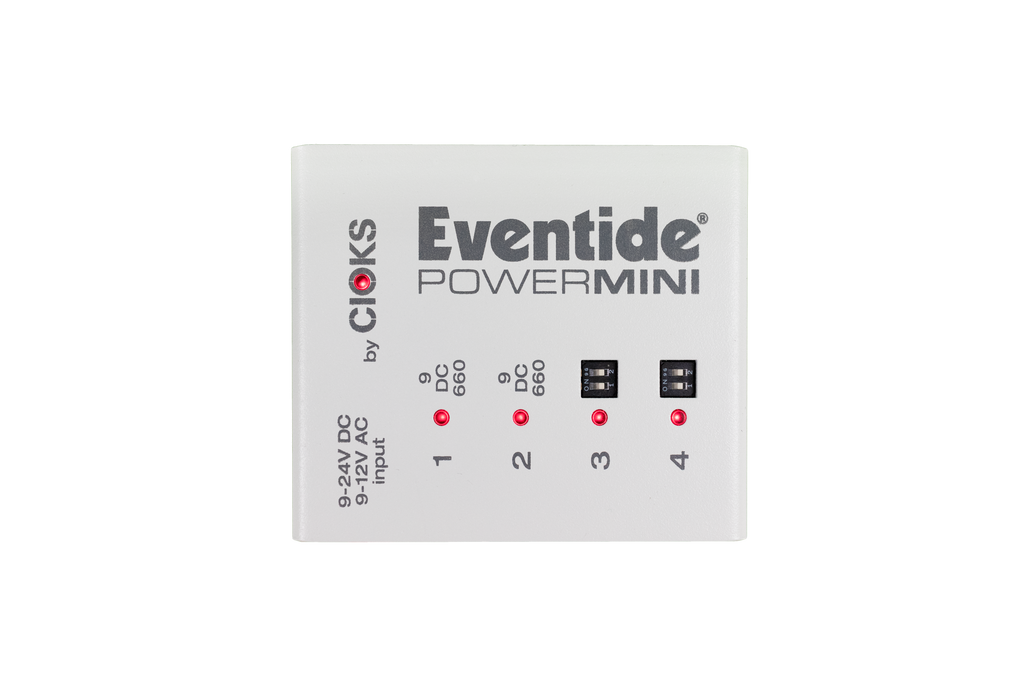

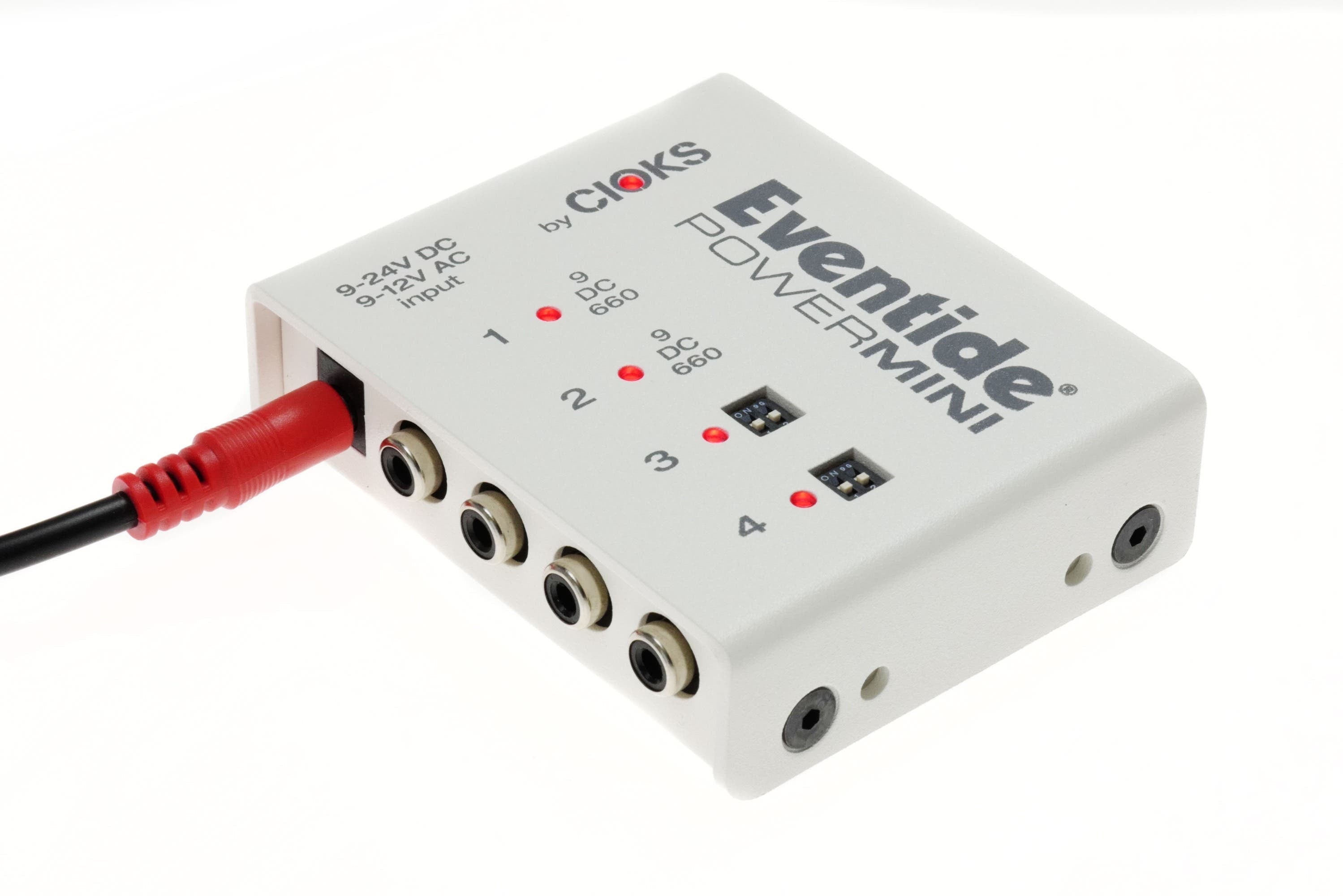

Eventide PowerMini EXP Pedalboard Power Supply Expansion

PowerMini is a super-compact, isolated power supply for smaller pedalboards that ensures your pedals will achieve maximum fidelity. PowerMini provides four outputs at 600 mA (with 2 outputs switchable to 9, 12, 15, or 18V). Also available is the PowerMini EXP, which is the perfect companion to PowerMax. Simply connect PowerMini EXP to your PowerMax via the courtesy 24V outlet and you are good to go. Each PowerMini comes with 7 flex cables compatible with most pedal brands.

PowerMini EXP (PowerMax Expansion)
Comes with 24V DC Link cable, black, 50cm (EIAJ to red 5.5/2.1mm center positive DC plug)
Mounting hardware (2 screws and a hex-key)
Product sheet (drill guide)
Flex & DC Link cable guide
7 Flex Cables:2 x 1030 – black, 30cm, center negative, type 1 (Eventide Rose, MixingLink & BOSS type)
2 x 1050 – black, 50cm, center negative, type 1 (Eventide Rose, MixingLink & BOSS type)
2 x 4050 – green, 50cm, center positive, type 4 (Eventide all H9s, TimeFactor, ModFactor, PitchFactor & Space)
1 x 1533 – 3-way daisy chain, black, 50-30-30cm, center negative, type 1 (BOSS type)

• Super-compact design for smaller pedalboards
• Four outputs at 600 mA for maximum fidelity
• Switchable voltage: 9, 12, 15, or 18V options
• Compatible with PowerMax via 24V outlet
• Includes 7 flex cables for various pedal brands
• Comes with 24V DC Link cable and mounting hardware
