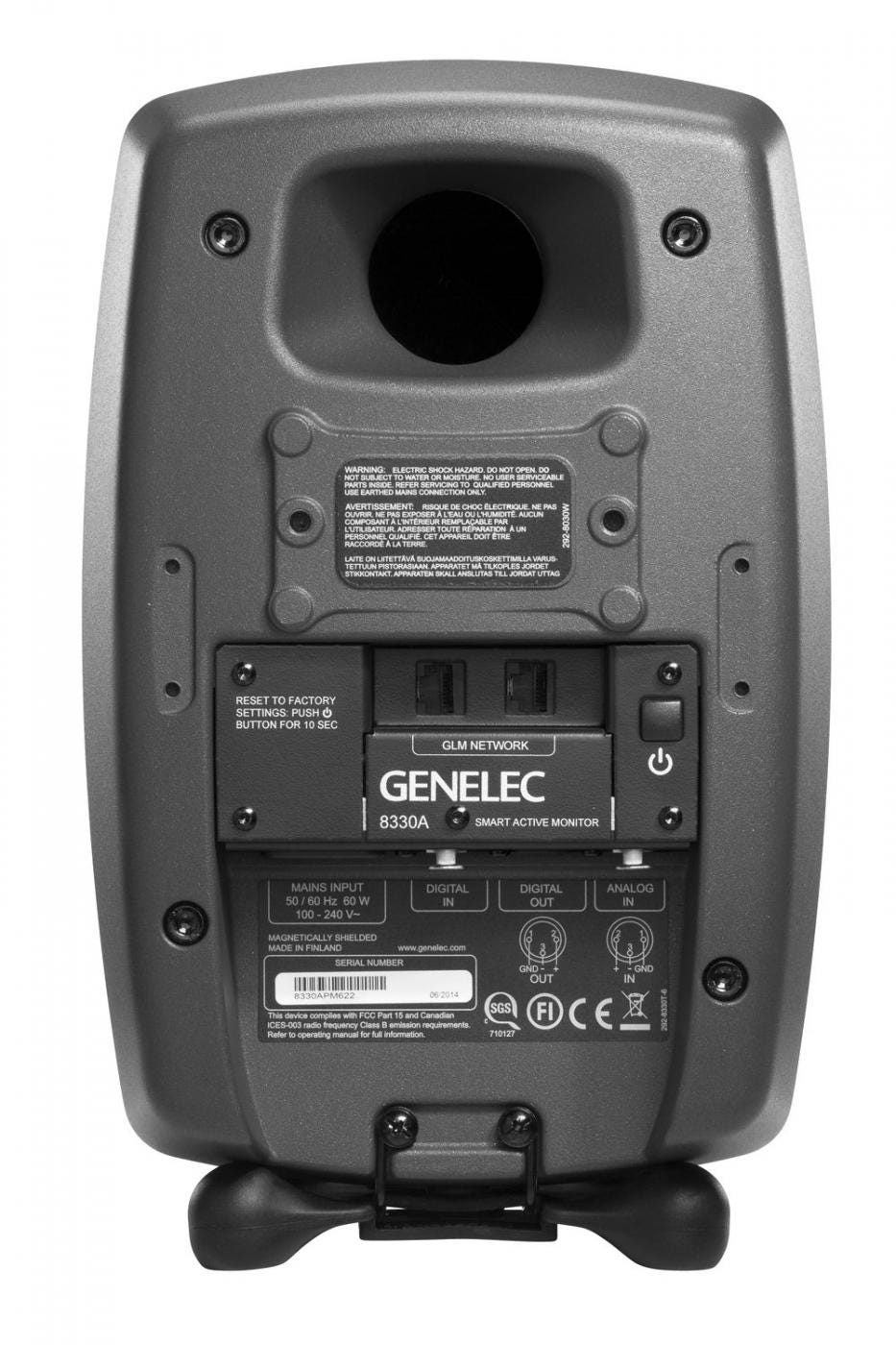

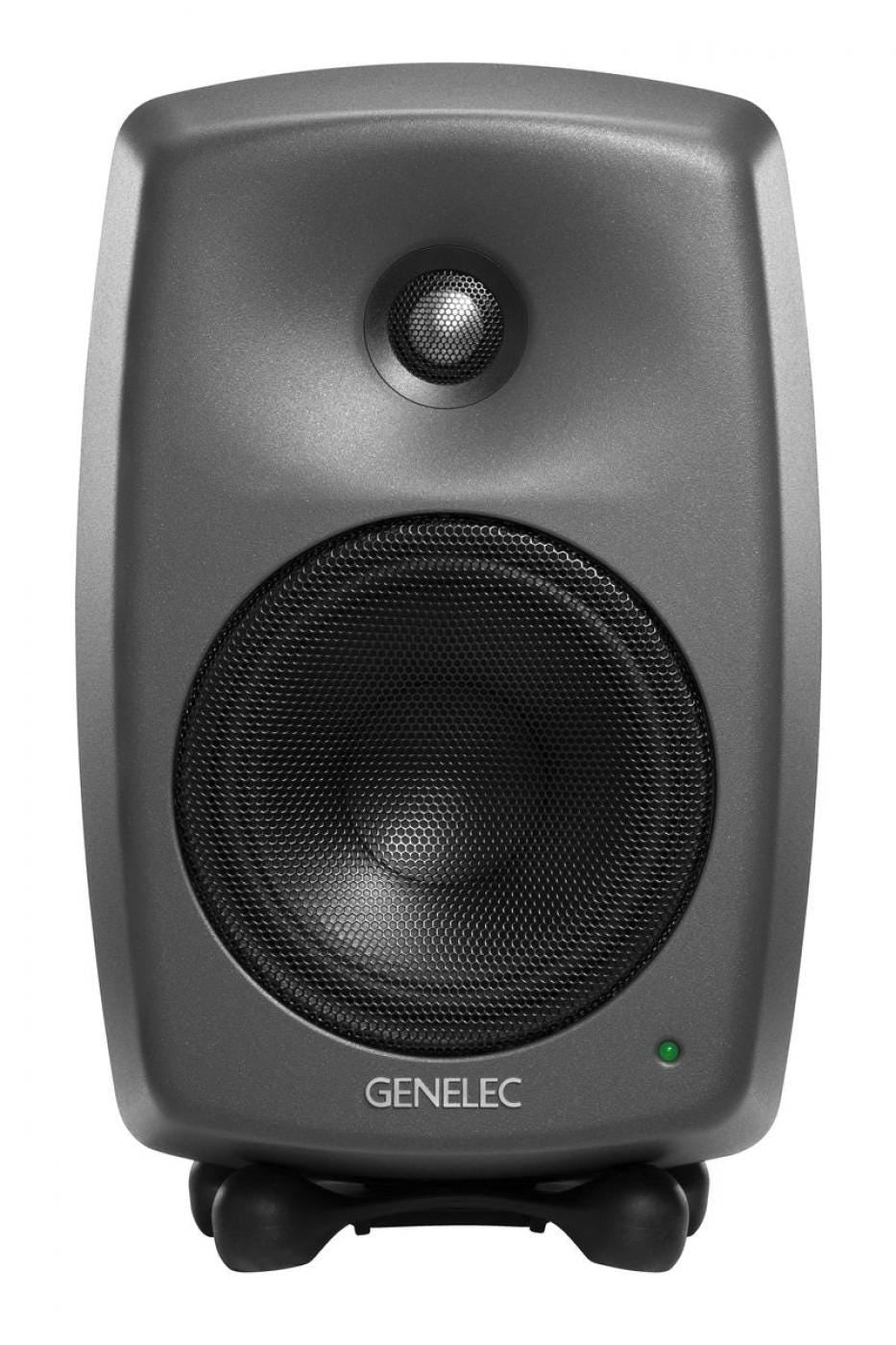

Genelec 8330A SAM 5" Active Studio Monitor (Single)

8330A SAM™ Studio Monitor

Ideal for facilities that need power and adaptability in a compact package, the 8330A offers colour-free reproduction and the world’s most advanced Smart monitoring solution.

The choice of professionals for whom power and flexibility go hand-in-hand, the 8330A is as acoustically impressive as it is Smart, courtesy of Smart Active Monitoring (SAM™) technology. Housing a 5 inch woofer and 3/4 inch tweeter, the Class D bi-amplified, two-way Smart monitor is compact enough to fit into studios where space is at a premium, yet still capable of exceeding even the most demanding client expectations.

Colour-free accuracy is delivered by the Minimum Diffraction Enclosure (MDE™), while the Directivity Control Waveguide (DCW™) ensures precise frequency reproduction both on- and off-axis. The 8330A is also built to adapt and assist. Genelec Loudspeaker Manager (GLM™) software delivers functions including AutoCal™, ensuring your monitoring system is perfectly calibrated to your listening environment, compensating for detrimental room influences to create a truly optimised monitoring solution. Finally, with GLM you can manage up to 30 Smart monitors and subwoofers, easily creating fully recallable setups from stereo to immersive audio.

Key Technologies

• Smart Active Monitor (SAM™) Systems

• Directivity Control Waveguide (DCW™) Technology

• Minimum Diffraction Enclosure (MDE™) Technology

• Reflex Port Design

• Optimized Amplifiers

• Active Crossovers

• Protection Circuitry

• Intelligent Signal Sensing (ISS™) Technology

• Iso-Pod™ Stand

• Versatile Mountings

Technical specifications

• 104 dB

• Frequency response45 Hz – 23 kHz (-6 dB)

• Accuracy of frequency response± 1.5 dB (58 Hz - 20 kHz)

• Driver dimensionWoofer 5 inch + Tweeter 3/4 inch metal dome + DCW™

• Amplifier powerWoofer 50 W + Tweeter 50 W (All Class D)

• DimensionsH 299 x W 189 x D 178 mm, 11 7/8 x 7 1/2 x 7 1/16 inch, with Iso-Pod™

• Weight5.5 kg / 12.1 lb (5.1 kg /11.2 lb as the improved lightweight RS version.)

• Connections1 x XLR analog input, 1 x input / 1 x output XLR digital AES/EBU, 2 x RJ45 control network

• Compact design suits limited studio spaces
• Smart Active Monitoring for adaptable use
• 5 inch woofer and 3/4 inch tweeter system
• Minimum Diffraction Enclosure ensures accuracy
• Directivity Control Waveguide for precise sound
• Genelec Loudspeaker Manager software included
• Class D bi-amplified for powerful audio output
