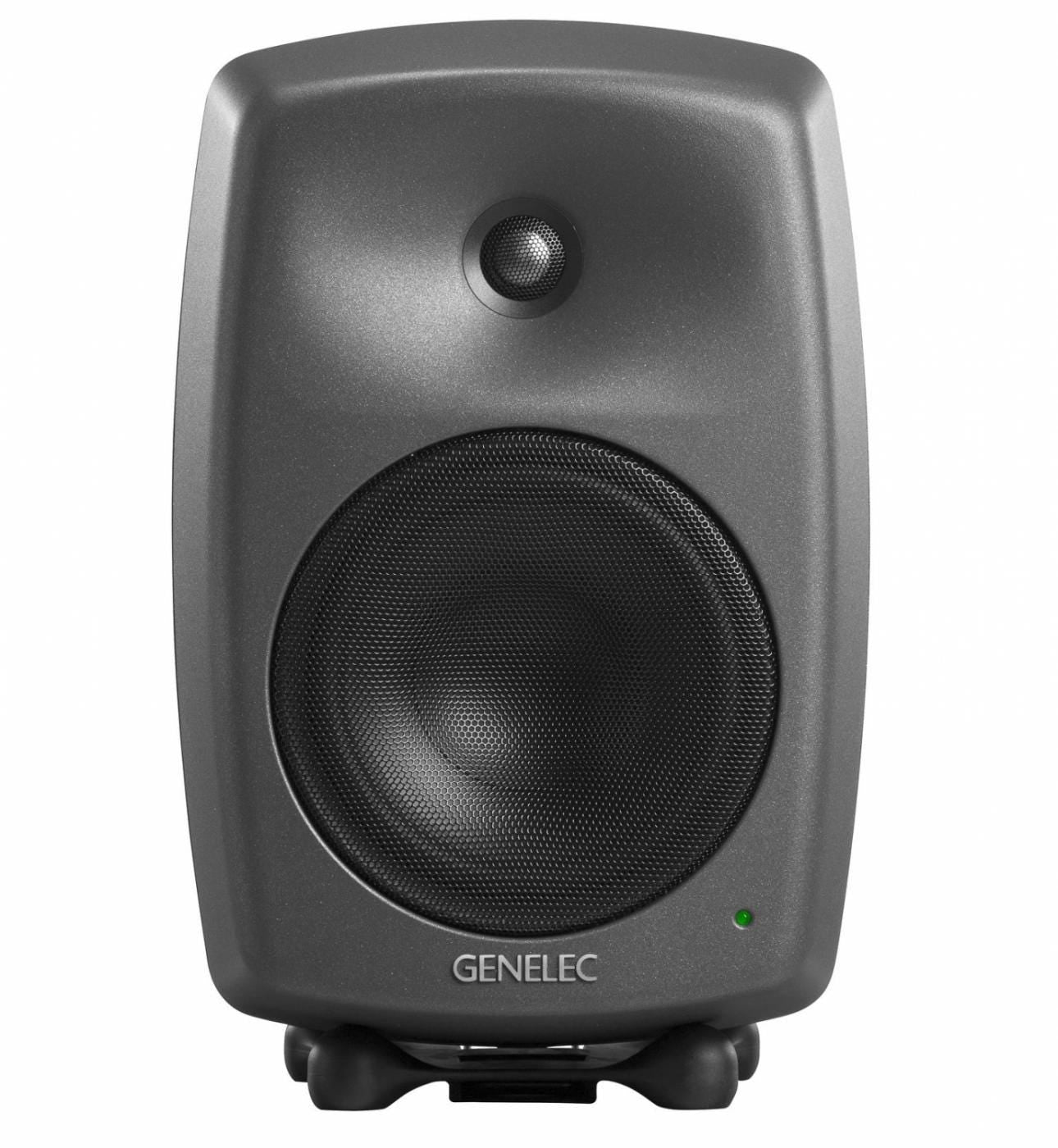

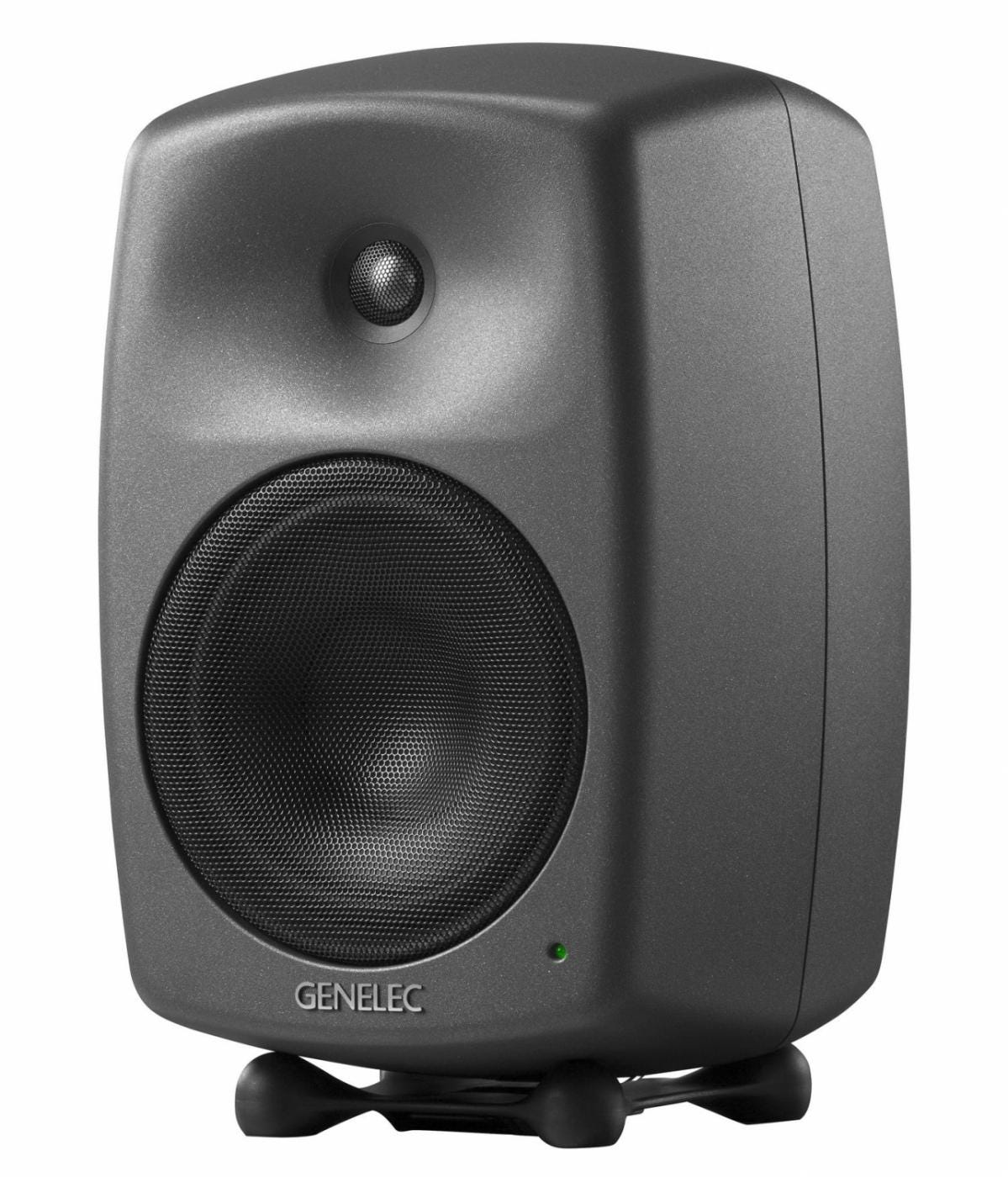

Genelec 8340A SAM 6.5" Active Studio Monitor (Single)

Lift the accuracy of your audio monitoring to a new level with the 8340A’s enhanced power, pin-point accuracy and advanced Smart Active Monitoring™.

The Genelec 8340A has quickly established itself as the trusted monitoring choice of facilities worldwide. Boasting a 6 1/2 inch woofer plus Genelec’s most efficient Class-D amplification to date, the two-way, Class D bi-amplified monitor represents a finely balanced union of acoustic expertise and SAM™ innovation.

At the heart of the system is an acoustic design shaped by decades of innovation and expertise. Capable of supporting extremely high sound pressure levels, the 8340A features a reflex port design for low-frequency enhancement, plus the colour-free accuracy of the Minimum Diffraction Enclosure (MDE™), and on- and off-axis precision thanks to the Directivity Control Waveguide (DCW™). All this is coupled to the versatility of SAM. Genelec Loudspeaker Manager (GLM™) software allows for the fine adjustment of all monitor settings, while AutoCal™ compensates for detrimental room influences to perfectly calibrate your set-up for your listening environment, no matter if you work in simple stereo or ambitious immersive audio.

The result is the most advanced adaptable monitoring solution available, ideal for all applications including recording studios, post-production houses, digital edit suites, radio, TV and outside broadcasting.

Key Technologies

• Smart Active Monitor (SAM™) Systems

• Directivity Control Waveguide (DCW™) Technology

• Minimum Diffraction Enclosure (MDE™) Technology

• Reflex Port Design

• Optimized Amplifiers

• Active Crossovers

• Protection Circuitry

• Intelligent Signal Sensing (ISS™) Technology

• Iso-Pod™ Stand

• Versatile Mountings

Technical specifications

• 110 dB

• Frequency response38 Hz – 22 kHz (-6 dB)

• Accuracy of frequency response± 1.5 dB (44 Hz - 20 kHz)

• Driver dimensionWoofer 6 1/2 inch + Tweeter 3/4 inch, metal dome + DCW™

• Amplifier powerWoofer 150 W + Tweeter 150 W (All Class D)

• DimensionsH 365 x W 237 x D 223 mm, 14 3/8 x 9 3/8 x 8 13/16 inch, with Iso-Pod™

• Weight8.4 kg / 18.5 lb

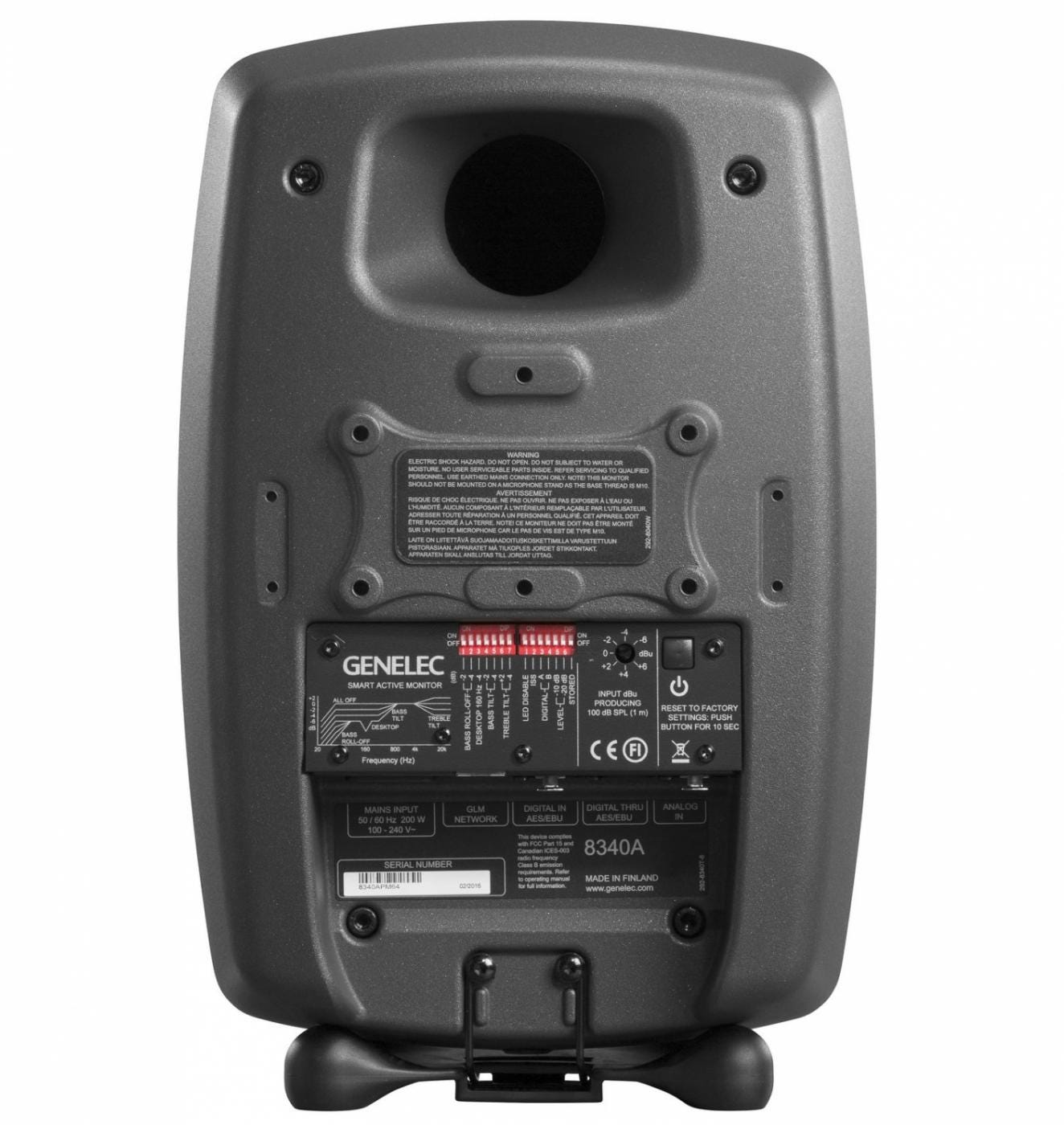

• Connections1 x XLR analog input, 1 x input / 1 x output XLR digital AES/EBU, 2 x RJ45 control network

• Enhanced power for accurate audio monitoring
• 6.5 inch woofer with Class-D amplification
• Smart Active Monitoring adapts to your space
• Minimum Diffraction Enclosure for colour-free sound
• Directivity Control Waveguide ensures precision
• Genelec Loudspeaker Manager for fine adjustments
• Reflex port design boosts low frequency response
• Supports high sound pressure levels effortlessly
