KNA Pickups DB-1 Double Bass Piezo Pickup

Portable piezo pickup for double bass.

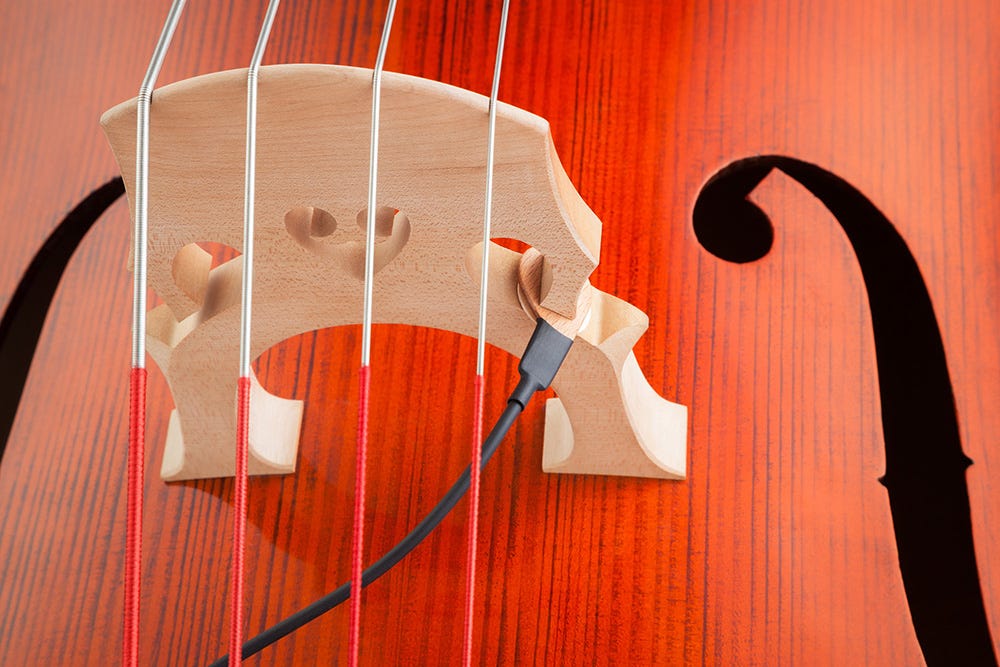

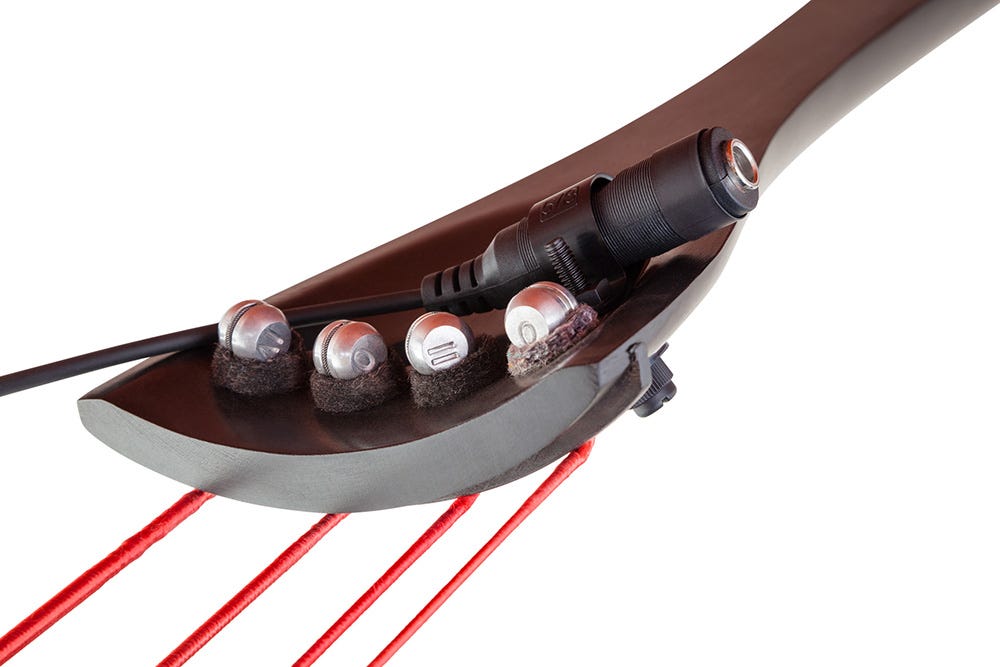

DB-1 faithfully reporduces the breadth of tone and dynamic range of your instrument without modification. A wood-encased piezo sensor installs in eye slot of the bridge, held in place via friction. Neatly-finished shim discs ensure the perfect fit. The 1/4" jack housing secures non-destructively to the tailpiece with a screw assembly at the string eye. DB-1 is entirely passive, designed to work flawlessly with your favorite amplifier or colored via a preamp of choice.

SPECIFICATIONS

• Diameter of the piezo element 22.5mm / 0.88"
• Thickness of the piezo element
• 2.40mm +/- 0.08mm
• 0.095" +/- 0.003"
• Lead cable from jemale jack to element 29cm / 11.42"
• Maximum Impedance 200 Ω

• Portable piezo pickup for double bass
• Faithfully reproduces tone and dynamic range
• Wood-encased sensor installs in bridge slot
• Non-destructive jack housing with screw assembly
• Compatible with amplifiers and preamps
• Passive design ensures flawless performance
