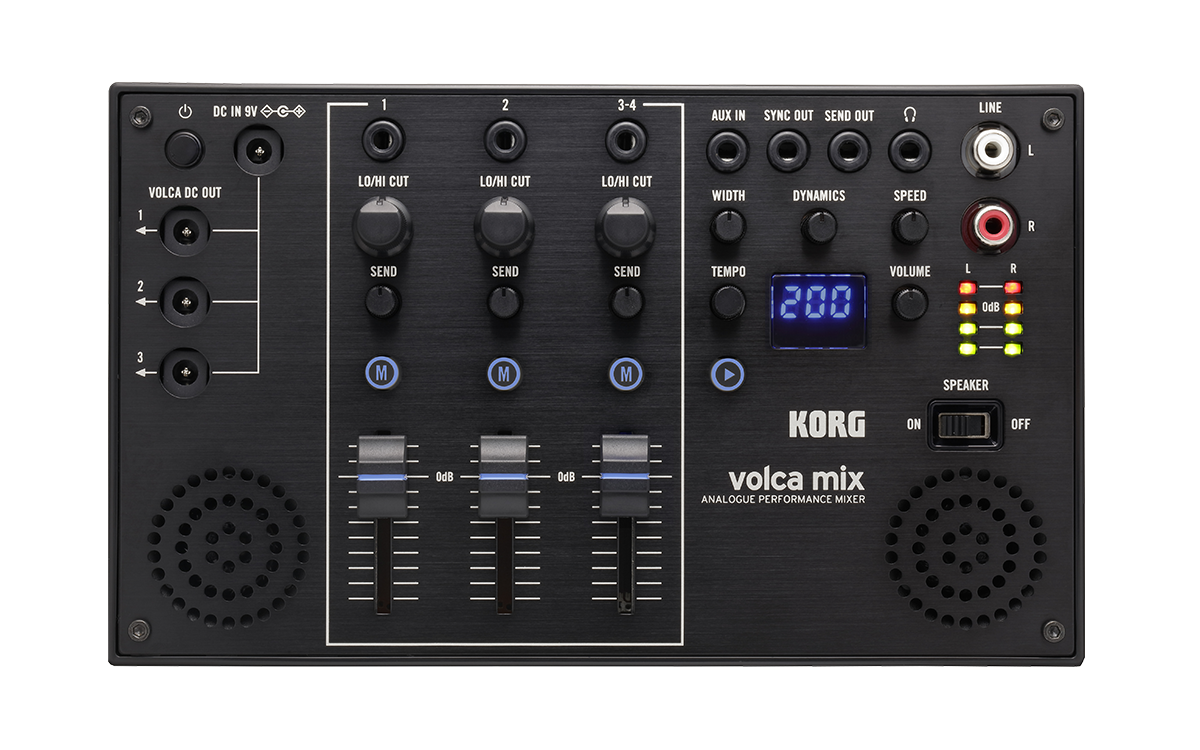

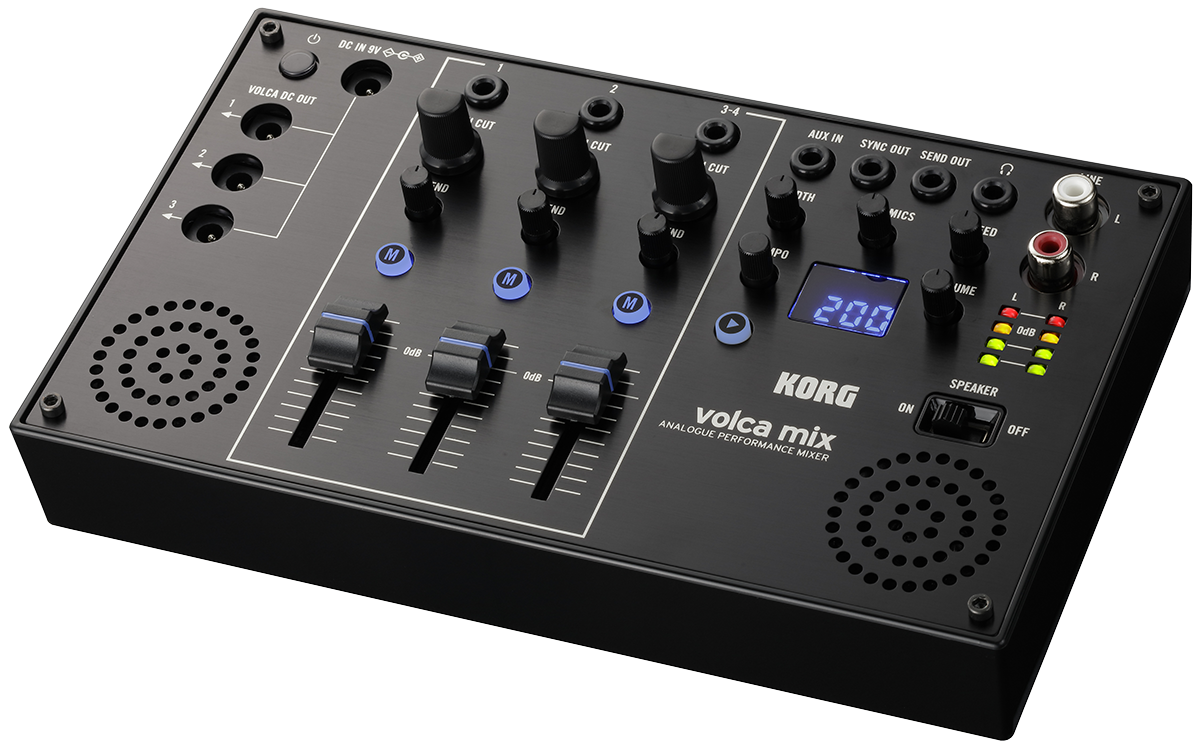

Korg Volca Mix Analog Performance Mixer

An analogue performance mixer that completes your Volca setup. Volca mix is the long-awaited mixer for the Volca series. The Volca mix is a four-channel analogue performance mixer that lets you construct a live setup combining multiple Volca units.

Volume faders are easy to control, plus crisp-sounding LO/HI CUT filters, and a master chain that radically transforms the sound. In addition to the sync function found on all Volcas, there are also DC output connectors that can supply power for up to three Volca units. Numerous functions to facilitate your on-stage Volca performances have been packed into a high-quality aluminum-paneled body, reminiscent of a high-end DJ mixer. The Volca mix will unlock the maximum potential of the Volca series.

• Compact multi-function four-channel mixer.
• Volume faders and LO/HI CUT filter for superb performability.
• Output and monitor capabilities for use on stage, plus stereo speakers for maximum portability.
• Powerful effects and control.
• Master chain lets you control dynamics.
• Send out and AUX in for connecting external effects.
• Sync function that can act as the master of a live setup.
• Unlocks even more potential out of the Volca series.
• DC out can supply power for up to three Volca units.
• AC adapter, DC-DC cables, and audio cables are included with the unit

Powerful effects and control

The Volcamix is equipped with master effects powered by all-analogcircuitry. In addition to an expander that broadens a mono source into a stereo sound image, there’s a dynamic range compressor that compresses the high-frequency range according to level changes of the low-frequency region, as well as a side chain effect that’s indispensable for dance music. Use these to dynamically vary the mix, adding a professional feel to live performances with the Volca.

Unlocks even more potential out of the Volca series

Three VOLCA DC OUT jacks are provided, and by connecting the included DC-DC cables you can supply power for up to three Volca units. Even when using multiple Volca units on stage, you won’t need to bother with adapters or bring another power strip, just concentrate on your performance with a streamlined setup and breakdown.

Specifications:

Type: 4 channel analogue mixer (1ch/2ch mono, 3ch/4ch stereo) Channel Controls: Lo/Hi Cut, Send, Mute, Volume Slider with Gain Boost Master Chain: Stereo expander (Width), Dynamic compressor (Dynamics, Speed) Sequencer Control: Play, Tempo Stereo Speaker: On/Off Input / Output Jacks: Monaural Channel in x 2, Stereo Channel in, AUX In, Line Out (Stereo RCA pin jacks), Head Phone Out, Sync Out, Send Out Power Supply: AC adapter (DC 9 V) Power Supply Output: DC Output x 3 Dimensions (W x D x H): 193 mm x 115 mm x 45 mm / 7.60" x 4.53" x 1.77" (including height of knobs) Weight: 370 g / 13.05 oz. Included Items: AC adapter, DC cable x 3, Audio cable x 3 Accessories (sold separately): XX-VOLCA carrying board case (Available to storage in four volca series plus accessories), SQ-CABLE-6 sync cable

Dimensions
(W x D x H): 193 mm x 115 mm x 45 mm / 7.60" x 4.53" x 1.77" (including height of knobs)

• Four-channel analogue mixer for live setups
• Volume faders with LO/HI CUT filter control
• DC output powers up to three Volca units
• Includes AC adapter and audio cables
• Stereo speakers enhance portability
• Master chain optimises sound dynamics
• Sync function serves as live setup master
