Roland AV VC1HS HDMI to SDI Video Converter

CONVERSION OF VIDEO AND AUDIO SIGNALS FROM HDMI INPUT TO SDI OUTPUT

Roland's new video converters address the demand for high-quality, lossless video and audio converters for live/post production as well as installed systems. They include the Roland VC-1-HS (HDMI to SDI), VC-1-SH (SDI to HDMI), VC-1-DL (Bi-directional SDI/HDMI with audio/video delay and frame sync) and VC-1-SC (Up/Down/Cross Scan converterto/from SDI/HDMI).

• HDMI to SDI Conversion
• Lossless Image Conversion
• 3G (Level A&B) /HD/ SD SDI
• HDCP Support
• VC-1 RCS, PC/MAC Control Application
• Selectable Channel for Embedded/De-Embedded Audio

The VC-1 Video Converter series

The VC-1 Video Converter series provides uncompromising picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1 series also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources.

The VC-1 series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL additionally enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow.

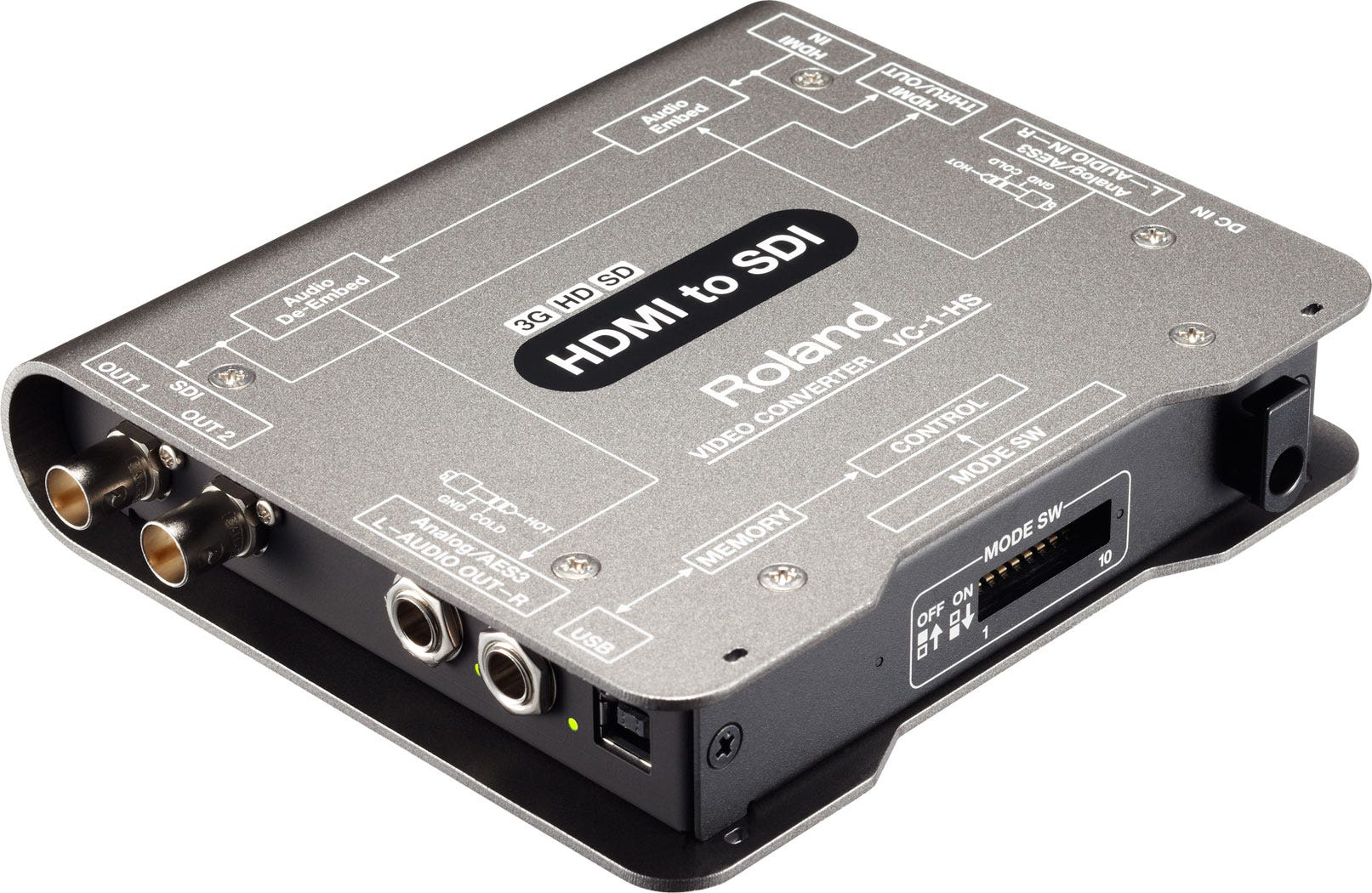

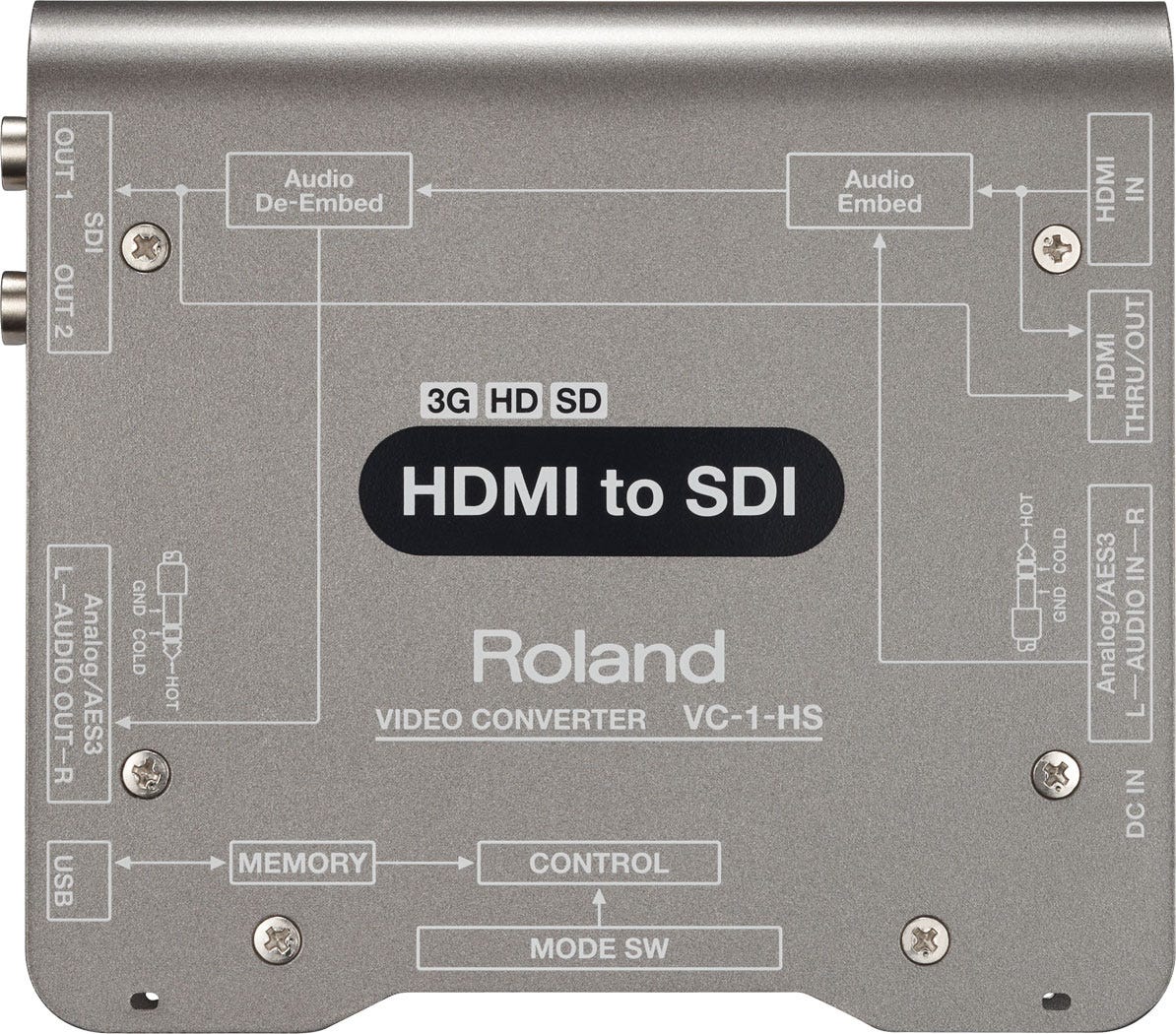

Roland VC-1-HS

Increasingly HDMI video cameras are being used for live production. The VC-1-HS converts, extends and embeds audio from HDMI to SDI. This converter is especially complimentary to the Roland V-1600HD and V-800HD multi-format video mixers when you want to use SDI signals for camera inputs on the mixer.

• Converts HDMI input to SDI output seamlessly
• Maintains original signal quality with no errors
• Supports 3G, HD, and SD SDI formats
• HDCP compliant for secure signal conversion
• Selectable audio embedding and de-embedding
• On-board re-clocker for long-distance SDI signals
