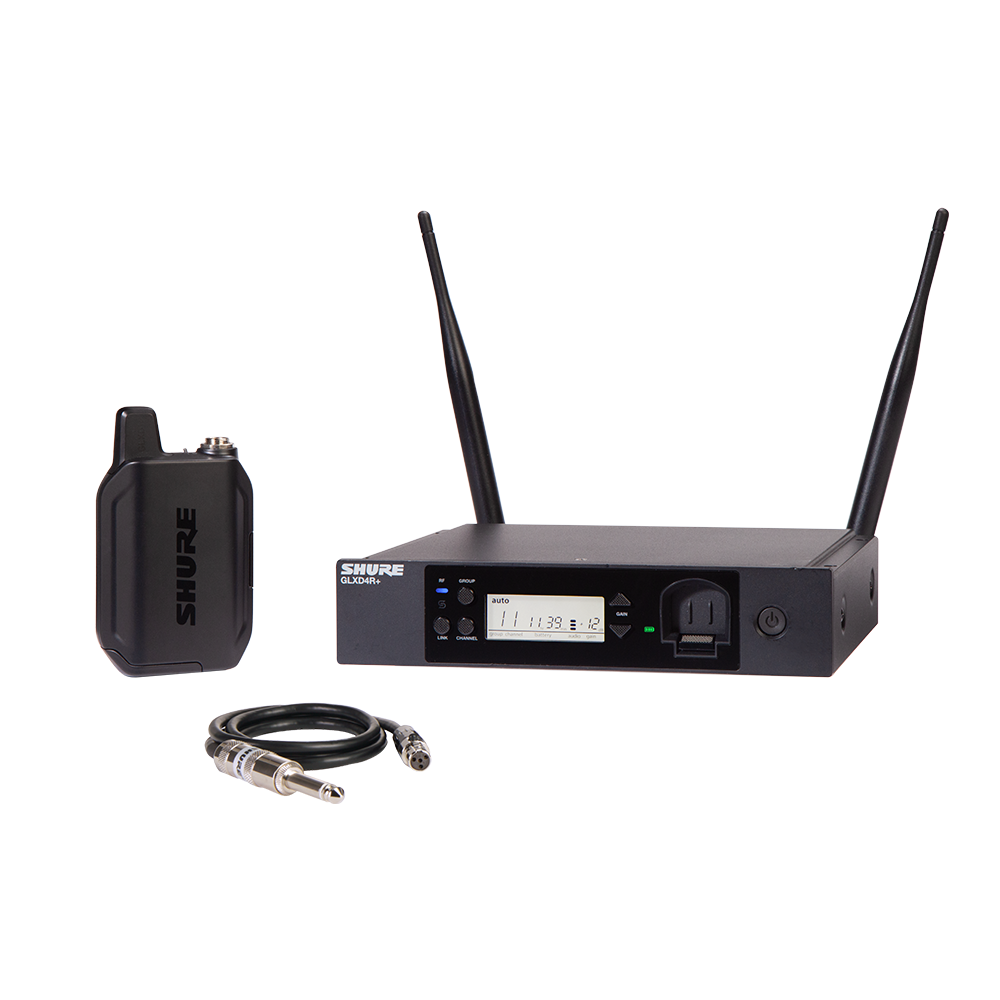

Shure GLX-D14R+ Wireless Digital Guitar System

GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to go wireless with confidence, and without complexity. With new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also intelligently avoiding interference for reliable, dropout-free audio.

Shure Wireless Digital Guitar System GLXD1+; WA302 Cable; GLXD4R+
Dual Band 2.4GHz and 5.8GHz (SHR-GLXD14R+)

Specifications

• Compatibility: With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions; Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions
• System Operating Range: Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions; Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions
• Transmit Mode: Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
• Audio Frequency Response: 20 Hz – 20 kHz Note: Dependent on microphone type
• Dynamic Range: 120 dB, A-weighted
• RF Sensitivity: -88 dBm, typical
• Total Harmonic Distortion: 0.07%, typical
• RF Output Power: 10 mW E.I.R.P. max
• Operating Temperature Range: -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range.
• Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
• Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35 mm output.
• Battery Life: Up to 12 hours


• Dual Band Wireless for reliable audio performance
• Operates on 2.4 and 5.8GHz frequencies
• Up to 11 compatible systems with Frequency Manager
• Indoor range up to 30m, outdoor range up to 20m
• Audio frequency response from 20 Hz to 20 kHz
• Dynamic range of 120 dB, A-weighted
• Battery life of up to 12 hours
• Compact design for easy portability
