Strymon Zuma R-300 Low Profile Pedal Power Supply

High Horsepower, Low Profile.

Zuma R300 is the highest horsepower, most technologically advanced low profile effects pedal power supply. You get clean, rock-steady power for your 9V, 12V and 18V effects pedals in a pedalboard friendly, expandable package, giving you room to grow. Zuma R300’s ultra-low profile design means that it can fit under just about any pedalboard.

Dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering result in a power supply that allows your pedals to achieve their highest possible dynamic range.

Dual isolation.

Zuma R300’s all analog circuitry offers two stages of isolation, completely eliminating ground loop and AC line noise issues, allowing your pedals to sound like they were designed to sound.

Ultra-Low Profile.

Zuma R300’s ultra-low profile design means that it can fit under just about any pedalboard. With built in threaded hardware, mounting to your board is simple.

Never run out of outputs.

Have a growing rig? Zuma R300 is part of an expandable system. Add more outputs by connecting a Strymon Ojai or Ojai R30 (sold separately) with the 24V Out jack.

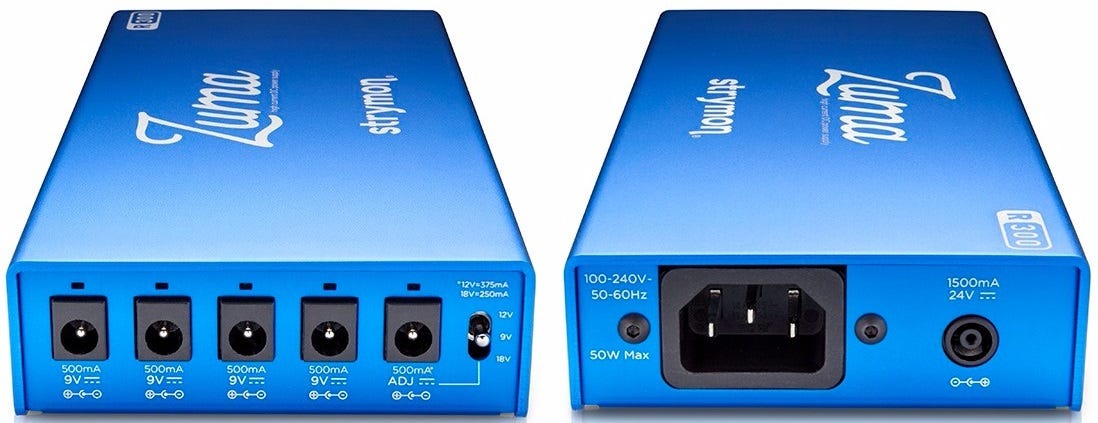

Ins & Outs

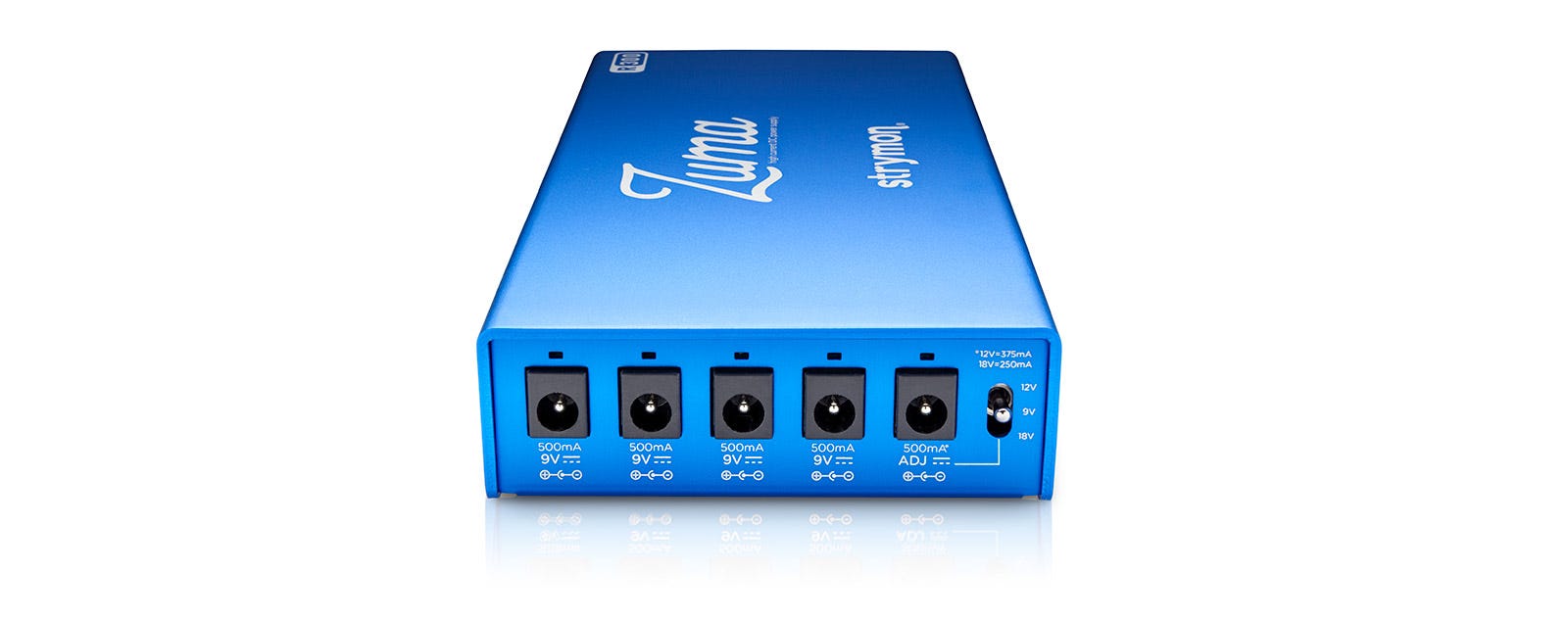

• 5 high-current, fully isolated outputs with center-negative polarity
• 4 dedicated 9V outputs (500mA)
• 1 adjustable output offers 9V (500mA), 12V (375mA), or 18V (250mA) DC options
• 500mA per 9V output powers nearly any pedal
• Delivers a maximum of 36W
• 5 pedal cables included (5.5mm x 2.1mm barrel connectors, right angle to right angle, 18″ length)
• IEC cable included
• 24V Thru jack allows connection to Strymon Ojai or Ojai R30 (sold separately)

• High horsepower, low profile design
• Clean, rock-steady power for effects pedals
• Dual-stage topology for enhanced dynamic range
• Two stages of isolation eliminate noise issues
• Ultra-low profile fits under most pedalboards
• Expandable system with 24V Out jack
• 5 high-current, fully isolated outputs
• Includes 5 pedal cables and IEC cable
