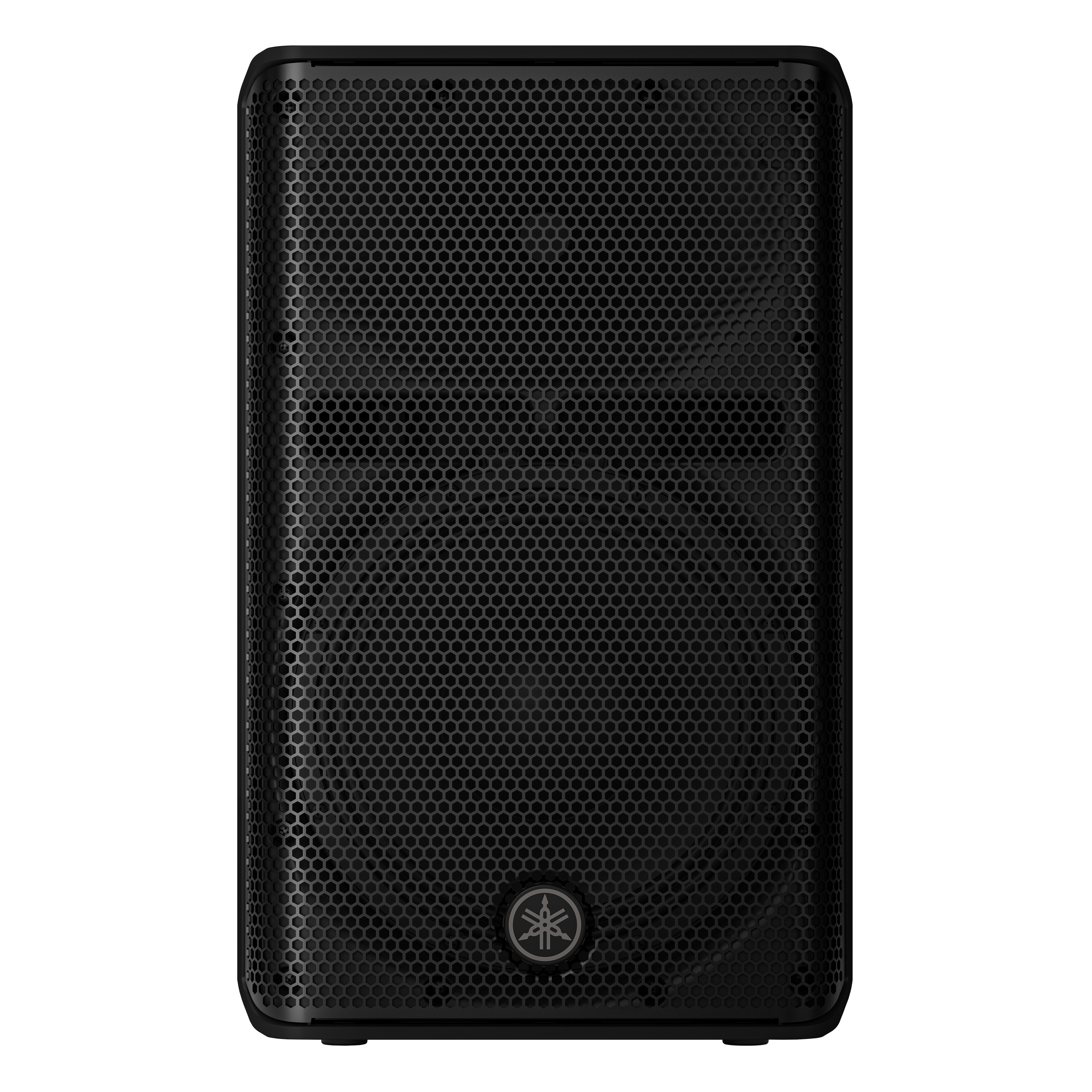

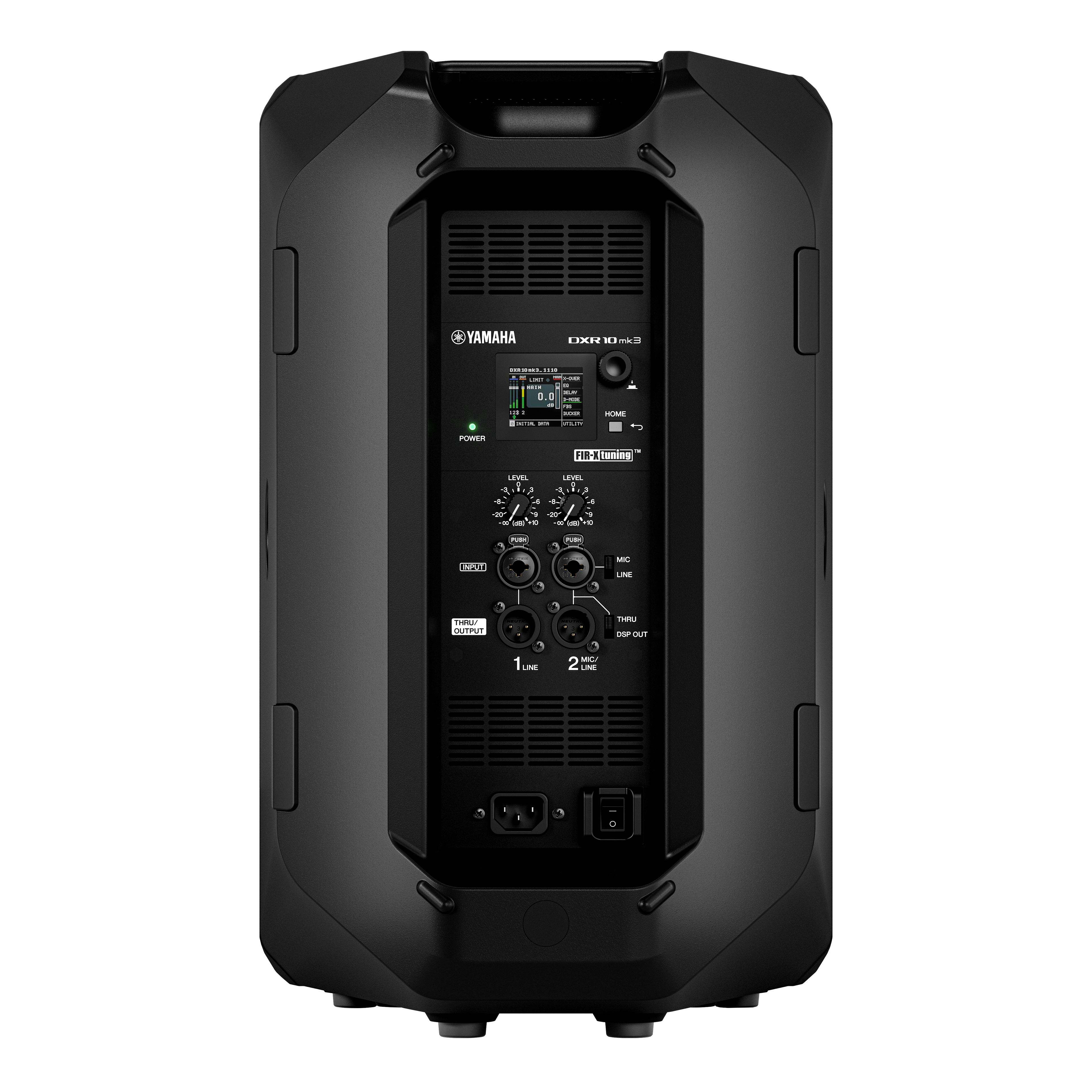

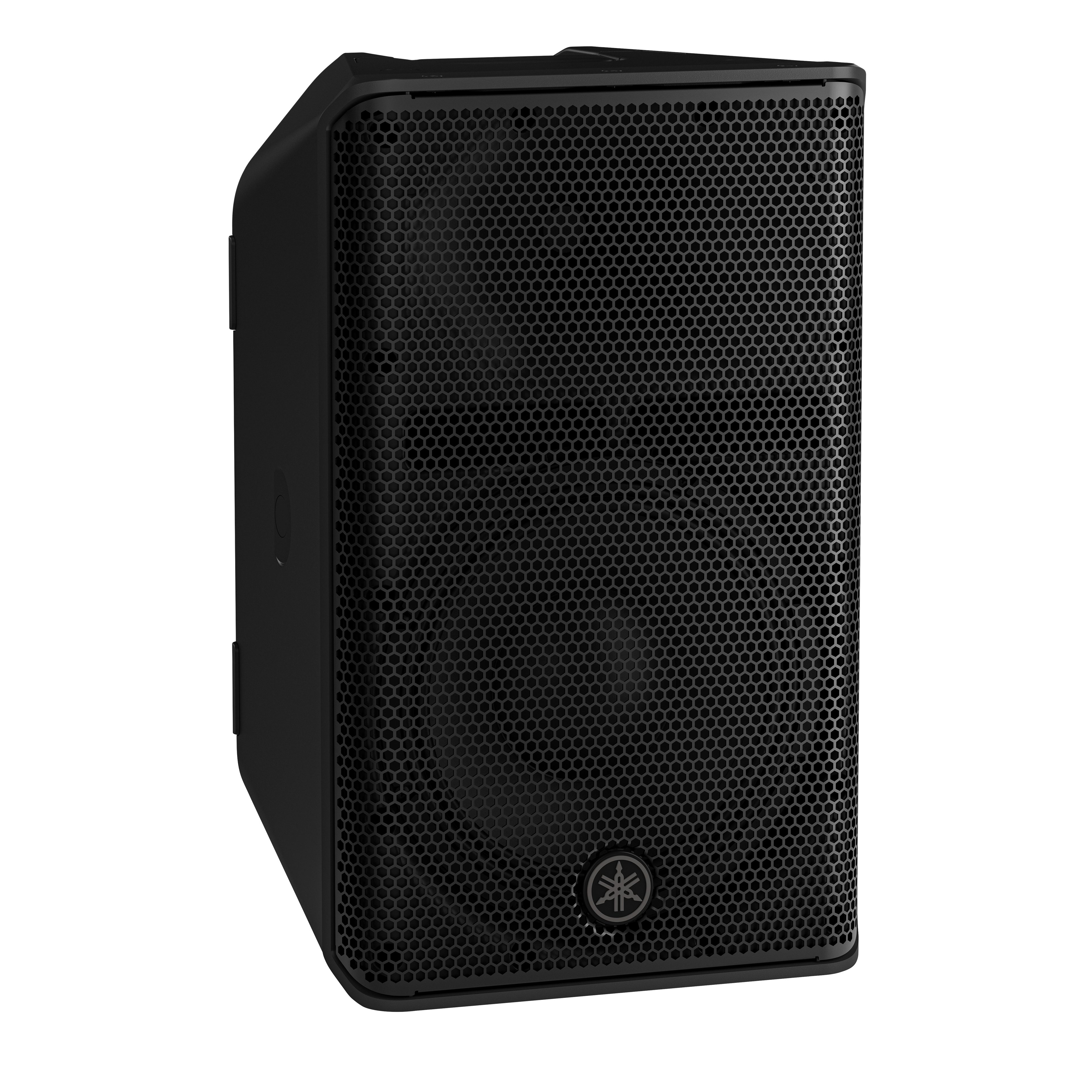

Yamaha DXR10MK3 10" Powered Loudspeaker
Yamaha DXR10MK3 10" Powered Loudspeaker
The DXR10 mk3 is a 2-way, bi-amped, powered loudspeaker and is the most compact model in the series, delivering exceptional clarity, precision, and a powerful 132 dB SPL output. Thanks to its compact, lightweight enclosure, it can function as a versatile utility speaker suitable for a wide variety of environments. Advanced DSP capabilities and a dedicated remote app add significantly more flexibility, with powerful features that enhance the overall user experience.
- 10" LF + 1.75" HF proprietary high-durability speaker units
- The large-diameter horn secures directivity control across a wide frequency range
- Optimized port positioning reduces standing wave effects
- Lightweight, high-performance, form-injection molded enclosure with a symmetrical, functional design
- Newly developed 2000W Class-D amplifier
- FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
- Drive Motion Calibration™, corrects the motion of the LF unit, producing a more linear low-frequency sound with high reliability
- DSP modes tailored for specific arrangements or applications. In particular, FOH/MAIN and MONITOR modes have an automatic setting function "AUTO V/H POSITION"
- Can be controlled remotely via an iOS or Android device using the dedicated D-Remote app
- Compatible with audio streaming via Bluetooth®
- Intelligent feedback suppressor automatically eliminates unpleasant feedback
- Optional UB-DXRDHR10A U-bracket allows both for vertical or horizontal use
- Optional SPCVR-DXR103 speaker cover protects speakers from rigors of equipment transport, lengthy storage, or outdoor performances
- Rigging points for use with eye bolts
- Dual-angle pole sockets offer both 0° or a -7° down tilt
Sound Changes Everything
One concert. One event. One bass drop. Often, the trajectory of your band, your brand, your business, or your career can be distilled down to a single, pivotal moment that changes everything. When that moment arrives you need to know that your audience is experiencing the full range of your expression and the sheer passion of your performance. The DXR mk3 Series continues the legacy of power and premium sound established by one of Yamaha’s most celebrated loudspeaker lineups, delivering higher output, outstanding flexibility, and the level of reliability that professionals the world over depend on for their most important performances. From the painstaking selection of premium component materials, to the development of intelligent, high-performance DSP features, every aspect of the DXR mk3’s design empowers users with the capability and confidence they need for those crucial moments when your sound makes all the difference in the world.
| Brand | Yamaha |
| Speaker size | 10" |
| Speaker type | Loudspeaker |
| Wattage | 2000w Class D |
