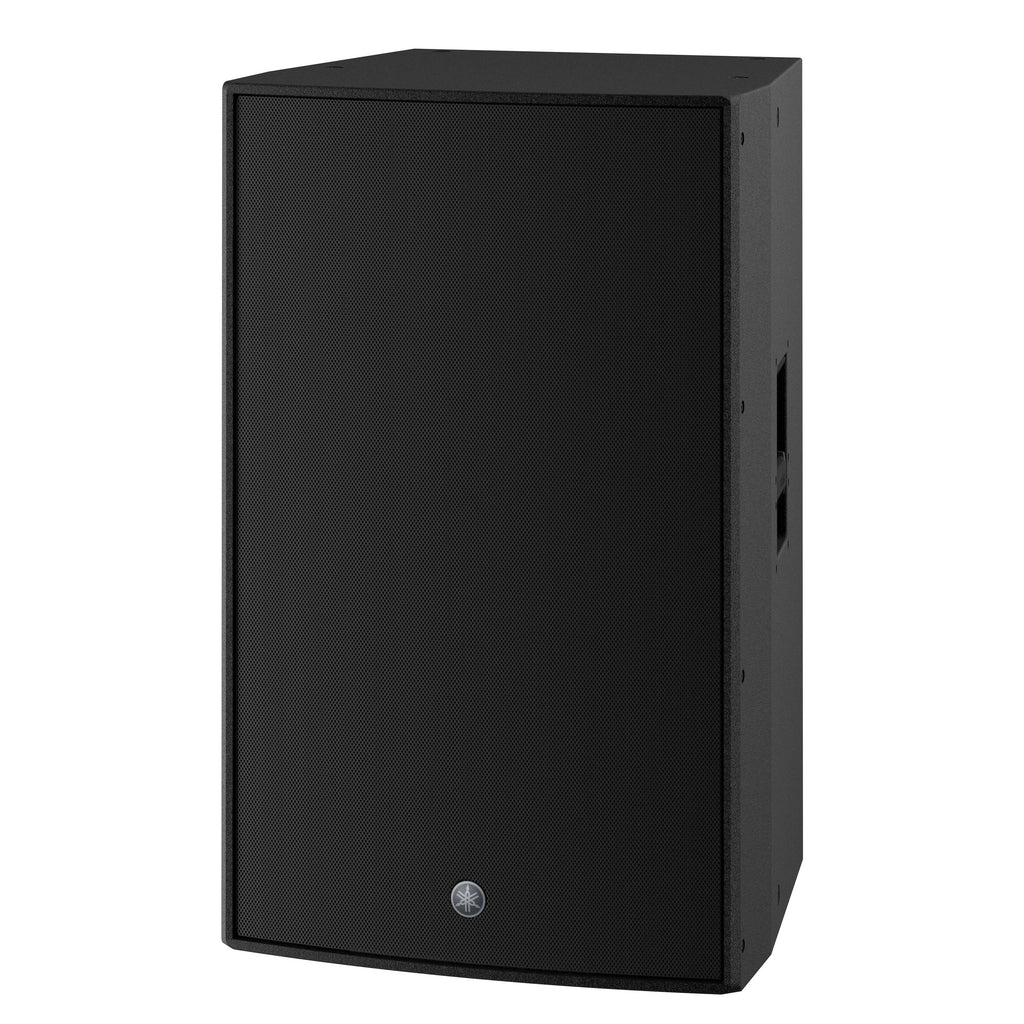

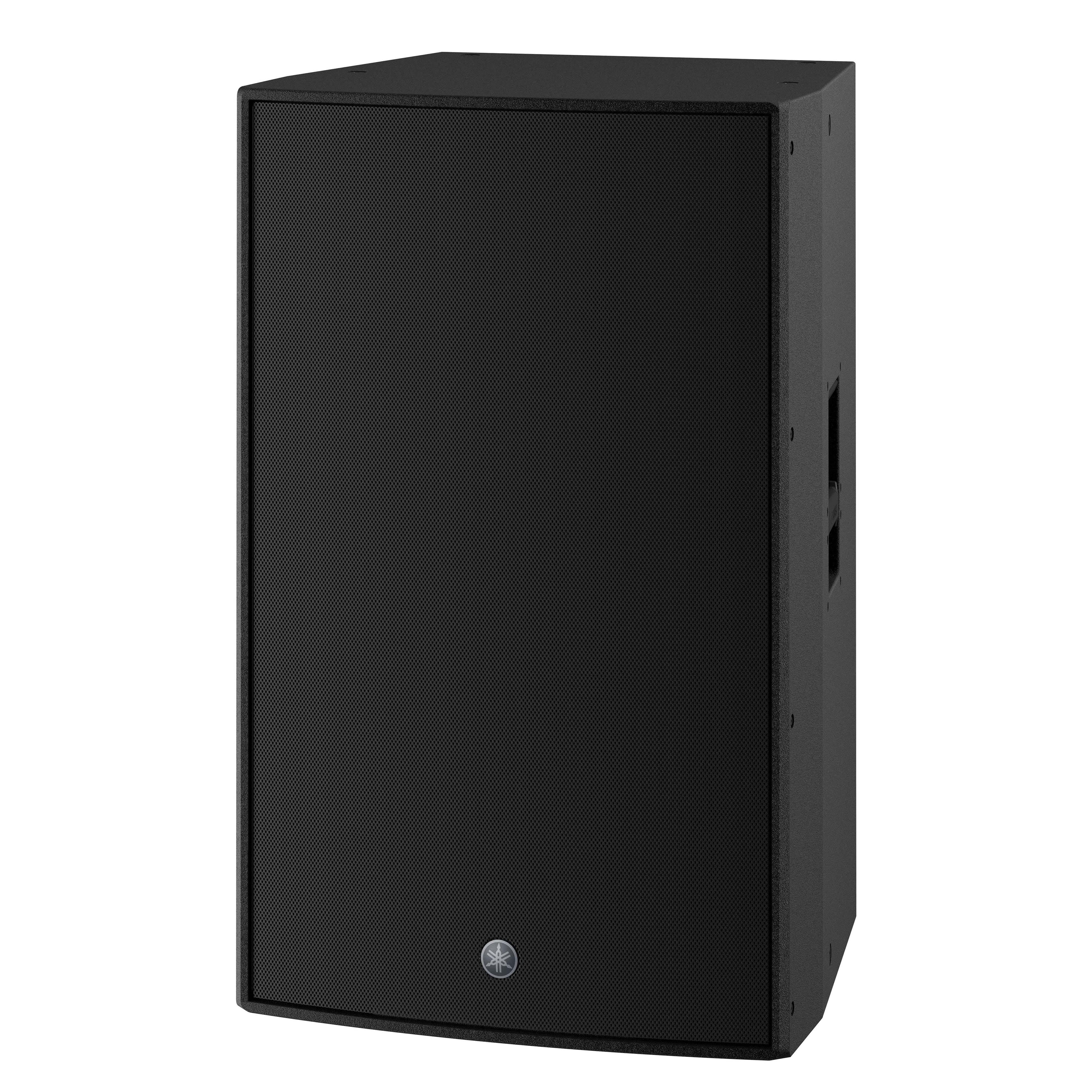

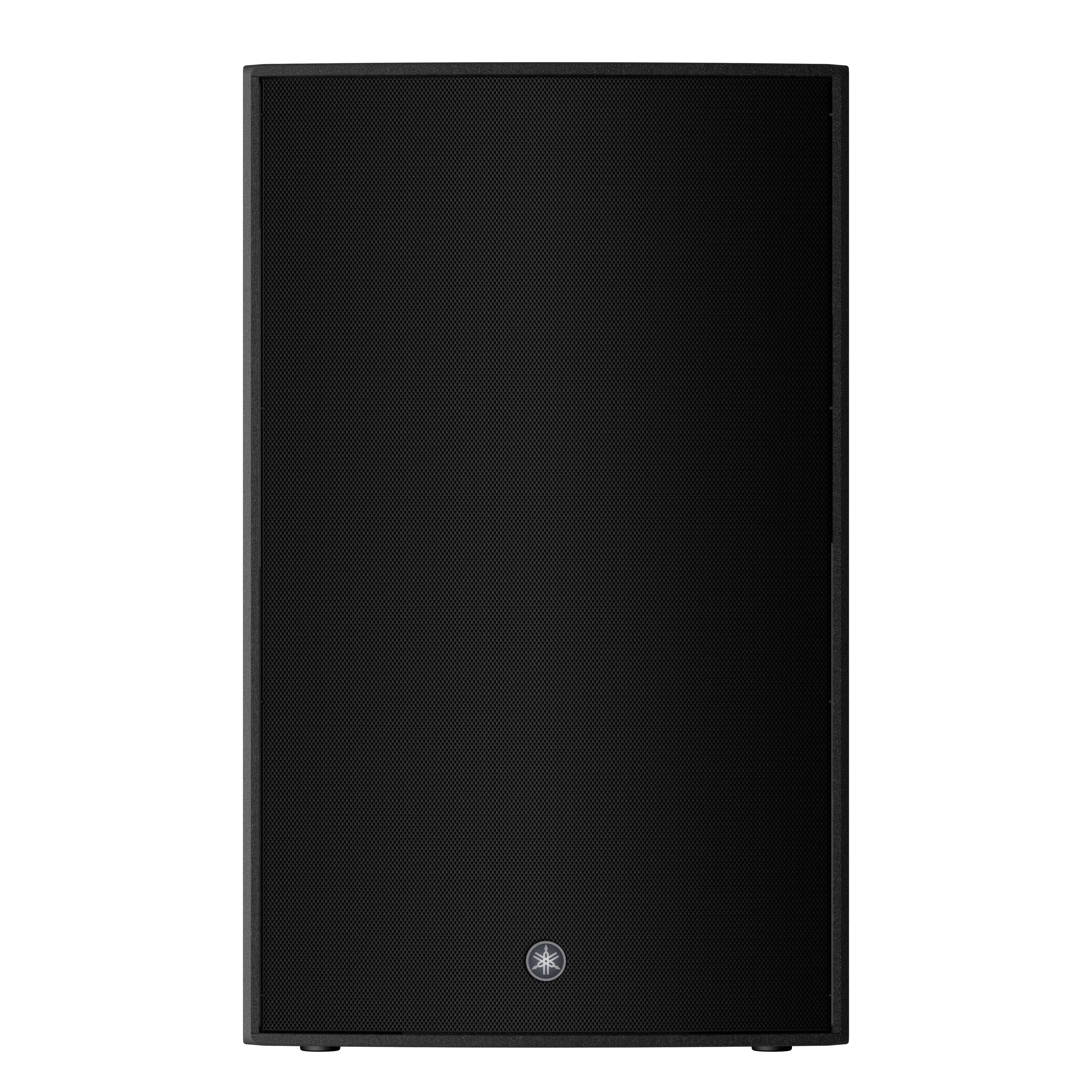

Yamaha DZR315 3-Way 15" Powered Loudspeaker

DZR-SERIES POWERED LOUDSPEAKERS

Best-in-class SPL performance, sophisticated DSP processing, unrivalled low-frequency sound reproduction - the new DZR delivers on all fronts, realising a truly professional sound with a level of power that belies its compact, lightweight design. The durable plywood cabinets feature a LINE-X coating with extremely high damage resistance to protect against scratches and wear. High power output woofers are equipped with a best-in-class 3” voice coil magnet that delivers well-defined, solid bass with very low distortion, while the 2” tweeters use a titanium diaphragm to deliver smooth top-end frequencies via rotatable horns. On-board DSP offers advanced signal processing and protection, accessible via an easy-to-read LCD panel.

The DZR315 is 3-way bi-amped powered loudspeaker and is the most powerful model in the DZR Series producing a maximum 143dB SPL with supreme clarity. Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency sound reproduction—the DZR315 delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design. Ideal for use in a front of house main PA, it also includes integrated M10 rigging points for suspended applications.

DZR315

• 3-way powered loudspeaker with a 2” HF, an 8 ” MF and a 15" LF
• Maximum 143dB SPL and 31Hz-20kHz frequency range is ideal for FOH main PA
• High power 2000W Class-D amplifier module
• 96kHz DSP and FIR filter for true high-resolution sound with super low latency
• Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
• Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
• D-Contour and highly reliable protection circuits
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
• Optional speaker cover (SPCVR-DZR315)

• 3-way powered speaker with 15-inch LF driver
• Delivers up to 143dB SPL with supreme clarity
• 96kHz DSP ensures high-resolution sound
• Advanced FIR-X tuning minimises phase distortion
• 2000W Class-D amp provides powerful output
• Durable plywood cabinet with Polyurea coating
• Easy adjustments via intuitive LCD display
