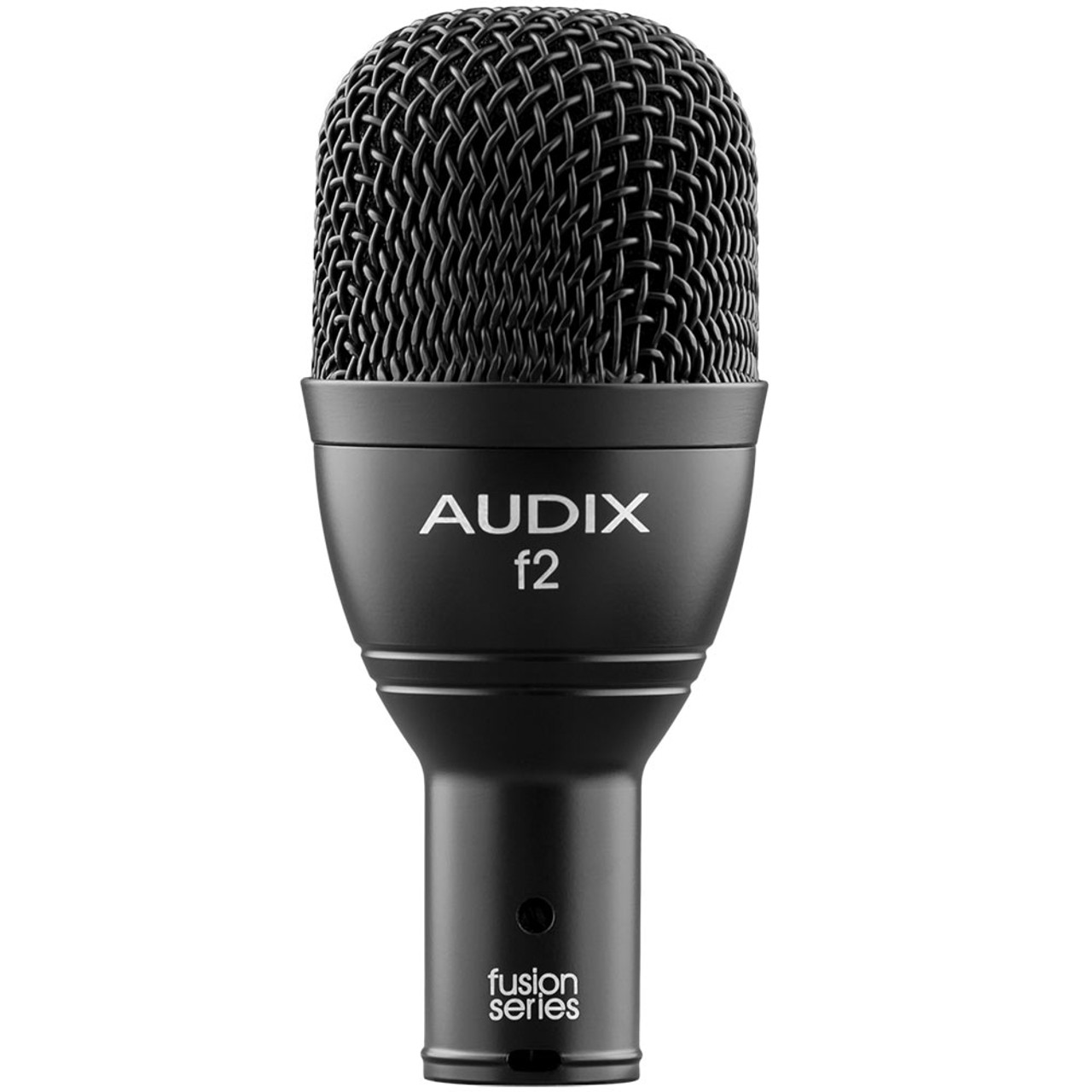

Audix ADX-F2 Fusion Dynamic Instrument Mic for Mid Bass / Toms

The Fusion Series are high-performance microphones in a cost-effective package.

The f2 dynamic instrument microphone is best used for miking instruments requiring mid-bass and mid-high reproduction in live and studio applications. Its Hypercardioid pick-up pattern helps to minimize feedback and isolate the instrument from ambient sound coming from the room or other instruments on stage.

Low impedance and balanced output on the f2 allow interference-free performance. Compact and durable, the f2 Hypercardioid instrument microphone features a cast zinc alloy body, steel mesh grille and gold plated XLR connector.

Designed, assembled, and tested by Audix in the USA.

What's in the box?
1x f2 Instrument Microphone
1x DCLIP Microphone Clip
1x P1 Carrying Pouch

Transducer Type
Dynamic
Frequency Response
52 Hz – 15 kHz
Polar Pattern
Hypercardioid
Output Impedance
580 ohms
Sensitivity
2 mV / Pa @ 1k
Capsule Technology
LM Type A
Off-Axis Rejection
>20 dB
Maximum SPL
≥139 dB
Power Requirements
None
Connector
3-pin XLRm
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Materials / Finish
Zinc Alloy / Black Finish
Weight
247 g / 8 oz
Length
104 mm / 4.09 in

• Hypercardioid pattern minimises feedback effectively
• Ideal for mid-bass and mid-high instrument miking
• Zinc alloy body and steel mesh grille for durability
• Low impedance ensures interference-free performance
• Balanced output for consistent sound quality
• Compact design with gold plated XLR connector
• Includes DCLIP mic clip and P1 carrying pouch
• Designed and tested in the USA by Audix
