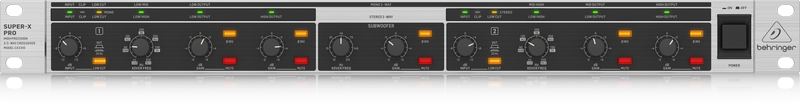

Behringer CX2310 v2 Super-X Pro Crossover

• Professional stereo 2-way/mono 3-way crossover featuring state-of-the-art Linkwitz-Riley filters with 24 dB/octave
• Additional subwoofer output with independent Frequency control
• Absolutely flat summed amplitude response, zero phase difference
• Individual output Gain controls for all bands
• Individual output Mute switches for easy band adjustment
• Individual Phase reverse switches for instant phase correction
• Switchable 25 Hz Low cut filter on each input for low-frequency driver protection
• Servo-balanced and gold-plated XLR connectors for all inputs and outputs
• Ultra-high precision potentiometers for ultimate accuracy and repeatability
• Illuminated switches for secure operation in dark stage environments
• Internal switch-mode power supply (100
• - 240 V~) for noise-free audio and low power consumption
• 3-Year Warranty Program*
• Designed and engineered in Germany

The CX2310 stereo 2-way/mono 3-way crossover provides amazing-accurate audio frequency separation, thanks to its state-of-the-art circuitry, superior-grade components, ultra low-noise op amps and balanced I/O connectivity. Additionally, the CX2310 features an independently-adjustable Subwoofer Output, effectively providing an extra low-frequency band a control range from 10 - 235 Hz. By using 1% metal film resistors, along with other extremely tight-tolerance components, the CX2310 is able to guarantee surgically-precise frequency selection with incredibly-low thermal noise. Put simply, the easy-to-use SUPER-X PRO CX2310 is one of the best-sounding crossovers in its class!

• State-of-the-art Linkwitz-Riley filters, 24 dB/octave
• Independent subwoofer output with frequency control
• Flat summed amplitude response, zero phase difference
• Gain controls and mute switches for each band
• Phase reverse switches for phase correction
• 25 Hz low cut filter for driver protection
• Gold-plated XLR connectors ensure quality audio
• Precision potentiometers for accuracy and repeatability
