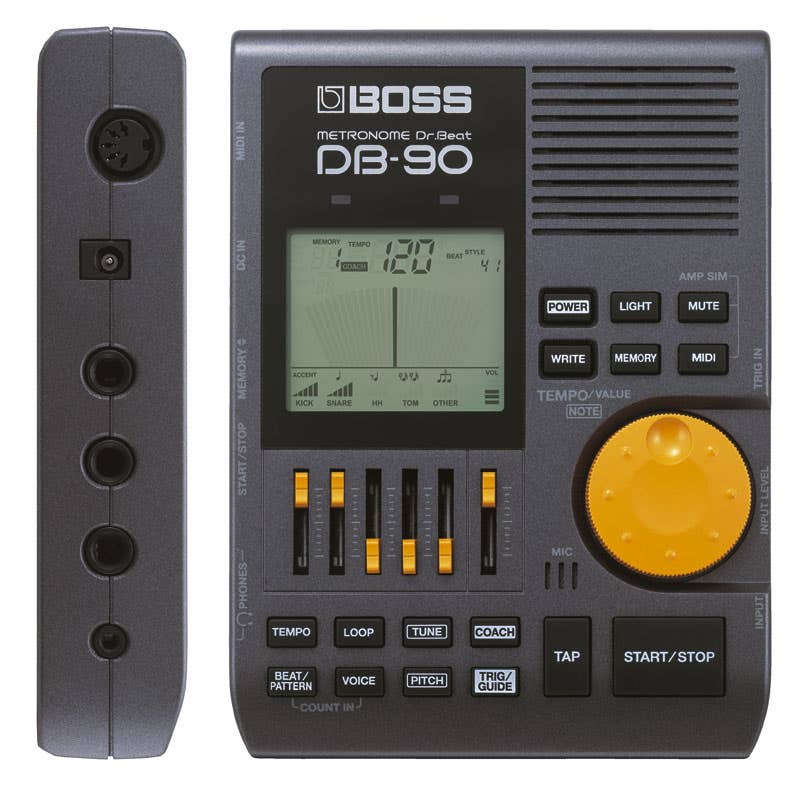

Boss DB-90 Dr. Beat (DB90)

Practice in style with the flagship of the Dr. Beat Metronome line.

Features

Practice in style with the flagship of the Dr. Beat Metronome line. The new DB-90 is loaded with quality sounds and drum patterns to make your practice sessions less mundane and more musical. There’s a Rhythm Coach function with an onboard mic, a reference-tone function for tuning, an Instrument input, MIDI input, and other handy tools to make learning fun and effective.

• The most advanced metronome available
• Trigger input to access unique Rhythm Coach exercises
• MIDI in for syncing to external sequencer tempos
• PCM sounds with “drum machineâ€ style patterns
• 50 memories
• Human-voice count

Better Beats, Better Practice
The Note Mixing function allows you to instantly create a variety of beats by adjusting the levels of five different note values. Front-panel sliders, buttons, and a large rotary dial provide instant, hands-on access to edit parameters. Select four different click sounds, including a human voice-counting sound that will help you know your place in the bar. The DB-90 is also equipped with realistic PCM drum patterns, for developing your accuracy and rhythmic feel effectively.

Plug Into Rhythm Coach
Expand your rhythmic horizons with Rhythm Coach. This innovative follow-along feature has four training modes to help build your accuracy, speed, and endurance. With the DB-90’s onboard microphone, you can use the Rhythm Coach functions with acoustic drums, or plug a Roland V-Pad into the Trigger input. Play along, and chart your progress.

Many Uses
Drummers can connect to the DB-90 via Roland V-Pads or the internal microphone. Guitarist and bassist can directly plug into the DB-90 without any other gear required, and monitor via connected headphones — practically any type of instrumentalist can benefit from the DB-90’s features. And for those who wish to sync to an external sequencer for more elaborate accompaniment, they can do so with the DB-90’s MIDI input. This stage-oriented feature is especially useful for drummers.

Specs

Metronome Tempo: 30-250 (Accuracy: ±0.1%)
BEAT: (BEAT1) 1–9, (BEAT2) OFF/1–9
PATTERN: 8-BEAT x 4, 16-BEAT x 3, SHUFFLE x 3, FUNK x 2, JAZZ x 2, BLUES, TECHNO, HOUSE, COUNTRY, REGGAE, CLAVE 3-2, CLAVE 2-3, SALSA, RUMBA, BOSSA NOVA, SAMBA, WALTZ, TANGO, MAMBO, CHACHACHA, MARCH (30 kinds) RHYTHM COACH Time Check, Quiet Count, Gradual Up/Down, Step Up/Down Reference Tone Reference Pitch: A4=438 Hz-445 Hz (1 Hz steps)
Reference Tone Range: C2-B6 (5 octave, 12 semitone) Memory Metronome: 50
Reference Tone: 10 Auto Power Off function Turns unit off after 60 min Indicators LCD Display, Tempo Indicator LED x 2 Connectors TRIG IN jack
START/STOP jack
MEMORY UP/DOWN jack
MIDI IN connector
PHONES jack x 2 (Stereo 1/4" phone type, Stereo miniature phone type)
INPUT jack
AC ADAPTOR jack Power Supply DC-9V: Dry Battery (6LR61/9V, 6AM6/9V) or AC adaptor (PSA series) Current Draw 85 mA (max.) Accessories Dry Battery
Soft case
Owner’s Manual Size and Weight ( incl. battery ) Width 122 mm 4-13/16 inches Depth 164 mm 6-1/2 inches Height 38 mm 1-1/2 inches Weight 0.5 kg 1 lbs. *The specifications are subject to change without notice.

Assets

Support
• BOSS forges into 2008 with an awe-inspiring lineup of effects, digital studios, and accessories." >BOSS Product Catalog 2008
• DB-90 Q&A
• DB-90 Manual (PDF)
• V-Drums Catalog 2011 Vol. 1
• BOSS Product Catalog 2011

• Advanced metronome with 30-250 bpm range
• Features 30 rhythm patterns including jazz and samba
• Trigger input for unique Rhythm Coach exercises
• MIDI input for syncing with external sequencers
• 50 memory slots for custom metronome settings
• Human-voice count for enhanced practice sessions
• Includes realistic PCM drum patterns for accuracy
• Plug and play for drummers and guitarists alike

Brand	Boss
Warranty	2 Year
