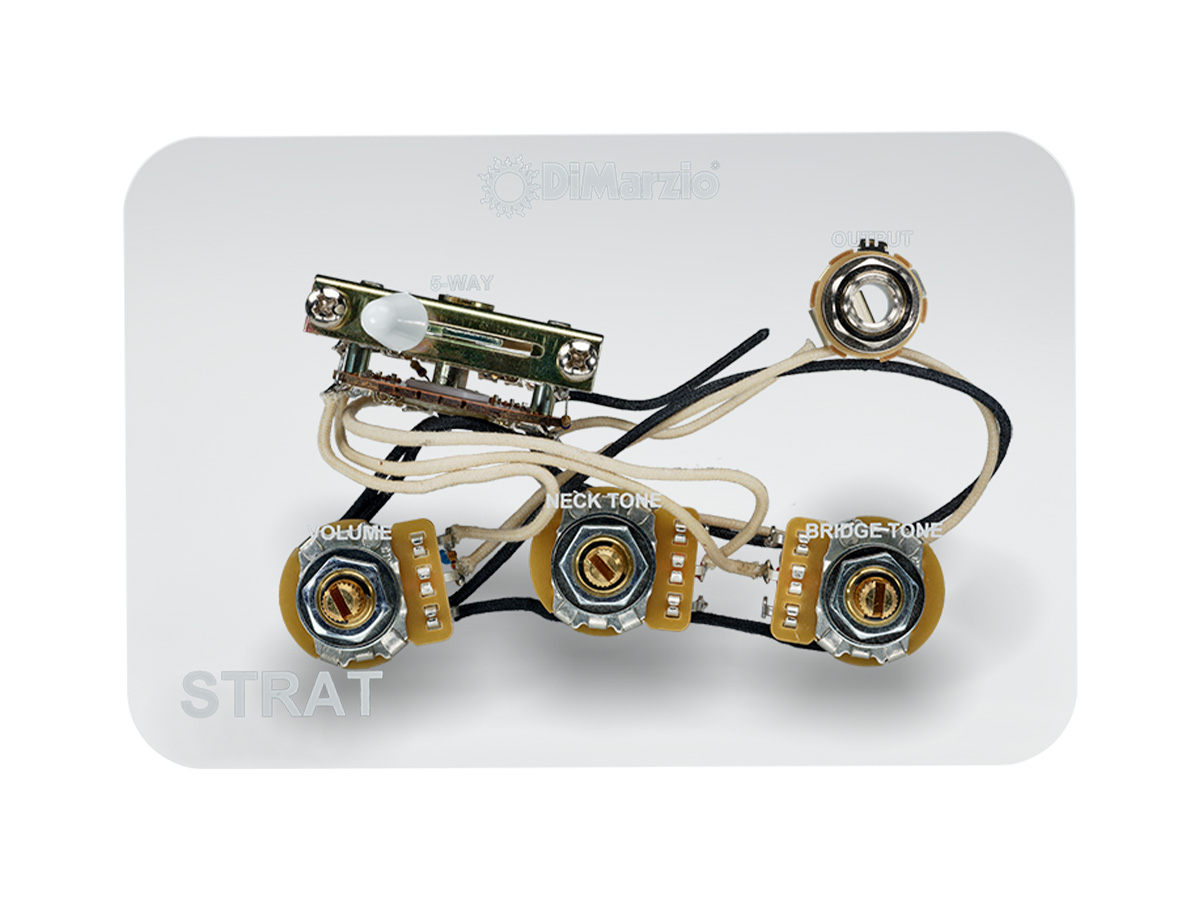

Dimarzio DIMC91 HSS Strat Super-Switch Wiring Harness

Premium Oak-Grigsby 5-way super switch configured to split the bridge humbucker when combined with the middle pickup (position 2). By using parallel resistance, the single coil pickups sound like they are connected to a 250K pot, while the humbucker still sees the full resistance of the 500K pot. Switchcraft output jack. 1 x 250K custom taper and 2 x 500K custom taper pots. 2 x 470K ohm resistors. Sprague orange drop .022uf, 100v capacitor. Treble bleed circuit with 1x 560pF cap and 1x 300K ohm resistor. 22 gauge Gavitt vintage hook-up wire. Recommended for Standard US Strats® and similar HSS guitars. Note: Direct replacement for the standard d inch holes found on most Fender® guitars

• Premium Oak-Grigsby 5-way super switch
• Bridge humbucker splits for versatile tones
• Single coils connected to 250K pot for clarity
• Humbucker retains full 500K pot resistance
• Switchcraft output jack ensures reliability
• Sprague orange drop .022uf, 100v capacitor
• Treble bleed circuit maintains high-end tones
• 22 gauge Gavitt vintage hook-up wire used
