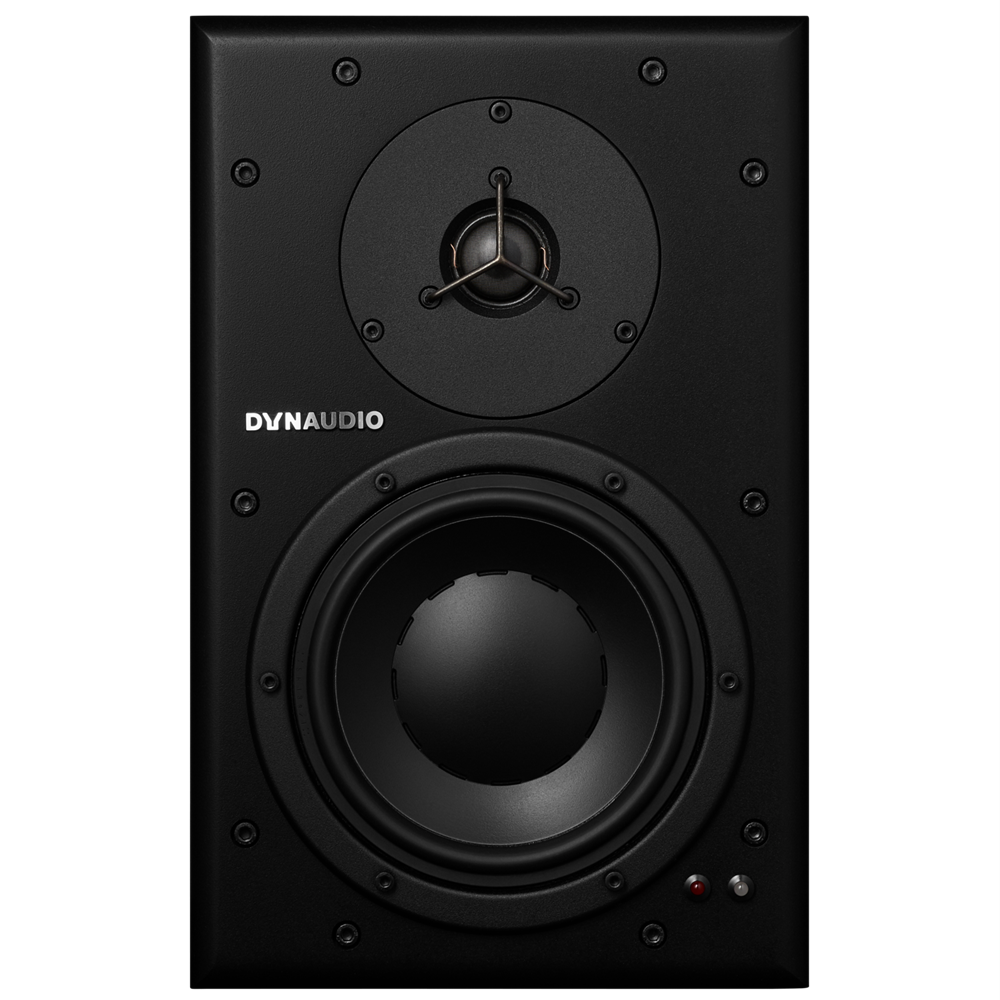

Dynaudio BM6A 2-Way Active Nearfield Monitor - SINGLE
Dynaudio BM6A 2-Way Active Nearfield Monitor - SINGLE
The BM 6A features an electronic 4th order phase-aligned crossover with a crossover point at 2.2kHz, which feeds two high performance discrete MOSFET amplifiers rated at 100W each.
The low frequency section is driven by a low frequency equalizer offering a choice between extended, critical damped response or more conventional higher Qt response for more level but less low frequency output. Included in the electronics is a complex protection circuit, which helps to prevent accidental damage to the drivers, yet still providing maximum transient response.
The BM 6A is housed with an elegant matte cabinet with radius edged construction on the front baffle to reduce boundary effects and improve overall sound quality.
- Two high performance discrete MOSFET amplifiers
- 4th order phase-aligned crossover
- Handcrafted drivers with aluminum voice coils
- Made in Denmark
SPECS:
- System: 2-way Active Nearfield Monitor
- Frequency Response: 41 Hz - 21 kHz
- Max SPL 1m, pair (IEC Long Term): 118 dB RMS
- Max SPL 2m, 5.1 (IEC Long Term): 119,5 dB RMS
- Input level for 85 dB SPL @ 1m (+4/-10): -12 dBu RMS / -28 dBu RMS
- Input level for max peak SPL (+4/-10): +16 dBu peak / -1 dBu peak
- Power consumption: Idle: 25 W / Max: 200 W
- Amplifier power: Tweeter: 100 W / Woofer: 100 W
- Resonance Frequency: 49 HzSpecification sheet for Classic BM Range part 1
- Internal Cabinet Volume: 9,5 liters
- Principle: Bass reflex
- Crossover Frequencies: 2200 Hz
- Crossover Slope: 24 dB/oct
- Tweeter: Esotec 28 mm soft dome, rear chamber, Magnetic fluid. 4 mm die-cast alu front,
- Woofer: 17 cm, 75 mm pure alu wire voice coil, One piece molded polypropylene cone
- Weight: 11 kg
- Dimensions (WxHxL): 217 x 338 x 321 mm
- Two 100W MOSFET amplifiers for powerful sound
- Phase-aligned crossover ensures superior audio clarity
- Customisable low frequency equalizer for sound tuning
- Elegant matte cabinet with reduced boundary effects
- Handcrafted drivers with aluminium voice coils
- Wide frequency response from 41 Hz to 21 kHz
- Compact design with only 11 kg weight
| Brand | Dynaudio |
| Country of origin | Denmark |
| Warranty | 1 Year |
| Built-in effects | No |
| Active/Passive | Active |
| Bluetooth | No |
| Speaker inputs | 2 |
| Power source | Mains |
| Speaker size | 17cm |
| Speaker type | Studio Monitor |
| Wattage | 200w |
| Adjustable counterweight | No |
| Dust cover included | No |
| Headshell included | No |
| Built-in preamp | No |
