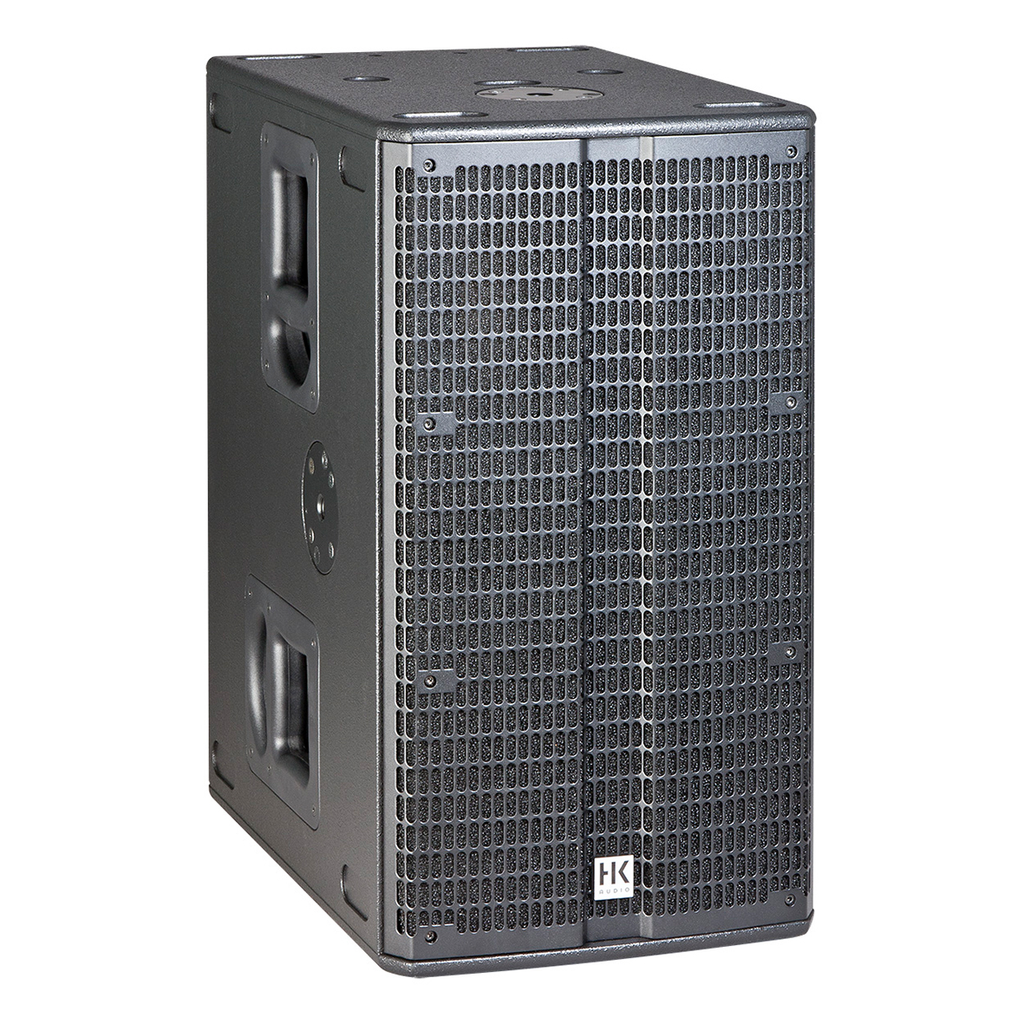

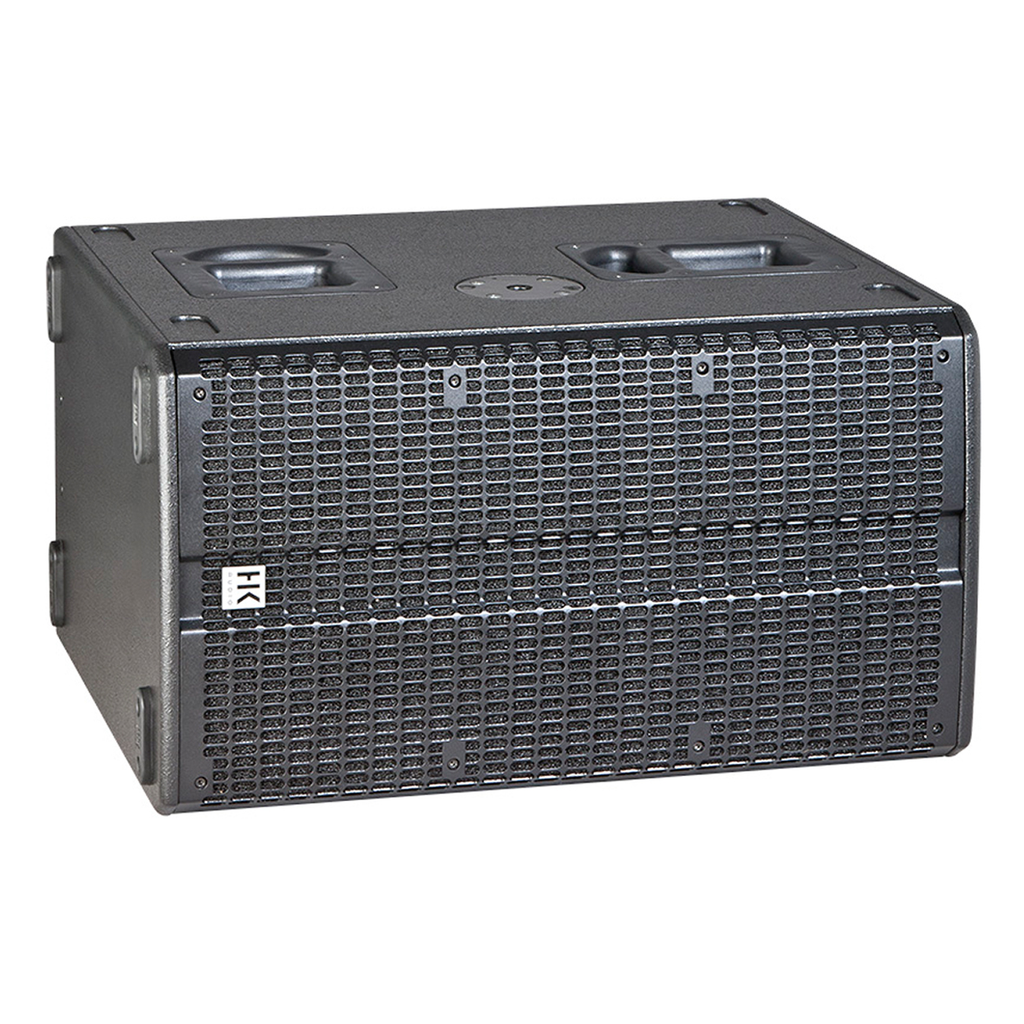

HK Audio Linear SUB 1200 Passive Subwoofer
HK Audio Linear SUB 1200 Passive Subwoofer
Compact, lightweight system subwoofer in a bass reflex cabinet. It is ideal for band systems and makes for powerful subwoofer stacks when paired with the active Linear Sub 1200 A. The two 10″ woofers deliver fast and precise bass with plenty of punch and low bass down to around 45 Hz.
Technical Data
Power-handling nominal (RMS) 600 W
Power-handling, program 1200 W
Frequency response +/-3 dB 51 Hz – 150 Hz
Frequency response -10 dB 42 Hz – 150 Hz
Sensitivity 1 W @ 1 m 100 dB half space
Max. SPL @ 10% THD 127 dB half space
Max. SPL peak @ 10% THD 130 dB half space
Electrical impedance 8 ohms
Low-/mid speaker 2x 10", 2.5" voice coil featuring advanced cooling technology
Crossover frequency controller driven

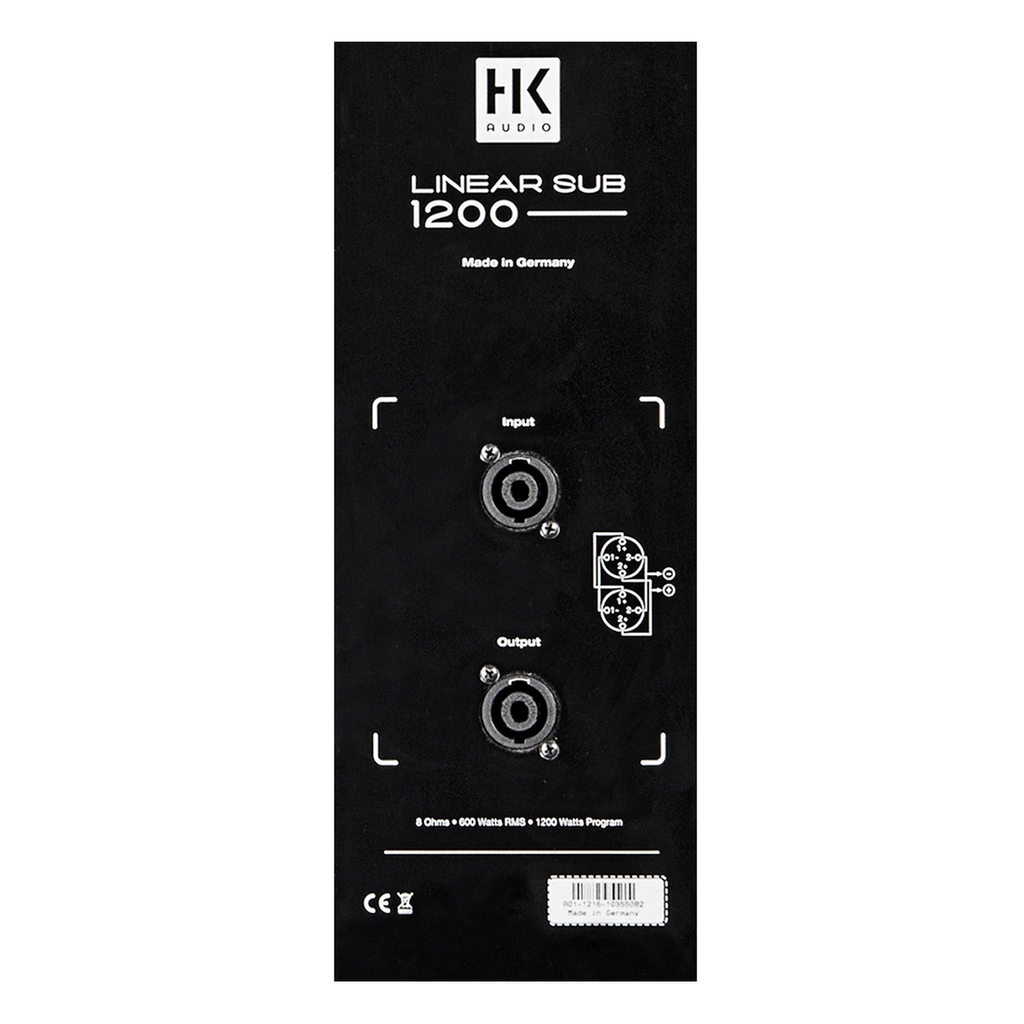

Connections 2x Speakon NL4
Integrated pole mount 2x M20
Carrying handles 4x MultiGrip
Housing Birch multiplex
Finish Acrylic enamel, black
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 38 x 66.8 x 56 cm 14-31/32 x 26-19/64 x 22-3/64"
Weight 29 kg / 63.9 lbs
- Compact, lightweight design for easy transport
- Dual 10″ woofers deliver fast, precise bass
- Handles 600W RMS, 1200W program power
- Frequency response ranges from 42 Hz to 150 Hz
- High sensitivity of 100 dB ensures clear sound
- Sturdy birch multiplex housing with black finish
- Integrated pole mount for easy setup
| Brand | HK Audio |
| Warranty | 5 Year |
| Built-in effects | No |
| Active/Passive | Passive |
| Bluetooth | No |
| Speaker size | 2x 10" |
| Speaker type | Subwoofer |
| Wattage | 1200w |
