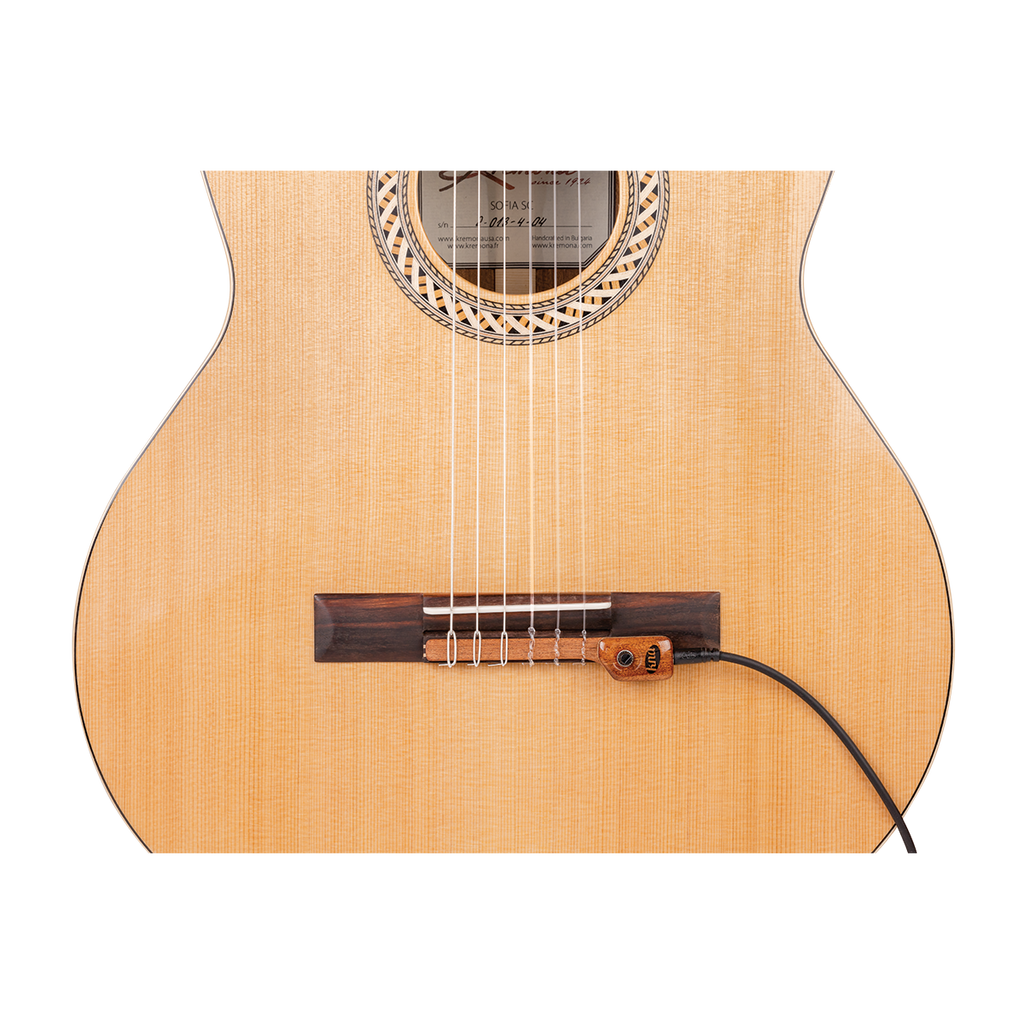

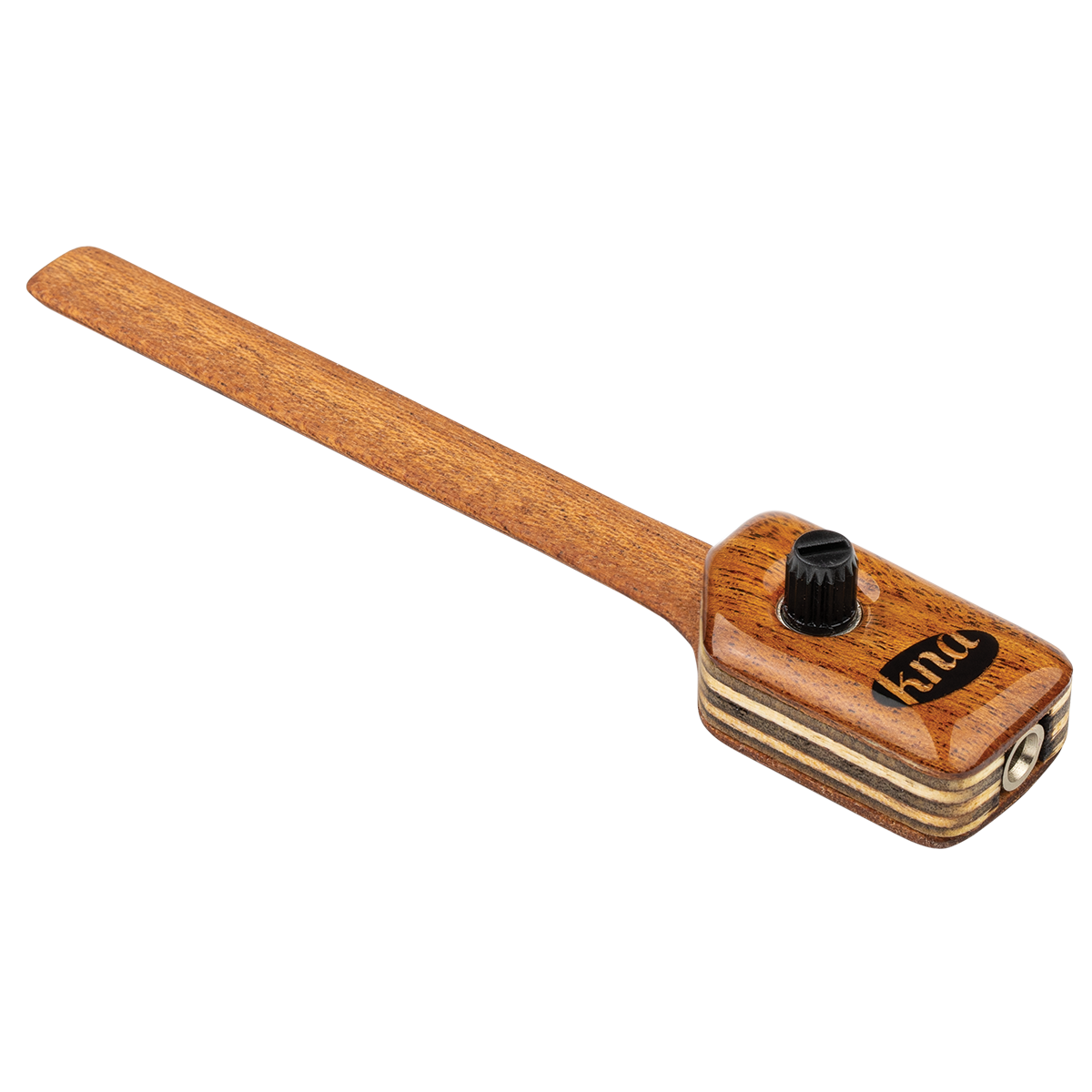

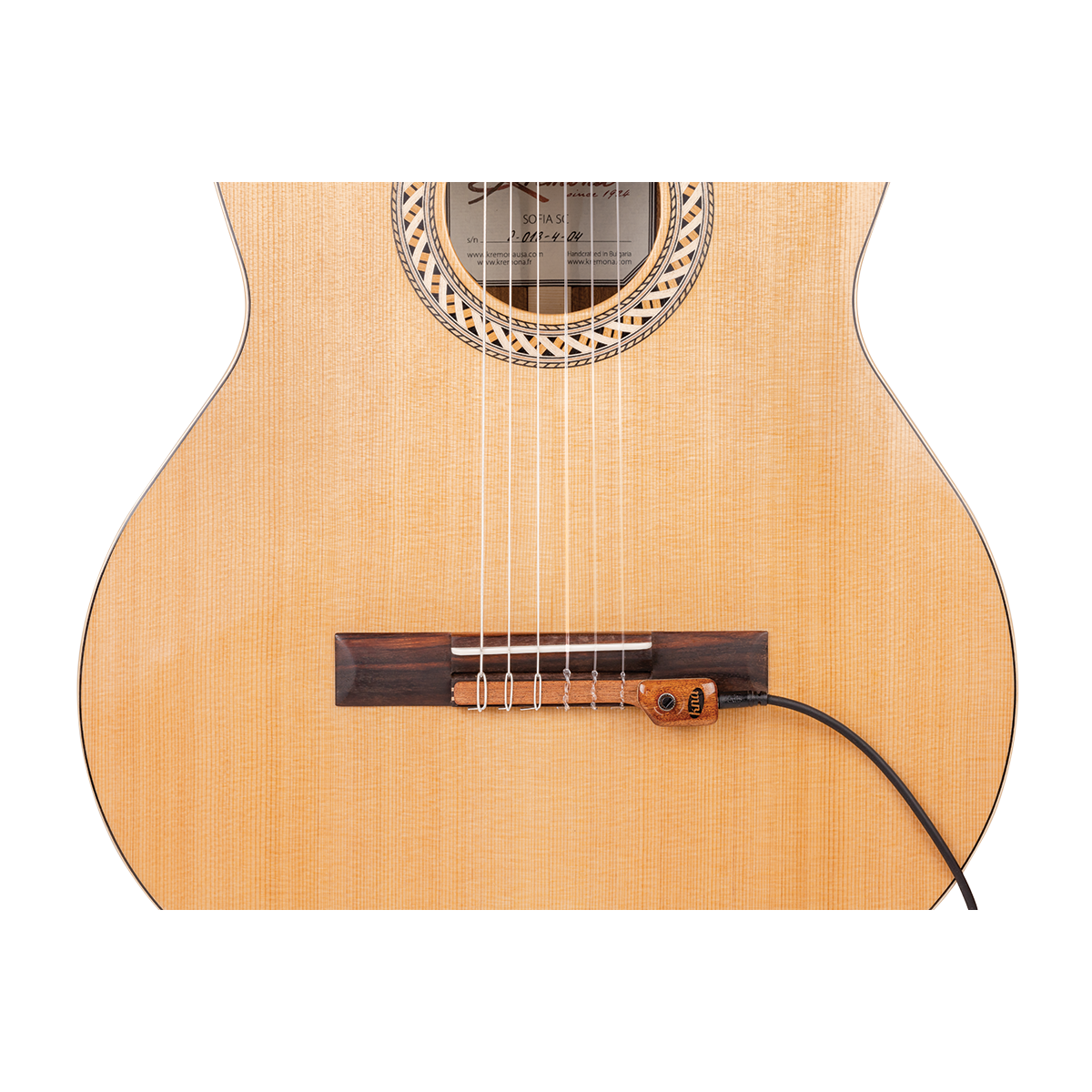

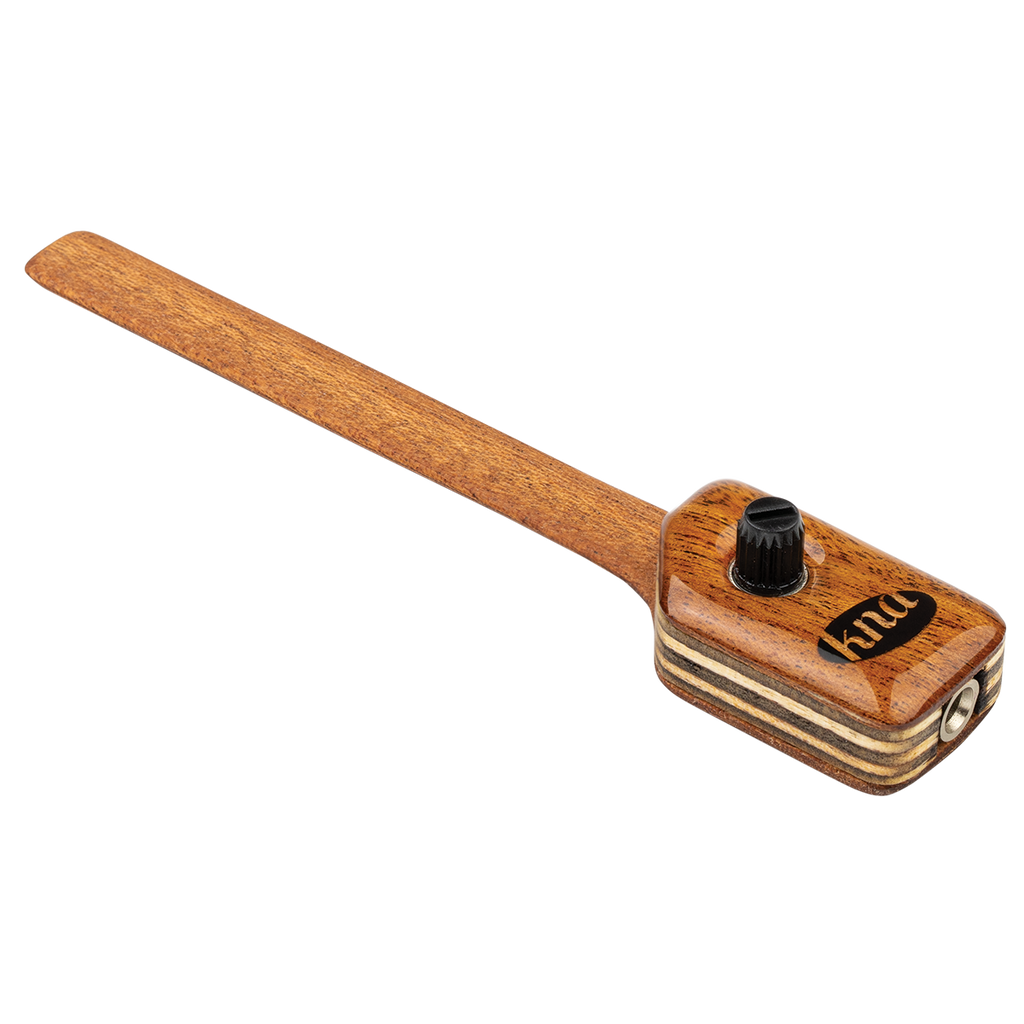

KNA Pickups NG-2 Classical Guitar Pickup with Volume Control

With onboard volume control, NG-2 is a versatile choice for guitarists who need a piezo guitar pickup to amplify the natural sound of their instrument. Live or in the studio, it's a classical guitar pickup that brings true nylon-string sound, and does it without an installation that requires modification. Unlike other guitar pickups, NG-2 installs safely and securely on the classical or flamenco guitar tie block utilizing the tension of the strings. NG-2 is a passive classical guitar piezo pickup system designed to work flawlessly with your favorite acoustic amplifier or preamp. Two cables are included – plug in directly with the 9-ft. 1/8" to 1/4" cable, or use the 3-ft. 1/8" to female 1/4" jumper with safety clip to connect with the instrument cable of your choice.

SPECIFICATIONS
Weight 7.5g. / 0.26oz
Overall length 105.5mm / 4.15"
Height / jack housing 16.3mm / 0.64"
Active element measurements
Length 73mm / 2.87"
Width 9.6mm / 0.38"
Thickness

2mm ± 0.05mm

0.079" ± 0.002"

Wood Mahogany
Maximum Impedance 500 Ω
Cables
Jumper cable with safety clip 1meter / 3'
Amp cable 3meter / 9'

KNA pickups feature a lightweight assembly to achieve maximum tonal sensitivity. Use care when installing and transporting. When left installed, be sure your instrument case or bag has ample room to accommodate the pickup when closed. Exercise caution to avoid entanglement with the pickup cable when in use. Damage caused by misuse or improper / poor installation is not covered under warranty

• KNA NG-2 offers onboard volume control
• Easy installation without guitar modification
• Versatile piezo pickup for true nylon-string sound
• Securely attaches using string tension
• Includes two cables for flexible connection
• Lightweight design for maximum tonal sensitivity
