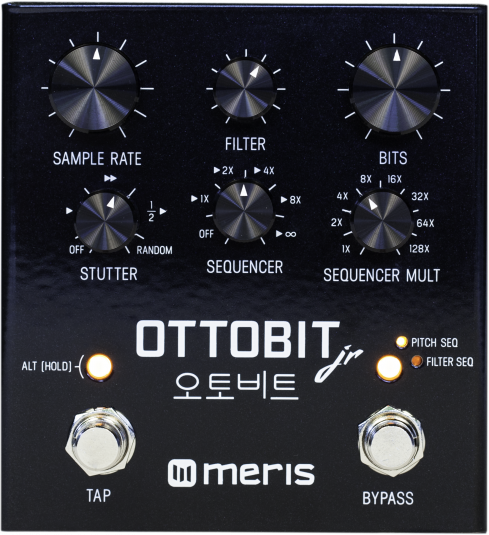

Meris Ottobit Jr. Arcade Effect Pedal

Ottobit Jr. | A Maniacal Little Machine, inspired by vintage gaming consoles.

Arcade Dreams Reborn. Did I stutter? Yes I did. An era when silicon defined sonics that were burned in our memory for years… Ottobit Jr. brings those sounds directly to your pedalboard. To call it a bitcrusher would be an insult. The triggered stutter and pitch/filter/crush sequencers take you to side scrolling, coin collecting maze worlds. Add in a resonant low pass that competes with the best analog synths and grandpa SID would be proud.

Features:

• Handcrafted Algorithms
• Variable Sample Rate and Bit Crushing
• Vintage Synth inspired Low-Pass Filter
• Triggered Stutter Effects
• Sequencer module for Pitch, Filter or Decimation pattern sequencing
• Tap Tempo for Sequencer and Stutter
• Stereo input and output
• Switchable input/output headroom level for Guitar, Synthesizer or Line levels
• Expression pedal control over all parameters simultaneously
• Presets available via external 4-Preset switch or MIDI
• MIDI in/out over TRS via the EXP jack
• Remote Tap Tempo Switch capable via the EXP jack
• Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP
• Premium Analog Devices JFET input section
• Color – glossy black with subtle flake
• Designed and built in Los Angeles, California U.S.A.

Specs:

• Premium quality 24 bit A/D and D/A
• 32 Bit floating point DSP hardware
• Premium low noise Analog signal path throughout
• Analog Devices JFET input circuitry
• Selectable True Bypass (Relay) or Analog Buffered Bypass
• Durable black powder coat with fine metal flake
• Current draw < 150 mA *POWER SUPPLY NOT INCLUDED IN AUS*
• Dimensions – 4.25″ wide, 4.5″ long, 2″ tall

• Vintage gaming console-inspired sound design
• Handcrafted algorithms for unique effects
• Variable sample rate and bit crushing features
• Triggered stutter effects for dynamic sounds
• Sequencer module for pitch and filter patterns
• Tap tempo for precise control in live settings
• Stereo input/output for versatile connections
• Expression pedal control over all parameters
