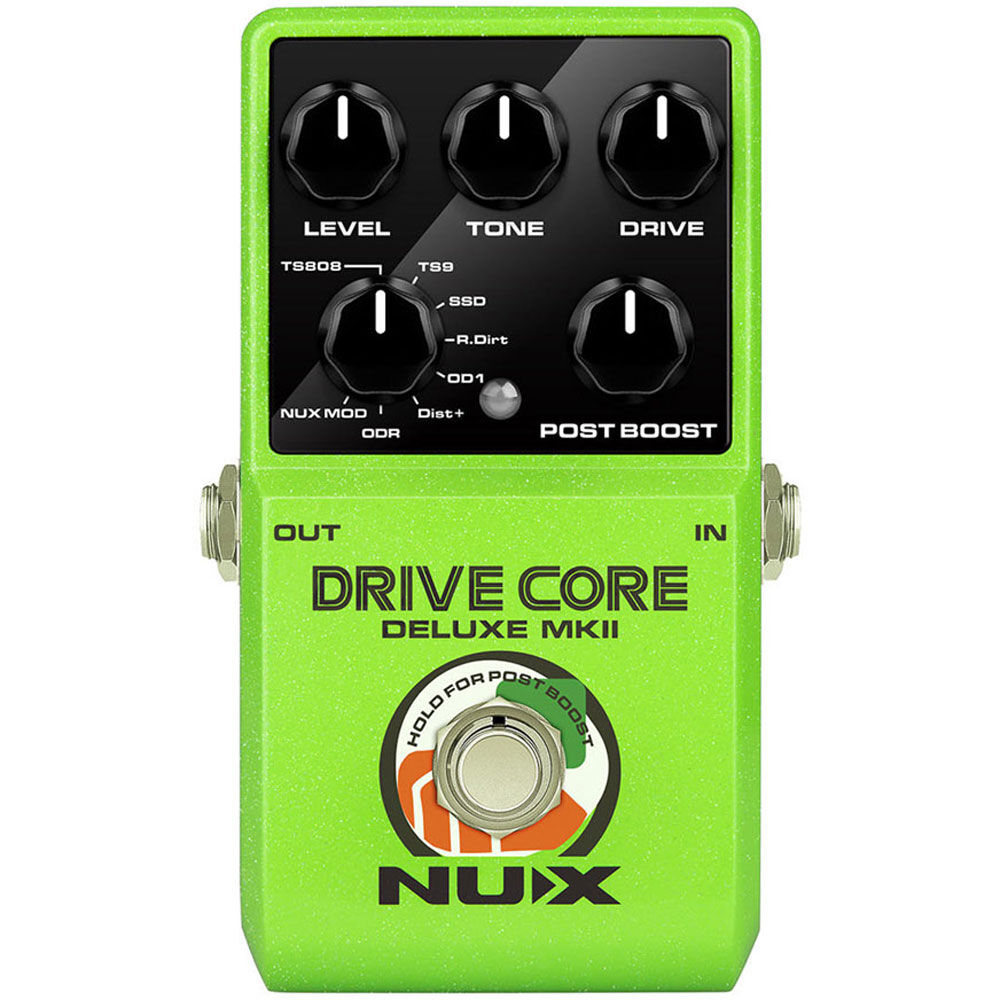

NU-X Core Stompbox Series Drive Core Deluxe MKII

8 iconic drive circuits in one pedal. The NU-X Drive Core Deluxe MKII (Wasabi Drive) is an overdrive pedal that combines 8 distinct circuits, offering a wide range of tones. From the iconic Texas Blues to the Nashville Overdrive, you can effortlessly dial in your perfect drive sound using the intuitive rotary knob.

FEATURES:

100% analog circuits with digital switching rotary knob
True bypass
8 iconic drive circuits in one pedal
Holding FOOTSWITCH to engage/disengage the Post Boost.

SPECIFICATIONS:

Input impedance: 500kOhms
Output impedance: 820Ohms
Power: 9V DC (Negative tip, Optional ACD-006A adapter)
Current Draw: 35mA
Dimensions (L x W x H): 122 x 72 x47mm
Weight: 270g

100% Analog Circuit and Lossless Tone Switching
The DRIVE CORE DELUXE MKII features a 100% pure analog circuit with 8 distinct TS-style sounds, effortlessly switched via high-quality relay circuitry, ensuring no loss of tone and achieving a perfectly authentic sound reproduction.

Perfectly Excels as Both a DRIVE BOOST and MAIN TONE OVERDRIVE
By holding the footswitch, you can engage or disengage the Post Boost, adding up to 7dB of gain, making it ideal for solos without the need for an additional boost pedal.

• Eight iconic drive circuits in one pedal
• 100% analog circuits ensure authentic sound
• Enjoy lossless tone switching with digital knob
• True bypass for transparent tone quality
• Engage Post Boost for additional 7dB gain
• Compact design: 122 x 72 x 47mm, 270g weight
• Power with 9V DC for optimal performance
