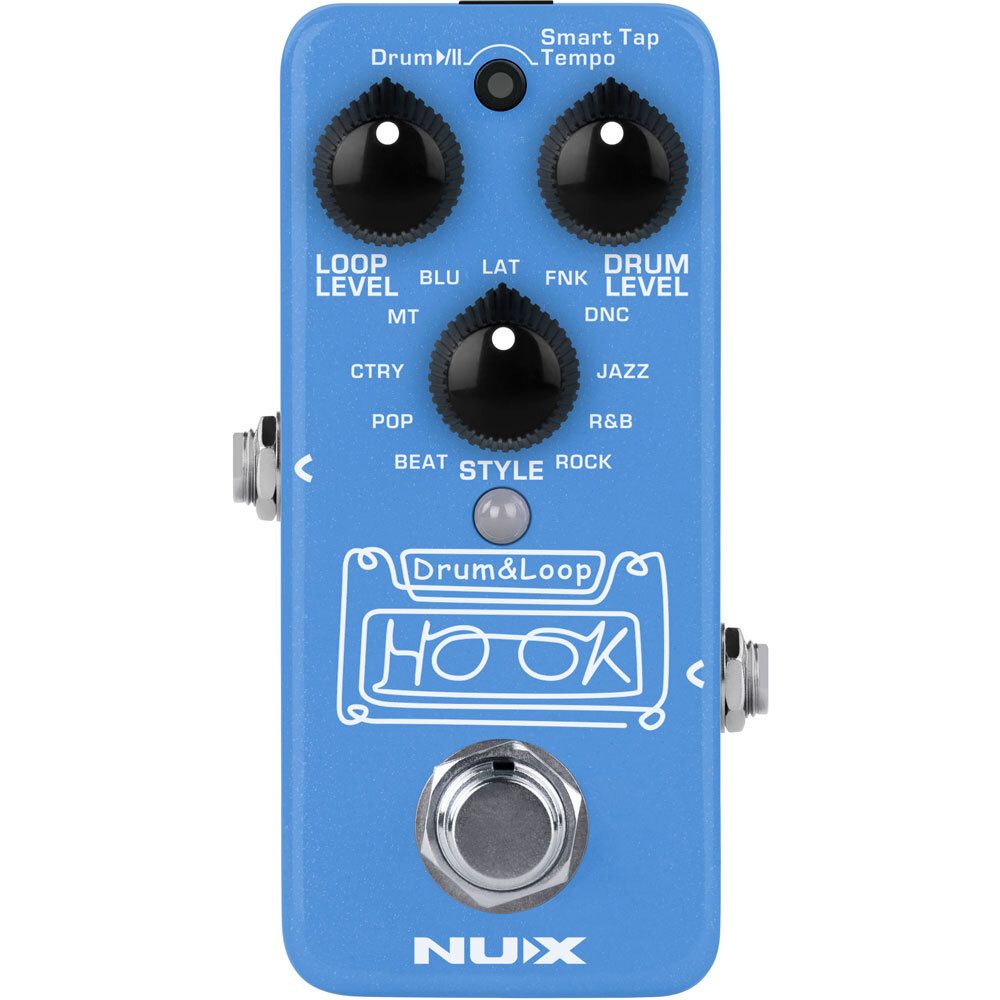

NU-X Mini Core Series HOOK Drum & Loop Effects Pedal

The HOOK Drum & Loop (NDL-3) is a mini looper pedal with auto tempo detection. Simply record a phrase loop, then add a synchronized drum beat. Or you can use the included Smart Tap Tempo and play the drum beat, then start to record the phrase loop. The HOOK is intelligent and simple to operate.

FEATURES:

24-bit phrase loop with auto tempo detection rhythm in a mini enclosure.
11 rhythm styles with Smart Tap Tempo.
Up to 6 minutes recording, unlimited overdubs.
Drum and Loop volumes can be adjusted separately.
Independent loop & drum playing.
True-bypass and analog dry-through.
1/8" phones out for silent practice.
Low power consumption. (less than 100mA)
USB-C port for firmware update, file import/export.
SPECIFICATIONS:

Input Impedance: 1M ohms
Output Impedance: 10K
Phones Output Impedance: 10 ohms
Dynamic Range: 103 dB
DSP Processing: 44.1KHz / 32-bit
A/D D/A Sampling Rate: 48KHz / 24-bit
Power: 9V DC (Negative tip, Optional ACD-006A adapter)
Current Draw: Less than 100mA
Dimensions (L x W x H): 94 x 51 x 53mm
Weight: 175g
