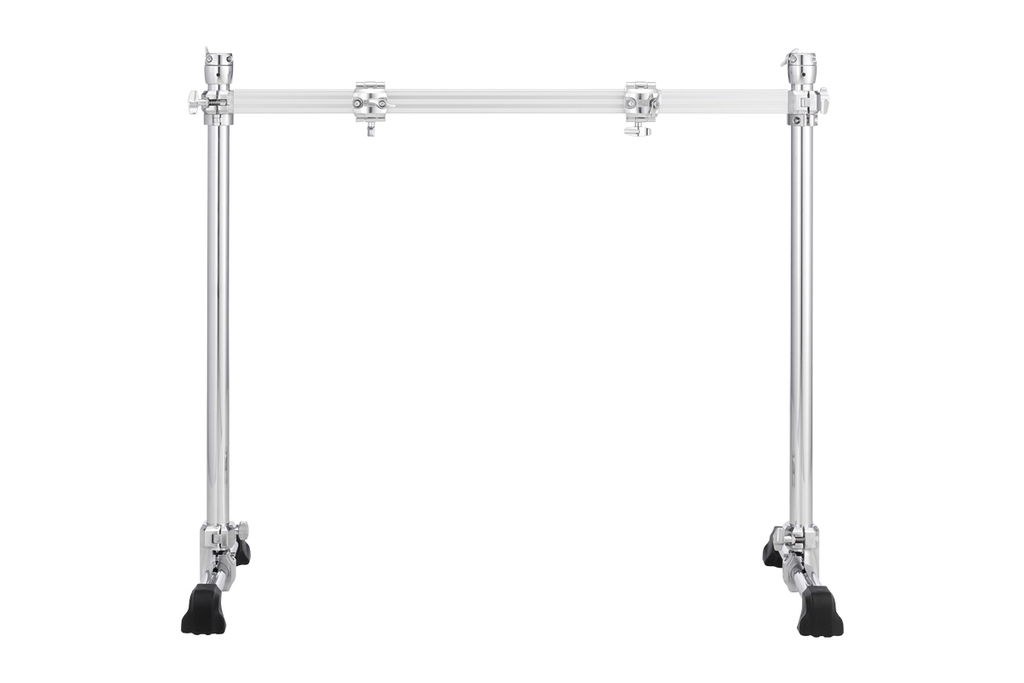

Pearl DR-511 Icon Drum Rack - Bridge Style

Supported by two round 1.5" T-Legs, the DR-511 Icon Single Drum Rack features a slip-free and height-adjustable square support rail, for securely suspending drums, cymbals, and other items via a variety of available PCX clamps

Added 7/8" mounting arms can be housed in the included PCL-100 adjustable clamps on each vertical support leg.

Exceptional for bridging items over bass drums, adding to an existing rack for added expandability, or as a single side-rack for multiple addition possibilities at varying heights.

The Icon Single straight rack is also compatible with Pearl's expanded library of clamps and accessories, extending the mounting possibilities to every area of the rack for the progressively-minded player.

MAIN SUPPORT RAIL
Brushed Aluminum, 40mm Square
MOUNTING CLAMPS
PCX-100 Clamps (x2)

Fits 1/2" to 1 1/8"

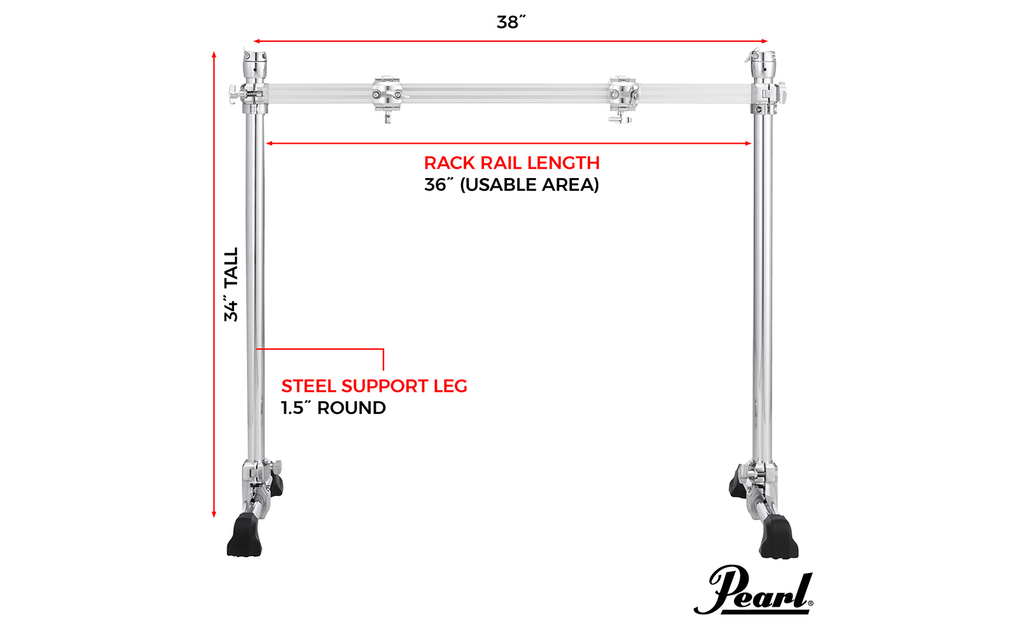

RACK RAIL LENGTH
38" (From Center of Right to Left Clamp)

36" (Usable Area)
RACK PIPE/LEG
Steel 1.5" / 3.8cm Diameter

34" / 86.5cm Height
SUPPORT FOOT
Rotating 1.5" Round w/TLJ-200 T-Clamp

(P-38475TA)
PIPE CLAMPS
PCL-100 (x2)
Accepts 7/8" Diameter Arms

• Slip-free and height-adjustable square support rail
• Exceptional for bridging items over bass drums
• Compatible with Pearl's extensive clamps library
• Brushed aluminium 40mm square main support rail
• Includes PCL-100 adjustable clamps for versatility
• Rotating round support foot with TLJ-200 T-Clamp
• Steel 1.5 inch diameter rack pipe for stability
