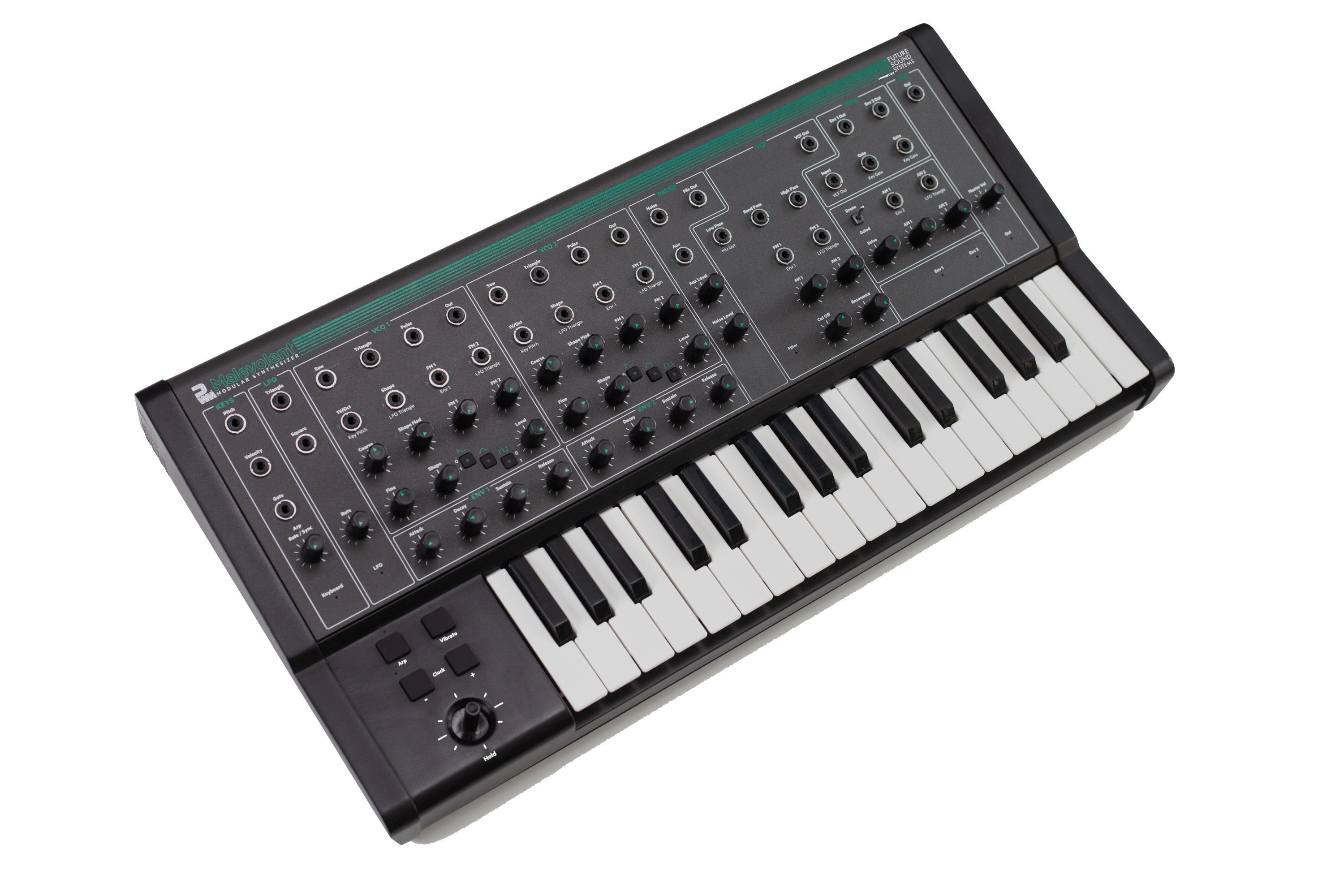

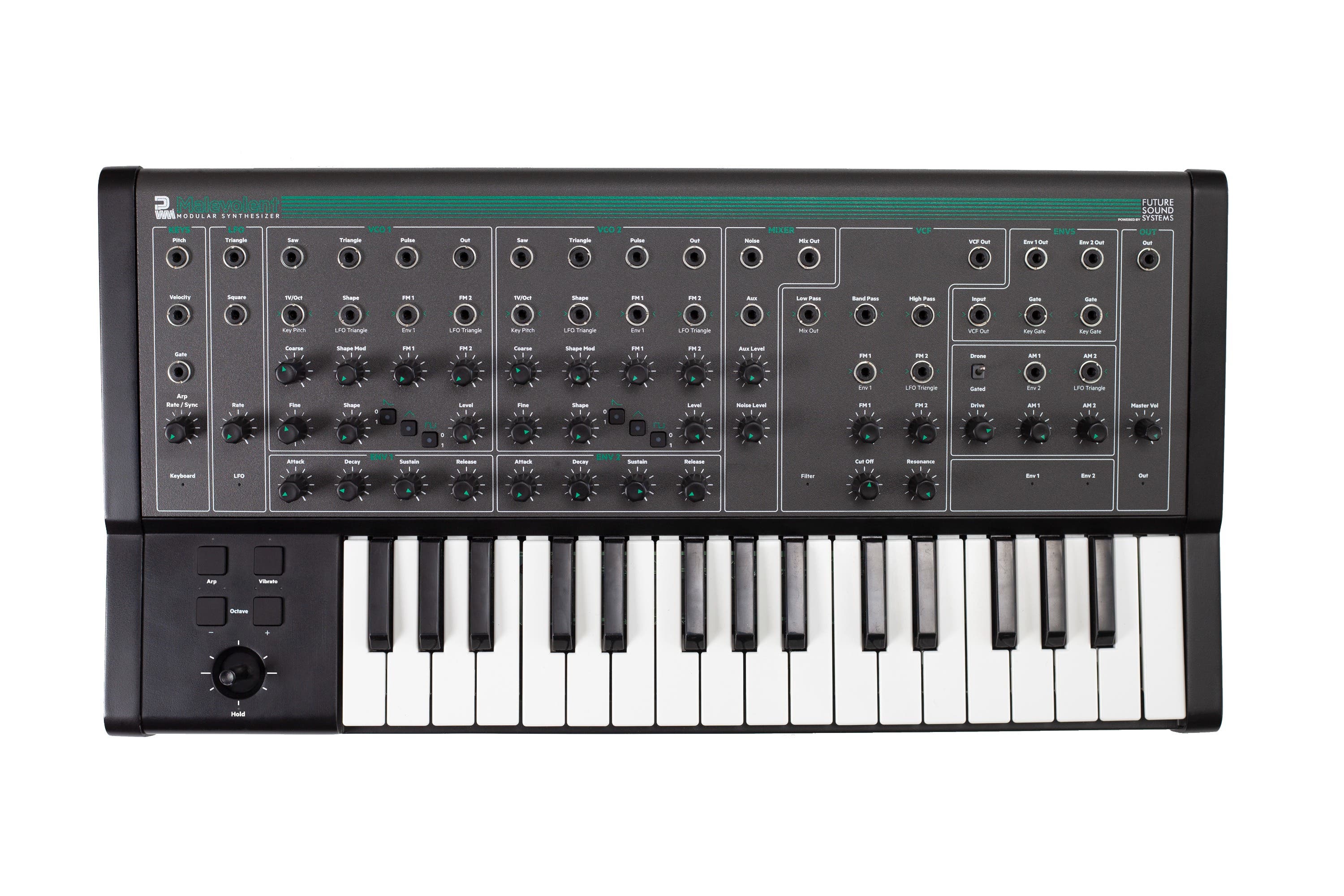

PWM Malevolent Semi-Modular Analog Mono Synth

Pure Analogue signal path designed by Future Sound Systems

* Pure VCOs
* 19 Outputs and 19 Inputs for 3.5mm mono jack cable patching
* Normalised signal path for immediate sound Malevolence

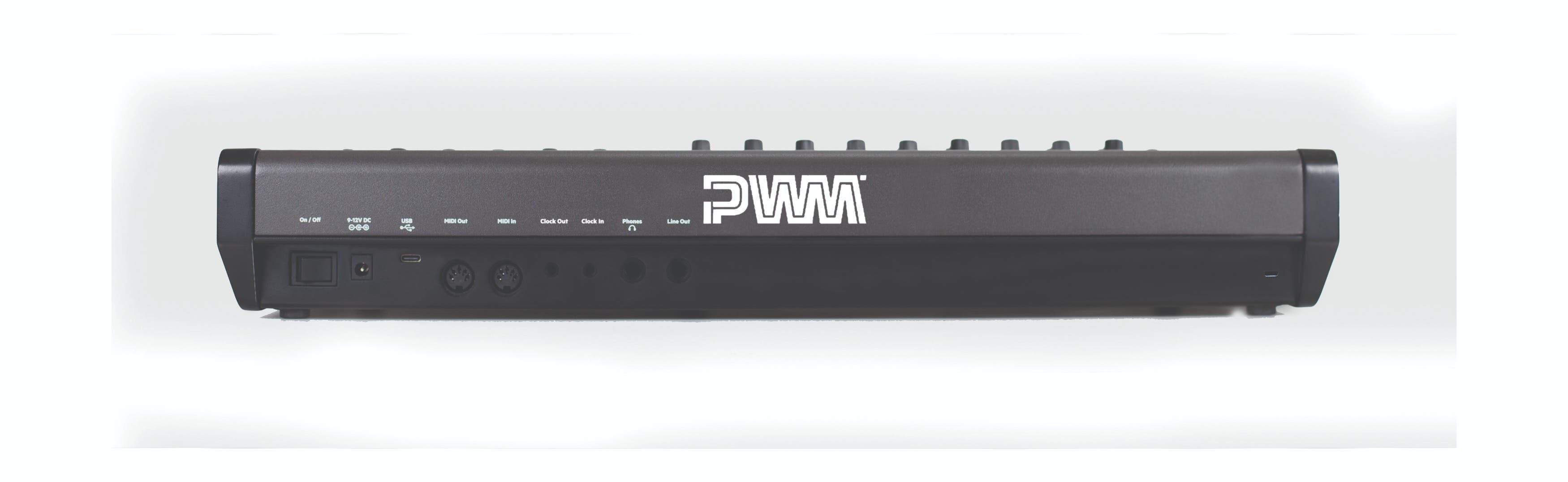

* Additional rear panel line out
* Additional headphone out

2 Voltage Controlled Oscillators

* Saw / Triangle / Pulse outputs plus Mix for each oscillator
* 1V/Oct pitch control input
* Shape control / pulse width modulation input
* 2x Frequency Modulation inputs
* Coarse / Fine tune control
* Shape mod amount control
* FM1 and 2 mod amount controls
* Shape control
* Selectable waveforms for the mix output
* Individual osc level control

LFO (Low Frequency Oscillator)

* Triangle / Square wave outputs
* Rate control

* 2x Envelopes
* Individual ADSR controls for each envelope
* Individual gate inputs
* Individual envelope outputs

Multi-mode 2 pole VCF (Voltage Controlled Filter)

* Low pass / Band pass / High Pass individual inputs
* 2x Frequency Modulation inputs with amount controls
* Filter cutoff
* Filter resonance

Mixer

* Noise w/level control
* Aux input w/level control

VCA (Voltage Controlled Amplifier) with overdrive control

* Compatible with Eurorack standard 1V/Oct gear

* Monophonic and patchable allowing individual pitch control of each VCO and gate control of each envelope

* USB bus-powered

* MIDI In / Out

* Headphone out

* Line out

* Analogue clock in & out

USB-MIDI to 1V/Oct CV & gate conversion

* All pitch and gate control is fully analogue
* Analogue clock In / Out

Multi-function Joystick control

* Left / right for pitch bend
* Performable portamento
* Performable vibrato
* This is in addition to the analogue LFO
* Latching hold mode

Arpeggiator

* 6 arpeggiator types
* Up, Down, Up/Down 1, Up/Down 2, Played & Random
* Auto clock sync
* Detects analogue / MIDI or USB-MIDI clock and synchronises the arpeggiator automatically
* Selectable sync rates when clock detected
* Rate / sync control
* Latch
* 6 Octave range
* Analogue / MIDI / USB-MIDI Clock output when arpeggiator is running

Keyboard Control

* 32 Velocity-sensitive mini-keys
* Octave shift +/- 4 octaves
* Pitch output
* Velocity output
* Gate output
* Local Off mode for DAW use

Includes:

5 Patch cables
Power Supply (9V 600mA)
USB C lead
Getting Started Guide

• Pure analogue signal path for authentic sound
• 19 outputs and inputs for versatile patching
• Two voltage-controlled oscillators with mix control
• LFO offers triangle and square wave outputs
• Multi-mode filter with low, band, and high pass
• Joystick control for pitch bend and vibrato
• Arpeggiator with six types and auto clock sync
• 32 velocity-sensitive mini-keys with octave shift
