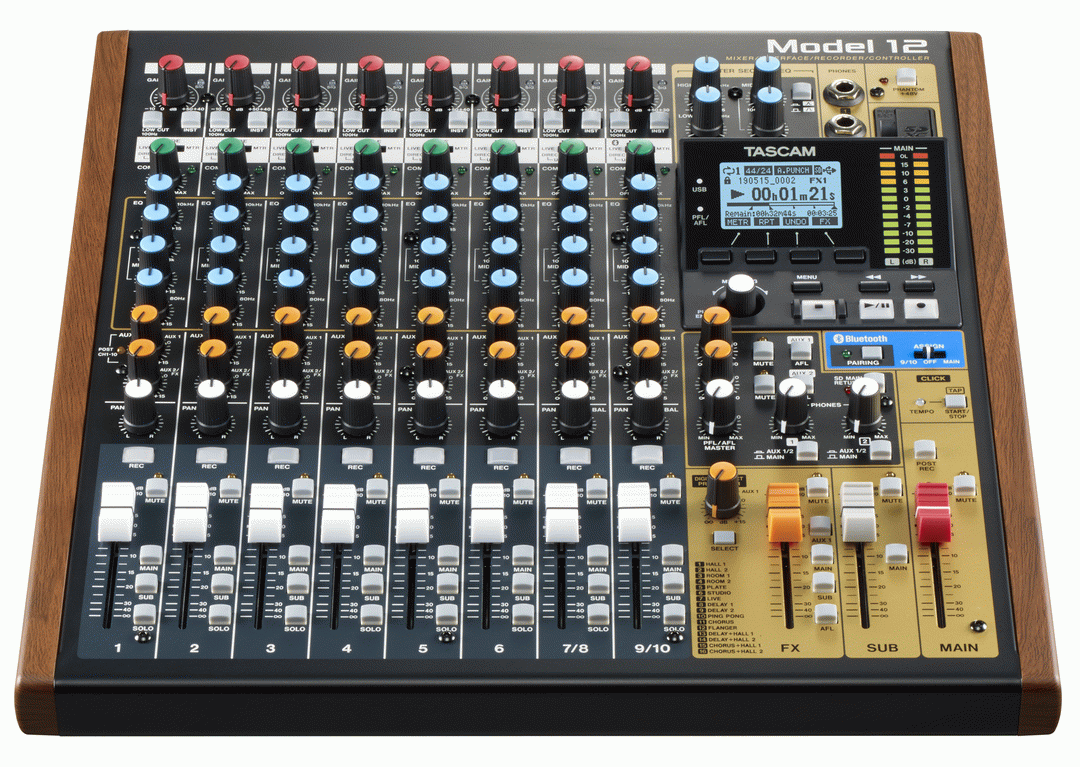

Tascam Model-12 Digital Mixer / Multitrack Recorder

TASCAM's Model 12 is a compact all-in-one integrated mixer designed for music and multimedia creators, songwriters and performers. Features include TASCAM's critically acclaimed multi-track recorder, USB audio/MIDI interface, DAW control functions, and unique podcasting capability including mix-minus and smartphone inputs.

12-Track Multi-Track Recording
Integrated Bluetooth
Supports simple DAW control (HUI/MCU)
12 in/10 Out USB Audio Interface

The TASCAM Model 12 is a powerful production workstation and DAW control surface for music producers, content creators, live performers, and podcasters. At its core, Model 12 is a high-quality compact mixer, complete with premium Ultra HDDA (High Definition Discrete Architecture) microphone preamps, compressor and 3-band EQ on each channel, 3-band mastering EQ, and console-like routing capabilities. Beyond your DAW, Model 12 is also a standalone recorder that's ready to capture studio-quality multitrack audio directly to SD card. Connect to your computer and Model 12 becomes a powerful audio interface with comprehensive DAW control capabilities, giving you a tactile, hands-on mixing experience while you leave your mouse aside. Live performers will appreciate Model 12's built-in effects and routing flexibility, while podcasters will find crucial functions like mix-minus and a dedicated smartphone input. Whether you use it as a USB audio interface, DAW controller, standalone recorder, or as a standard mixing board, the TASCAM Model 12 is equipped to support your creative process.

Key Features

10 inputs (8 Monaural XLR mic inputs [+48V support]/10 TRS line inputs) and Bluetooth® 5.0 input, 3.5mm (1/8") TRRS input (for Smartphone), Smartphone input with mix-minus function
Recording function with punch in/out support allows direct SD card 12 track recording / 10 track playback
12 in / 10 out USB audio interface function (USB Type-C connector)
TASCAM Ultra HDDA Mic Pre-amp technology (CH 1 thru 6)
Supports simple DAW control (HUI/MCU protocol emulation)
TASCAM FX equipped
Equipped with MIDI IN/OUT connectors, USB-MIDI interface function, and MTC output/MIDI clock output with SPP support


Other Features

Dual headphone output with individual volume and source selection
1-knob compressor and 3 band EQ installed on all input modules
Equipped with 60mm faders
Stereo output to MAIN L-R and SUB L-R, monaural send to AUX1 and AUX2
Adjustable audio delay for MAIN mixed USB output and analog MAIN output (0 - 2000ms) (Added in V1.20)
Recorded tracks can be swapped with other tracks.
Selectable PFL/AFL modes and the in-place solo (SIP)
Dual footswitch (TRS connector) function allows assignment of transport, FX, etc.
Click output with TAP TEMPO support
Built-in metronome function

Included Items
Model 12 x1
AC adapter x1
Power cord for AC adapter x1
USB cable (1m) x1
TRRS cable (1m) x1
Owner's Manual
